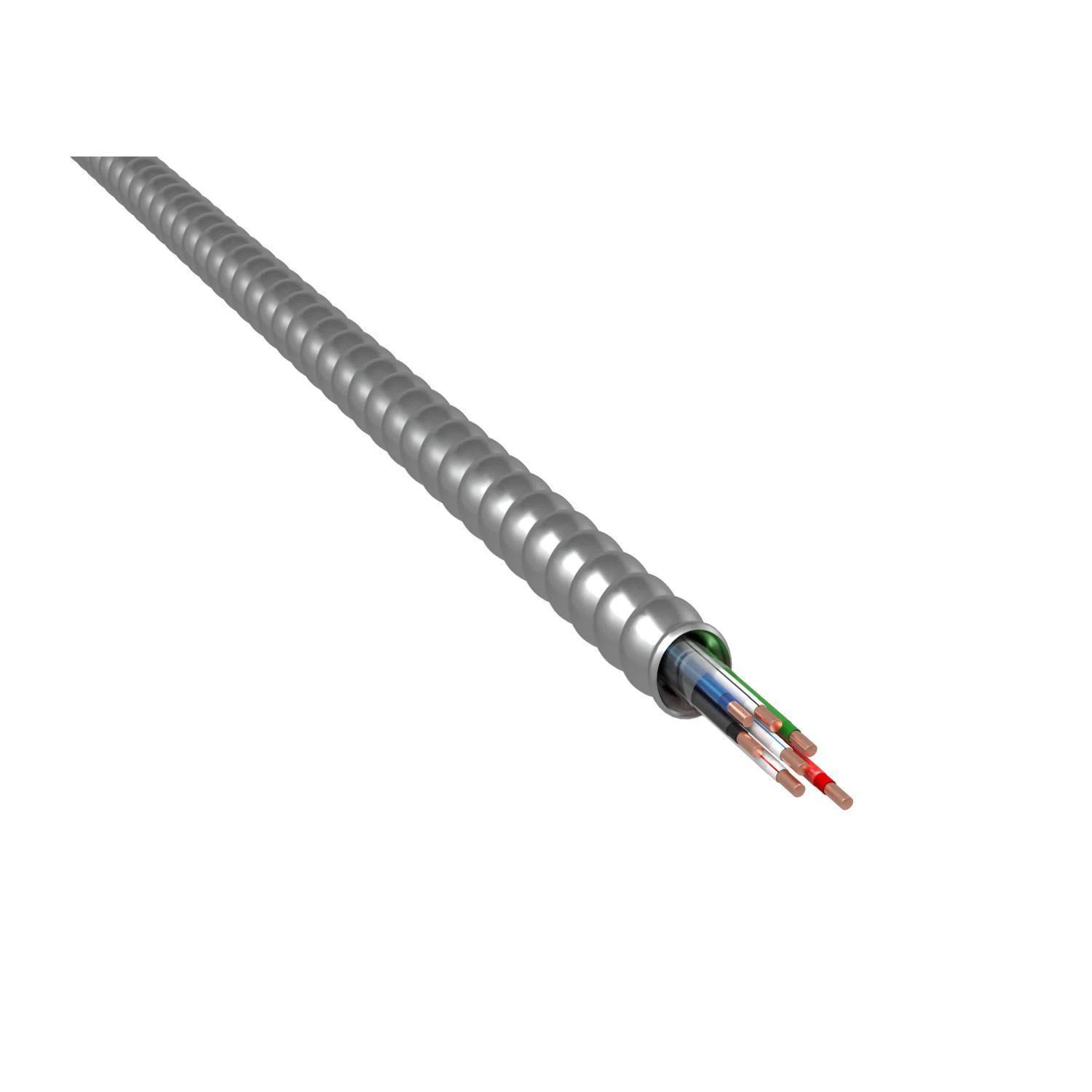

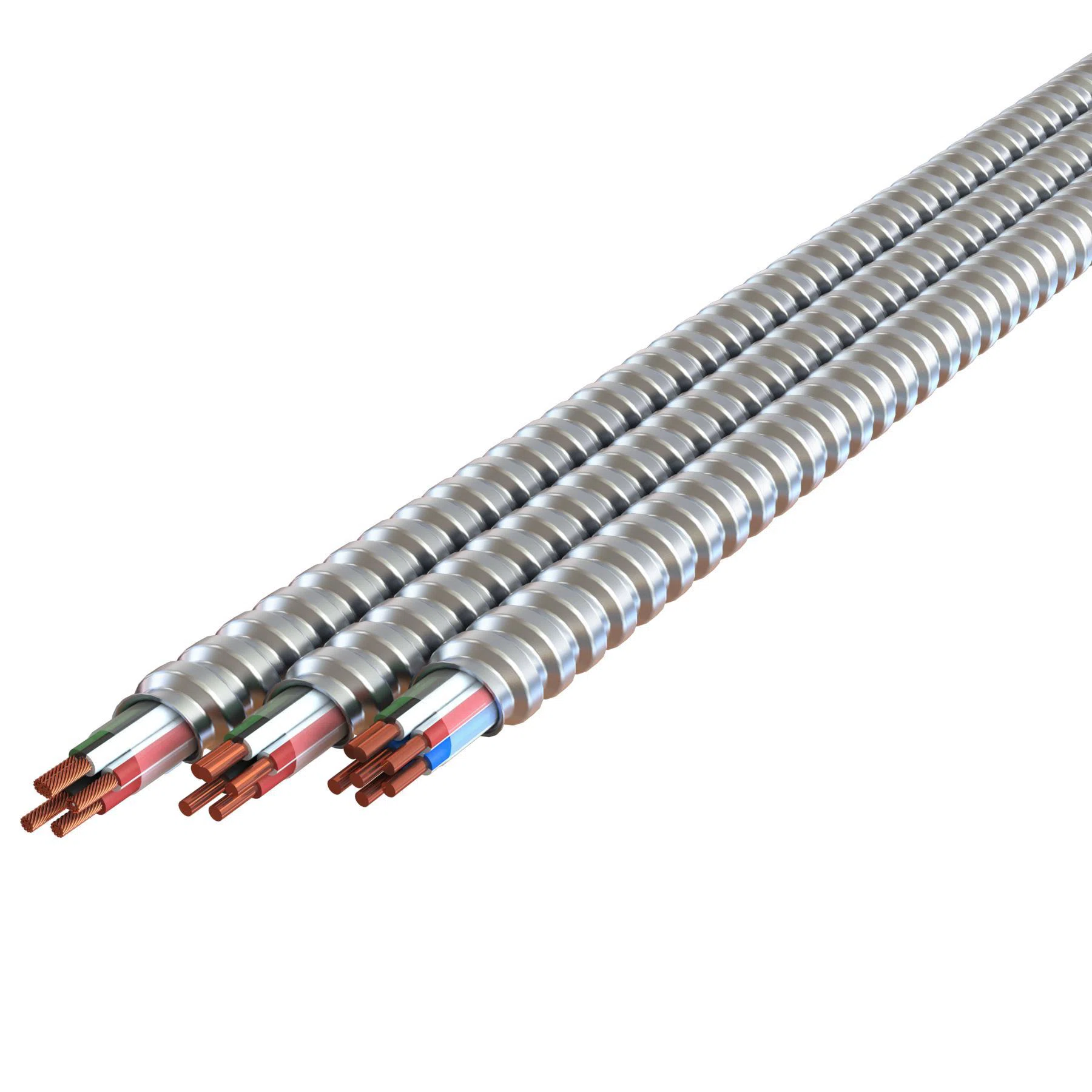

3607-60-700 MC-Plus Lite Type MC Interlocked Aluminum Strip Armor Neutral Per Phase Cable With 10-1 AWG Grounding, 10-2 AWG Neutral, 10-2 AWG Phase Conductor, Reel Packaging, 600 V, 10 AWG Solid Copper Conductor, 1000 ft L
- MFR:
- Atkore
- MFR #:
- 3607-60-700
- UPC:
- 077680347077
- Item #:
- 1361753
3607-60-700 MC-Plus Lite Type MC Interlocked Aluminum Strip Armor Neutral Per Phase Cable With 10-1 AWG Grounding, 10-2 AWG Neutral, 10-2 AWG Phase Conductor, Reel Packaging, 600 V, 10 AWG Solid Copper Conductor, 1000 ft L
- MFR #:
- 3607-60-700
- UPC:
- 077680347077
- Item #:
- 1361753
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Atkore's MC Plus is the modern-day Type MC homerun cable that incorporates a neutral per-phase design ideal for multi-wire branch circuit applications and addresses harmonics distortions in power distribution systems. MC Plus's neutral per-phase design eliminates shared neutrals and the risk of overloading. This design also helps quickly identify faulty circuits, reducing outages. The MC Plus cable offers improved safety and efficiency in electrical systems for a range of applications.
Manuals and Documentation
Features
- Cable System
- Technically equivalent and economically superior to traditional raceway and wire installations
- Eliminates shared neutrals and addresses harmonic distortions in power distribution systems
- Neutral per phase decreases the time it takes to identify a faulty circuit because only the affected single-phase breaker will trip thus, allowing the rest of the electrical systems to continue to operate and reducing the length of unnecessary outages
- Redundant Grounding
- Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request
| Manufacturer Part Number | 3607-60-700 |
| Brand | AFC Cable Systems |
| Manufacturer | Atkore |
| UPC | 077680347077 |
| Country Of Origin | US |
| Conductor Size | 10 AWG |
| Conductor Type | Solid Copper |
| Insulation Material | THHN/THWN |
| Length | 1000 ft |
| Outside Diameter | 0.667 in |
| Temperature Rating | 90 deg C |
| Type | Type MC Interlocked Aluminum Strip Armor |
| Voltage Rating | 600 V |
| Alternative Part Number | 14864658 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | Federal Specification A-A-59544 | HUD Approved | National Electrical Code Articles 210.4(B)/230.43/300.22/330/392/396.10(A)/645 | OSHA Standard | UL 83/1479/1569/1581/2556/File Reference E80042/R14141 |
| Application | For power distribution systems from lighting, to devices and receptacles, branch circuit to computers and other electronic equipment and permitted use in dry locations |
| Packaging Type | Reel |
