Discontinued

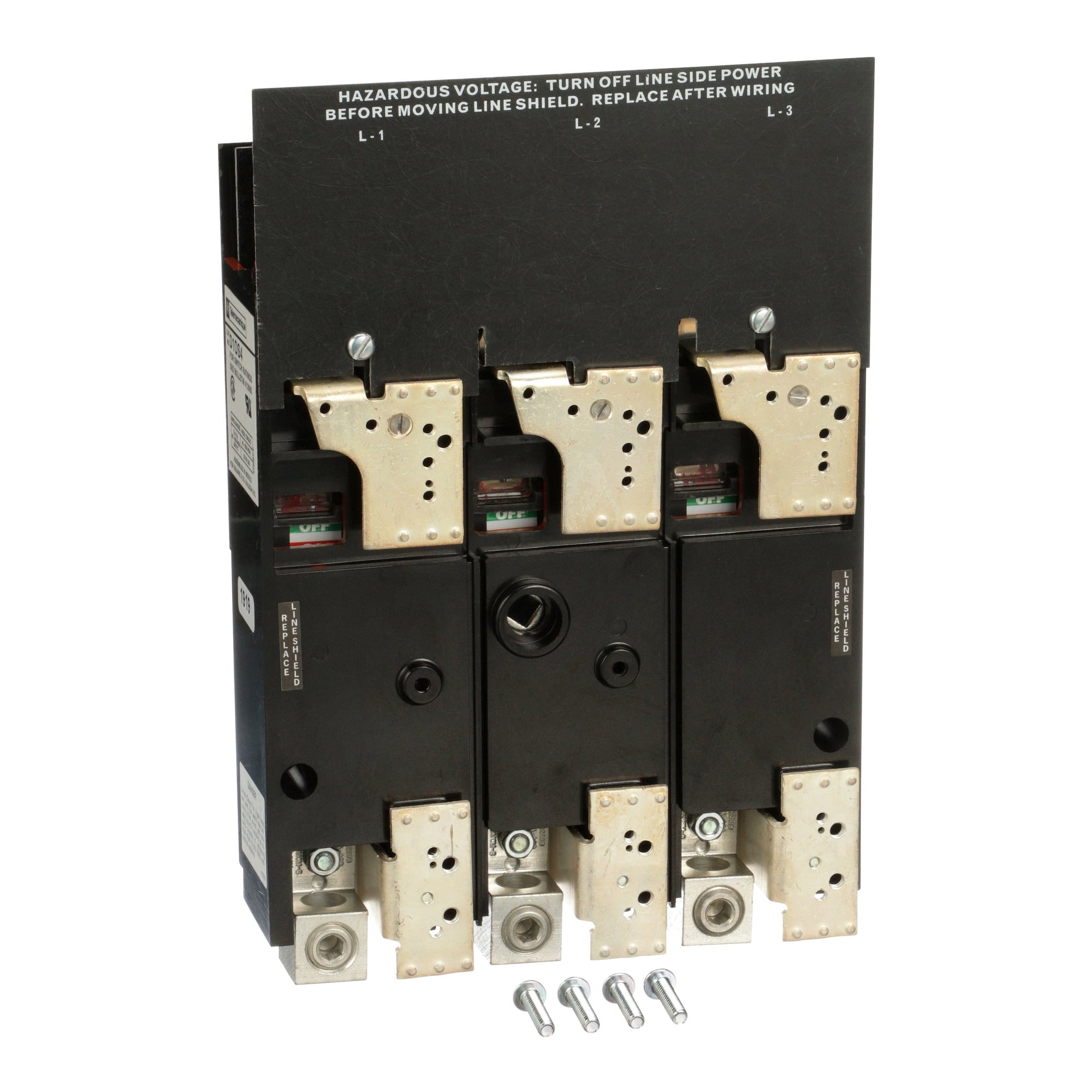

D10S4 Disconnect Switch With Visible ON/OFF Indicator, Auxiliary Contact, 600 V AC, 200 A, 25 hp, 50 hp, 100 hp, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- D10S4
- UPC:
- 785901118633
- Item #:
- 135809
Discontinued
D10S4 Disconnect Switch With Visible ON/OFF Indicator, Auxiliary Contact, 600 V AC, 200 A, 25 hp, 50 hp, 100 hp, 3 Poles
- MFR #:
- D10S4
- UPC:
- 785901118633
- Item #:
- 135809
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
The D10 disconnect switch is operated by a cast metal handle operator that is lockable in the Off position. This 200 A disconnect switch is designed to work with NEMA size 4 starters. This disconnect switch is without any fuse clips or shorting straps. Disconnect switch is without service entrance rating. Disconnect switch has horsepower ratings of 5 HP at 208 VAC, 10 HP at 240 VAC, 20 HP at 480 VAC and 25 HP at 600 VAC. Switch is UL component recognized and CSA certified.
Manuals and Documentation
| Catalog Number | D10S4 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty: 18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Actuator | D11 HANDLE OPERATOR (SOLD SEPARATELY) |
| Amperage Rating | 200 |
| Application | DISCONNECT SWITCH, 200A RATED NEMA SIZE 4 |
| Connection | DIRECT |
| Indicator | VISIBLE ON/OFF |
| Mounting | Door |
| Number of Poles | 3 |
| Special Features | Not service entrance rated |
| Standard | NEMA |
| UPC | 785901118633 |
| GTIN | 00785901118633 |
| Item Type | Disconnect Switch |
| Size | 4 |
| Voltage Rating | 600 V AC |
