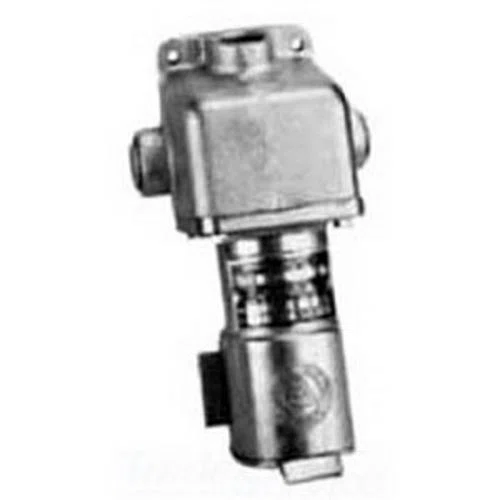

CES-6034 CES 3-Phase Feed Through Grounding Style 2 Explosionproof Receptacle With Mounting Box, 125 to 250 V AC, 60 A, 4 Poles, 3 Wires
- MFR:
- Emerson Electric
- MFR #:
- CES-6034
- UPC:
- 781381188159
- Item #:
- 135782
CES-6034 CES 3-Phase Feed Through Grounding Style 2 Explosionproof Receptacle With Mounting Box, 125 to 250 V AC, 60 A, 4 Poles, 3 Wires
- MFR #:
- CES-6034
- UPC:
- 781381188159
- Item #:
- 135782
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,301.12
each
CES and CESD Factory Sealed 30 and 60 A Pin and Sleeve Receptacles offer explosionproof protection for stationary or portable equipment used in hazardous locations. The Slide-Lok™ feature enforces a three-stage power insertion process to prevent unintended power up or accidental disconnect. Factory sealed and constructed of triple coated malleable iron with copperfree aluminum cover, these receptacles are designed for rugged and reliable performance.
Manuals and Documentation
Features
- Shell and extra pole grounding style 2
- Delayed action safety construction with Slide-Lok™ design
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Spring door keeps dust out of receptacle when plug is not in use
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Contacts have beryllium copper wire springs
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Fiberglass reinforced polyester insulating blocks
| Manufacturer Part Number | CES-6034 |
| Brand | Appleton® |
| Manufacturer | Emerson Electric |
| UPC | 781381188159 |
| Country Of Origin | MX |
| Amperage Rating | 60 A |
| Dimensions | 11.88 in H x 7.31 in W x 6.88 in D |
| Horsepower | 5 hp |
| Material | Copper Free Aluminum |
| Series | CES |
| Type | 3-Phase Feed Through Grounding Style 2 |
| Voltage Rating | 125 to 250 V AC |
| Alternative Part Number | 8326284 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | Limited |
| Standards Approvals | Class I, Division 1 And 2, Groups C, D; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E10784; CSA Standard: C22. No 30, C22.2 No. 159, C22.2 No 182.1 |
| Application | CPH Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor-Generator Sets, Air Conditioners, Compressors and Pumps Applications |
| Includes | (1) Vertical and (2) Horizontal Feed-Thru Hubs |
| Number Of Poles | 4 |
| Number Of Wires | 3 |
| Terminal Type | Pressure Wire |
