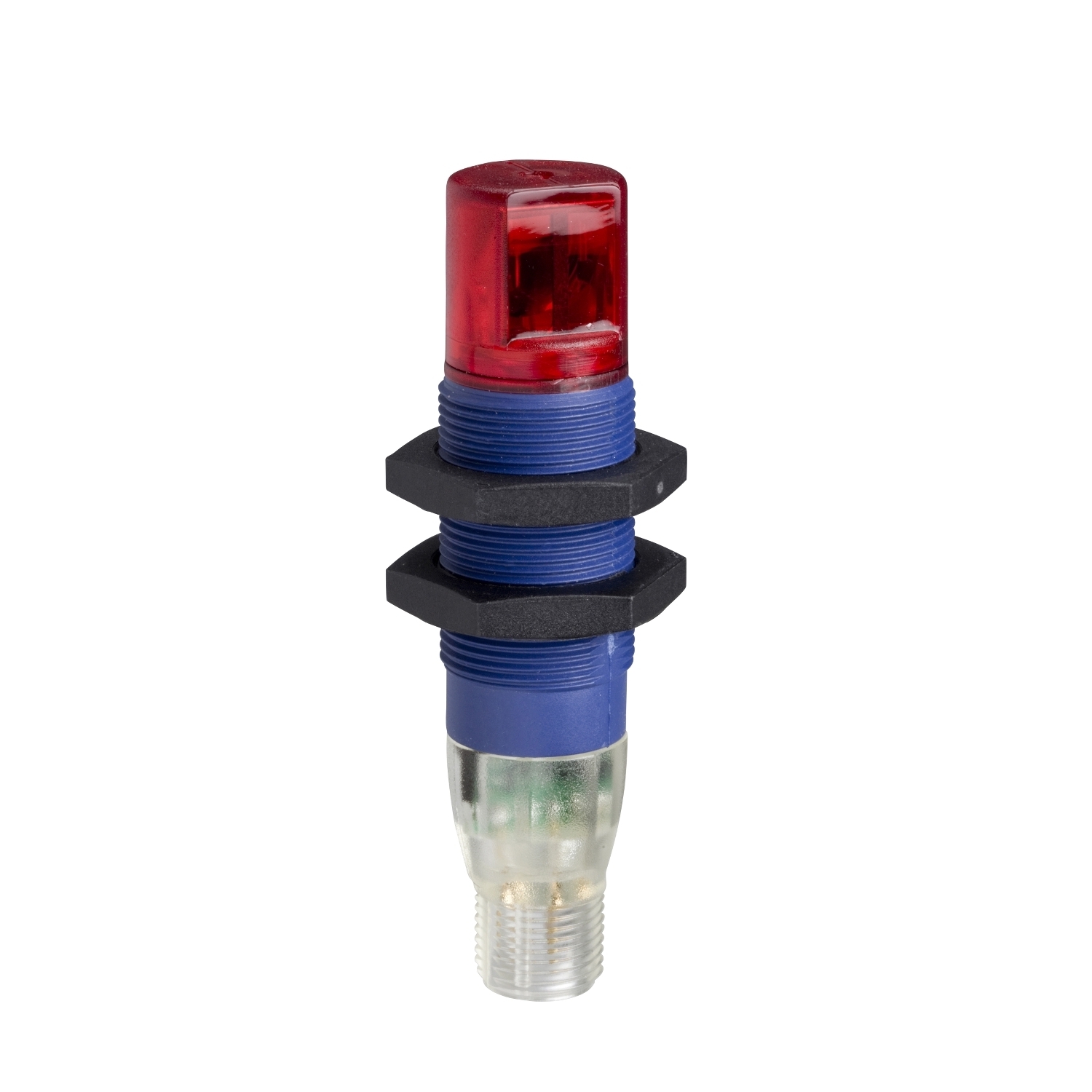

XUB9APAWM12 OsiSense XU XUB Series Single Mode Photoelectric Sensor, Cylindrical Shape, 2 m, Red Sensing Beam, 1 ms Response, PNP 1NO Output
- MFR:
- Telemecanique Sensors
- MFR #:
- XUB9APAWM12
- UPC:
- 785901791850
- Item #:
- 1355405
XUB9APAWM12 OsiSense XU XUB Series Single Mode Photoelectric Sensor, Cylindrical Shape, 2 m, Red Sensing Beam, 1 ms Response, PNP 1NO Output
- MFR #:
- XUB9APAWM12
- UPC:
- 785901791850
- Item #:
- 1355405
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$129.68
each
This photo-electric sensor is part of the XU range, single mode function. It is a design 18, plastic sensor, polarised reflex system with a 2m sensing distance. This sensor features an M12 connector, with the line of sight 90 to case axis. Three-wire DC, solid-state output, NO function, PNP output.
Manuals and Documentation
| Catalog Number | XUB9APAWM12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | - |
| Connection | 1 male connector M12, 4 pins |
| Enclosure | IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,PBT |
| Operating Cycles | <= 500 Hz |
| Output | PNP;1 NO;Discrete;Solid state |
| Sensing Range | 2-2 M POLARISED REFLEX NEED REFLECTOR XUZC50,> 3.28...16.4 FT (> 1...5 M) |
| Special Features | 1 LED yellow)output state |
| Standard | IP67 DOUBLE INSULATION IEC 60529-IP65 DOUBLE INSULATION IEC 60529-IP69K DOUBLE INSULATION DIN 40050,UL-CSA-CE |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=873108&lang=en-us |
| UPC | 785901791850 |
| GTIN | 03389110158663 |
| Item Type | General purpose single mode;Polarised reflex;Cylindrical M18;Photo-electric sensor |
| Size | 0.71 |
| Operating Temperature | -25-55 A Degrees C |
| Voltage Rating | 12...24 V DC reverse polarity protection |
