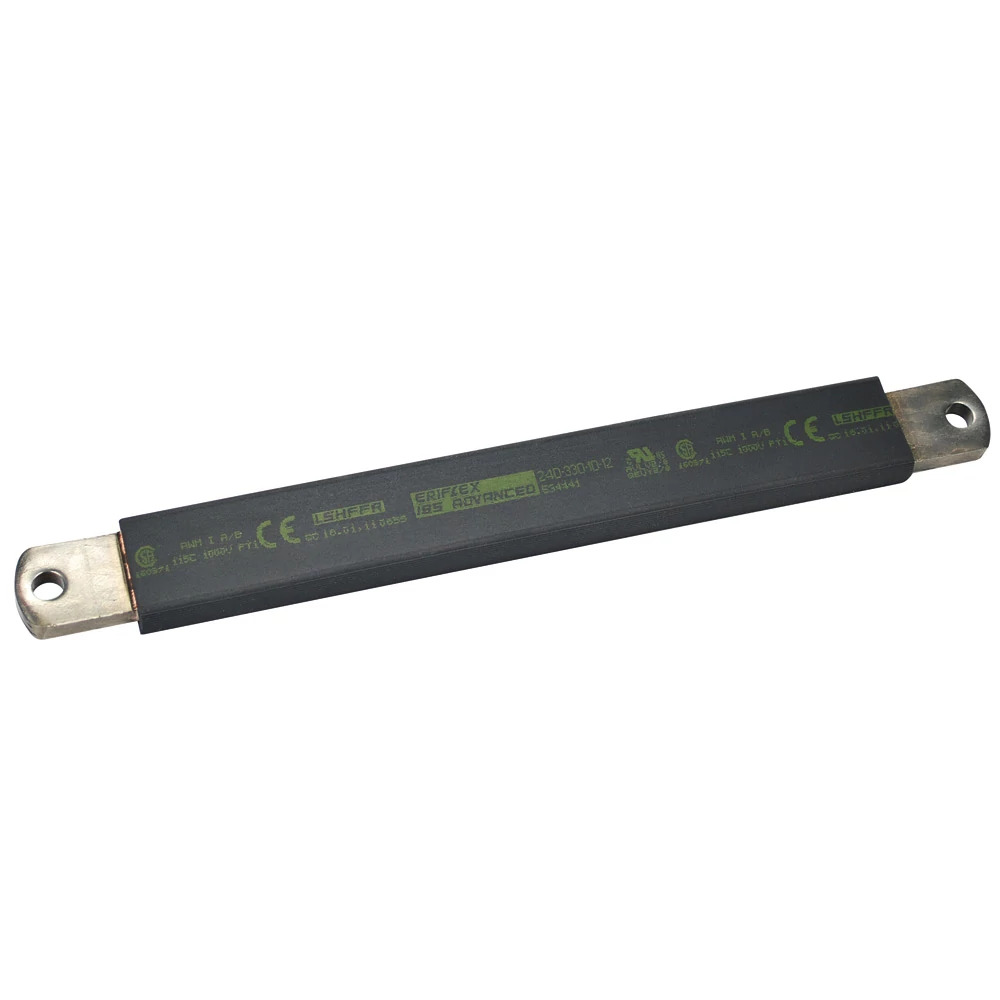

IBSBADV240-1030 IBSB Advanced Insulated Braided Conductor, 473.65 kcmil, 0.41 in, 0.49 in Mounting Hole, Copper/Thermoplastic Elastomer, Tin Plated
- MFR:
- nVent
- MFR #:
- 534446
- UPC:
- 782856961178
- Item #:
- 1351238
IBSBADV240-1030 IBSB Advanced Insulated Braided Conductor, 473.65 kcmil, 0.41 in, 0.49 in Mounting Hole, Copper/Thermoplastic Elastomer, Tin Plated
- MFR #:
- 534446
- UPC:
- 782856961178
- Item #:
- 1351238
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$716.60
each
IBS/IBSB Advanced Insulated Braided Conductor, Halogen Free is the ideal ready-to-install flexible wire replacement solution that is specifically designed for connections to all molded case circuit breakers, including the most compact breakers on the market. IBS/IBSB Advanced connects to the front access terminals of the breakers without any additional accessories, such as angular connectors, spreaders, ring terminal connectors or extenders. IBS/IBSB Advanced is available in cross sections of 25 to 240 mm (49.34 to 273.65 kcmil), lengths from 230 to 1,030 mm (9.06" to 40.55"), and 80 to 700 A.
Manuals and Documentation
| Catalog Number | 534446 |
| Manufacturer | nVent |
| Brand | nVent ERIFLEX |
| Country of Origin | France |
| Made in USA | No |
| Application | Power Connections |
| Finish | Bare |
| UPC | 782856961178 |
| GTIN | 00782856961178 |
| Item Type | Flexible Power Braids and Shunts |
| Length | 1,030-1,030 |
