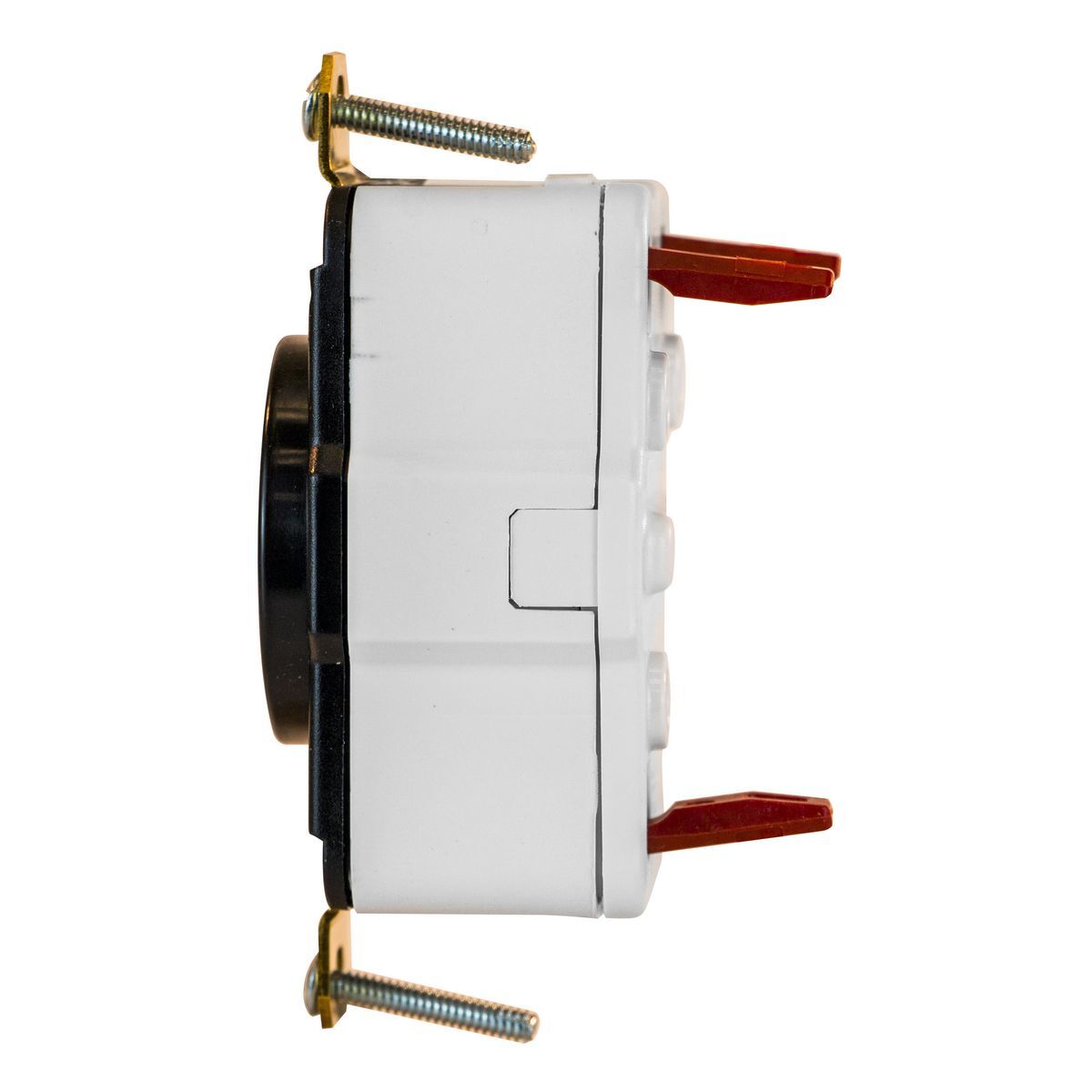

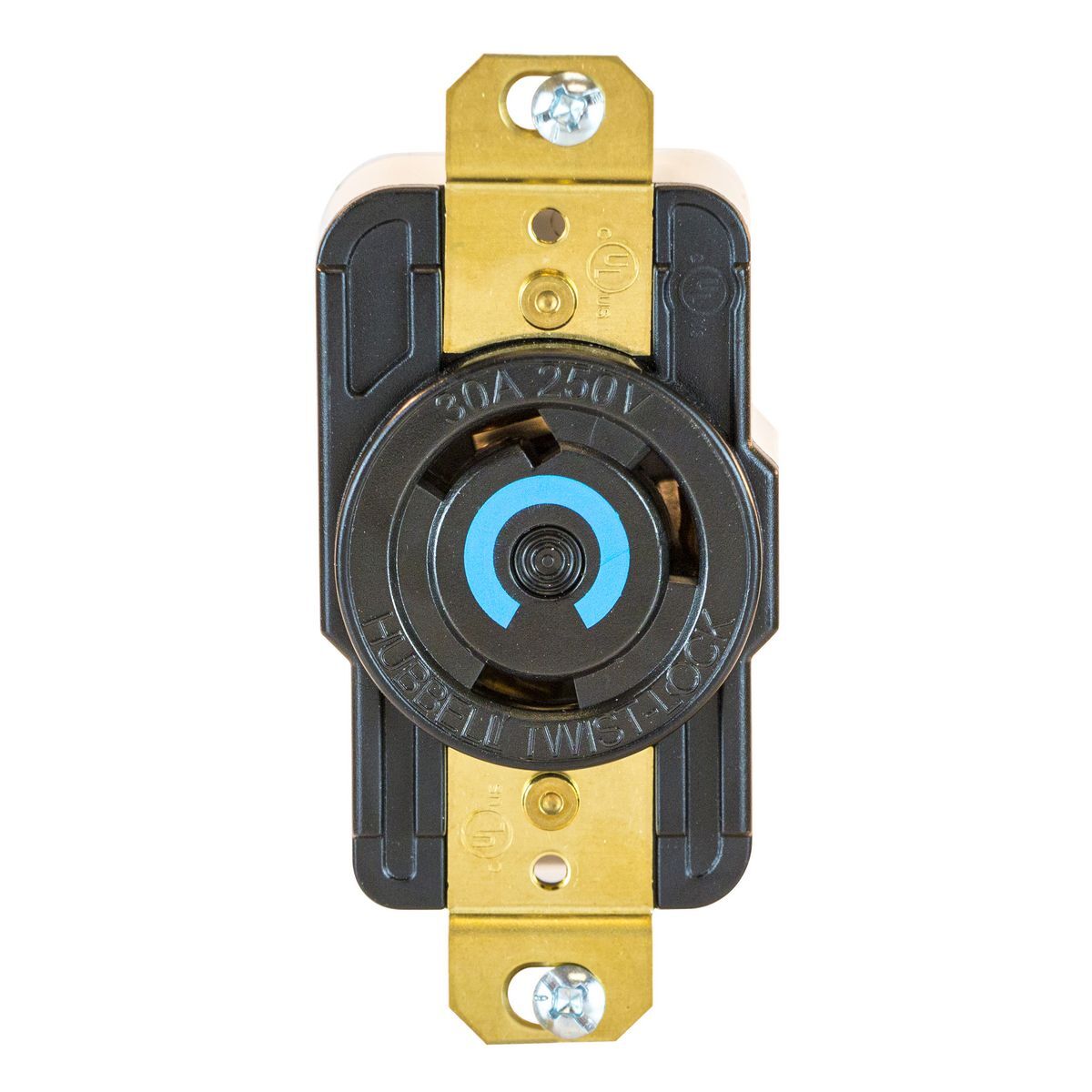

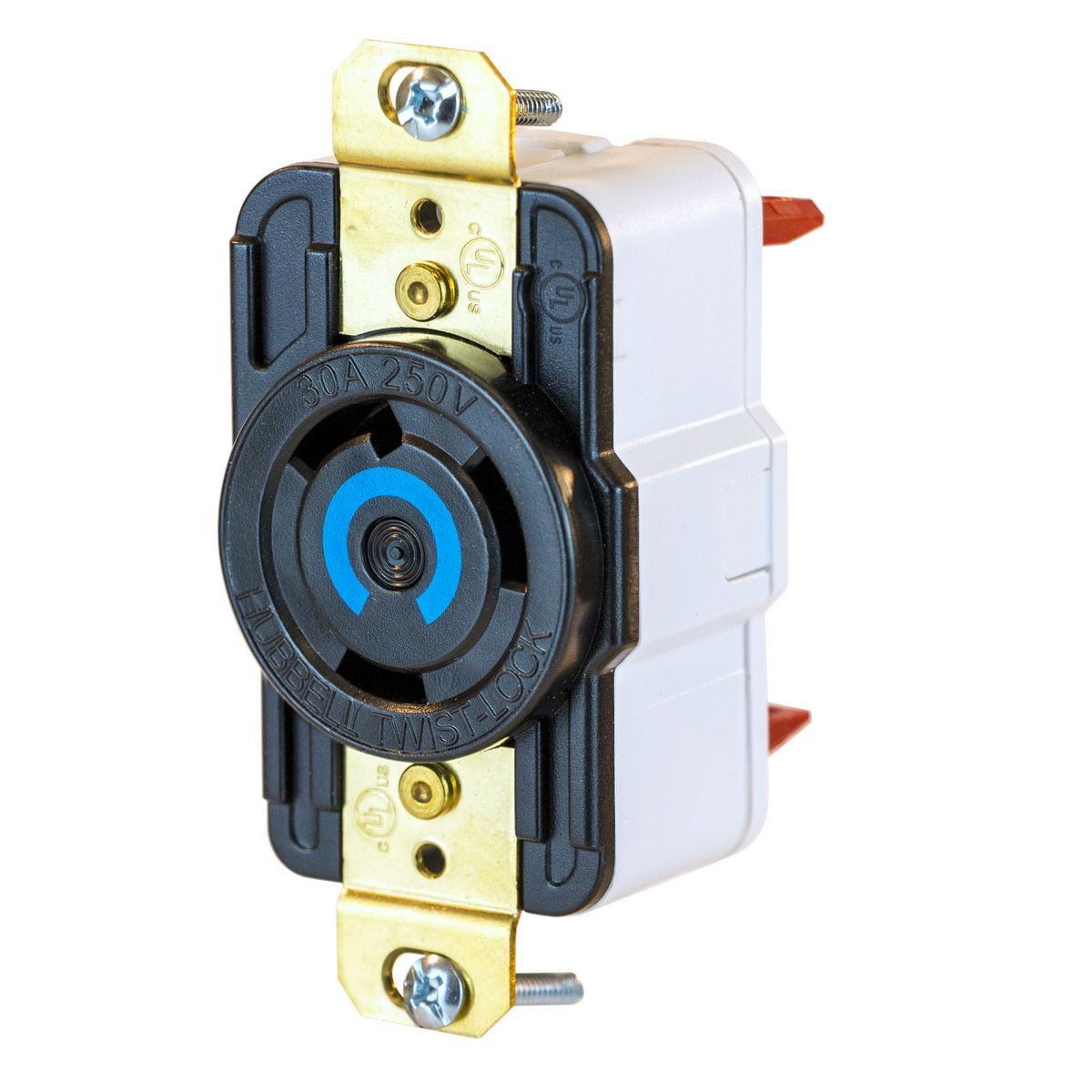

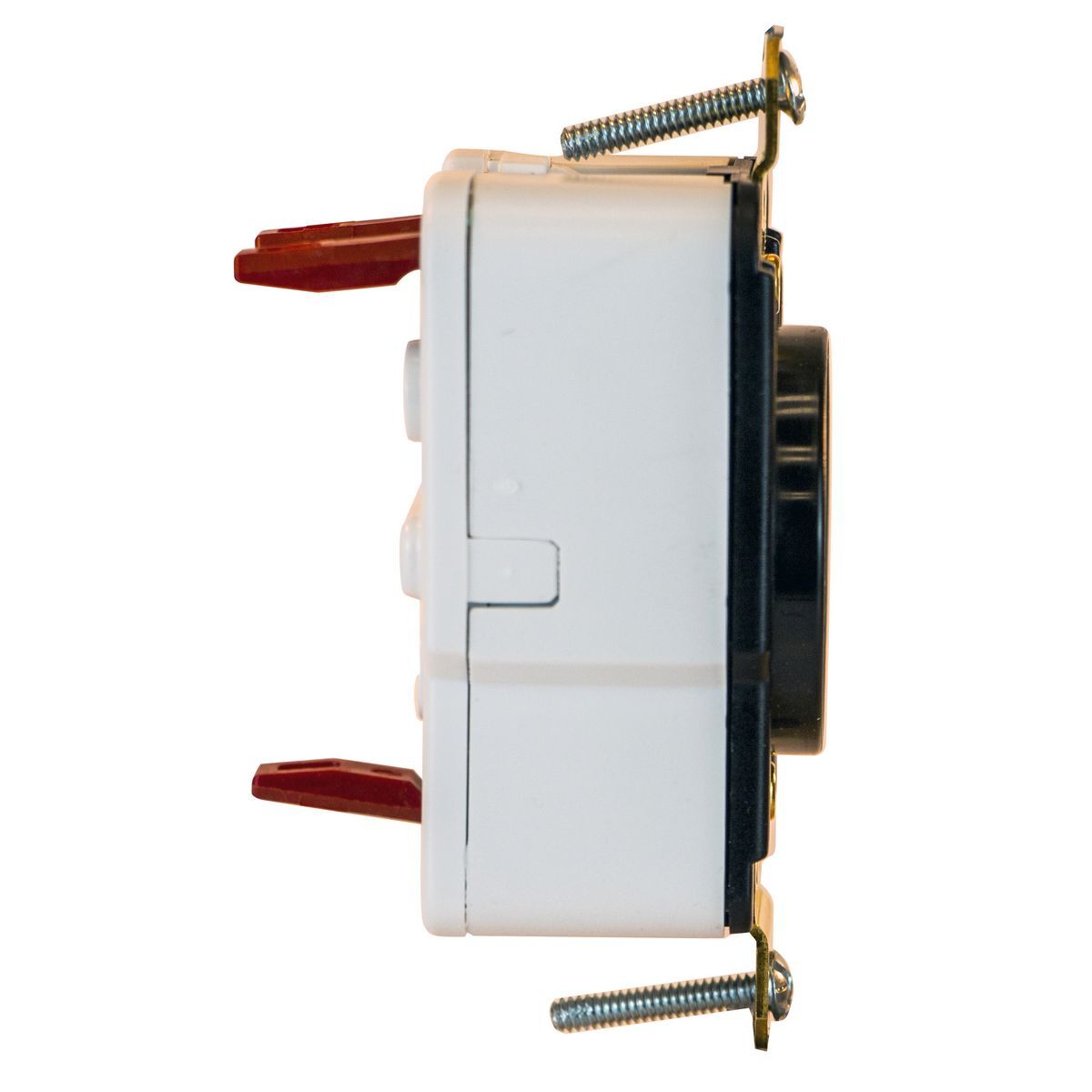

Catalog Number HBL2620ST
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Application Heavy Duty Industrial
Color Black
Connection Spring Termination
Material Nylon
Mounting Screw
NEMA Rating 6
Number of Poles 2
Number of Wires 3
Phase 1
Special Features Twist-Lock Receptacle with Spring Termination
Standard UL Listed To UL 498;CSA Certified to Specification C22.2 No. 42
UPC 783585569574
GTIN 00783585569574
Size Standard Sized Product
Environmental Conditions Indoor Dry unless protected by additional means
Temperature Rating Maximum Continuous 75 Degrees C; Minimum -40 Degrees C (w/o impact)
Voltage Rating 250
Wattage 7,500 W
Wire Size 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded)
