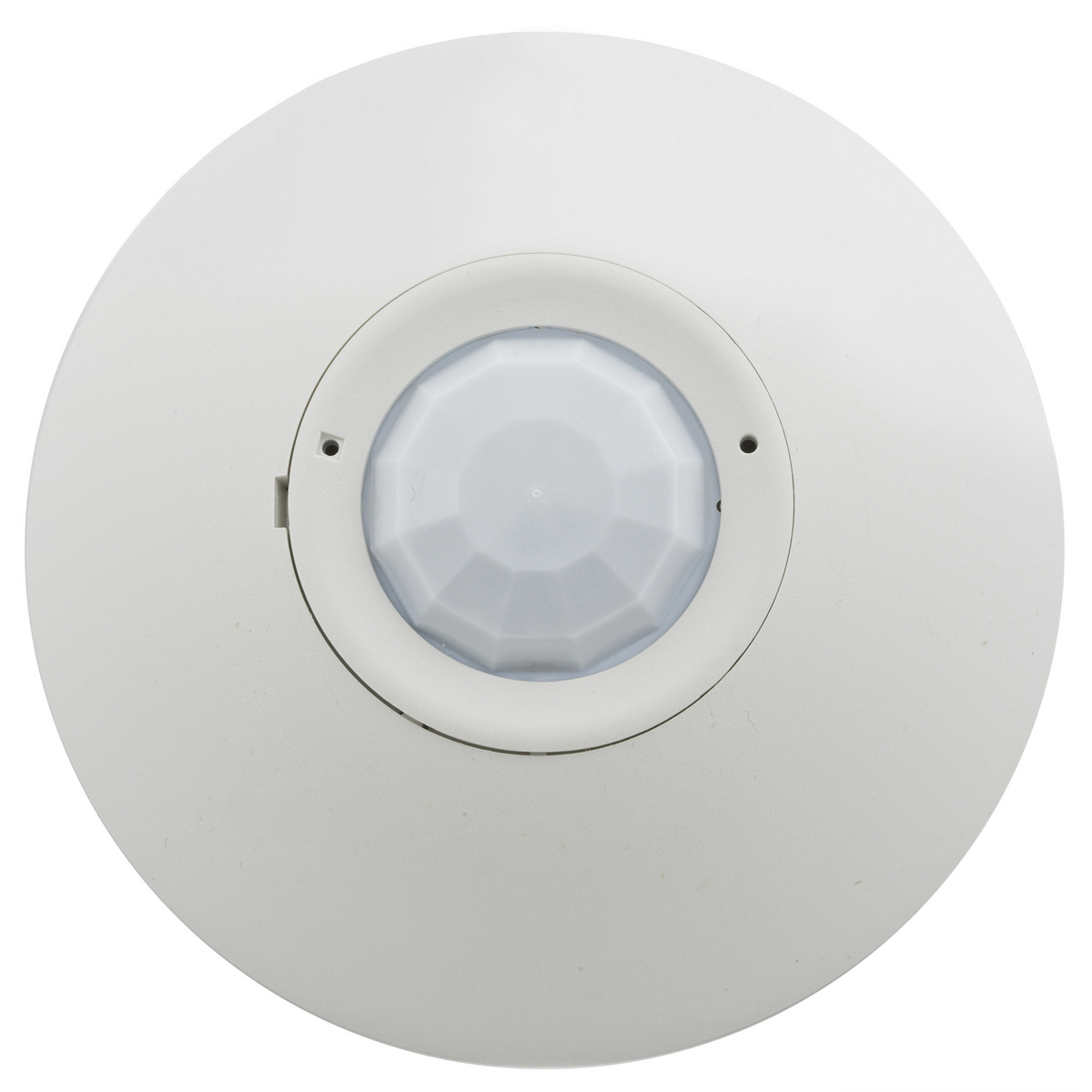

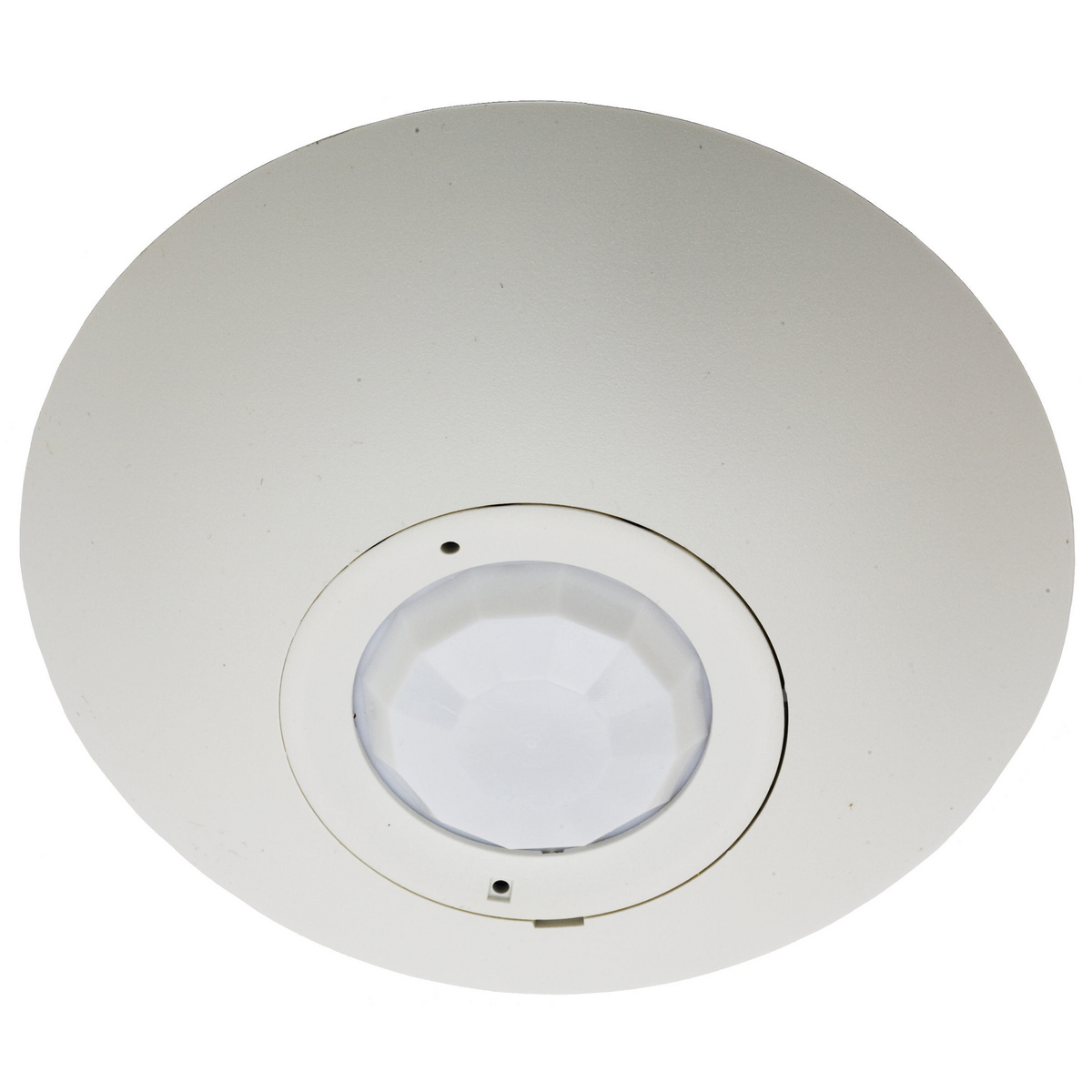

ATP1500C Adaptive Technology Occupancy Sensor, 24 V DC, Passive Infrared Sensor, 1500 sq-ft Coverage, 360 deg Viewing
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- ATP1500C
- UPC:
- 783585392530
- Item #:
- 134823
ATP1500C Adaptive Technology Occupancy Sensor, 24 V DC, Passive Infrared Sensor, 1500 sq-ft Coverage, 360 deg Viewing
- MFR #:
- ATP1500C
- UPC:
- 783585392530
- Item #:
- 134823
Availability
| Location | Available Qty |
|---|---|
| Available | 18 ea |
$246.15
each
Standard Passive Infrared Technology requires a clear, unobstructed line of sight for detection, because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones. Movement across zones is interpreted as occupancy. Excellent for small room control.
Manuals and Documentation
| Catalog Number | ATP1500C |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Application | Compatible with most LED and CFL |
| Color | White |
| Connector | Wire Leads |
| Indicator | PIR= Red LED |
| Mounting | Ceiling |
| Operating Cycles | 6,000 Cycles Minimum |
| Sensing Range | 8 to 12 Feet Mounting Height |
| Sensitivity | Adaptive 0 to 100% |
| Sensor | Adaptive Passive Infrared |
| Special Features | Standard Product |
| Standard | ASHRAE 90.1 Compliant;cULus Listed To UL244A |
| Supply Voltage | 24V DC From Control Unit |
| UPC | 783585392530 |
| GTIN | 00783585392530 |
| Item Type | Sensors |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C) |
| Target Size | People in |
| Cross Reference Products | ODC0S-I1W, OSC15-I0W |
