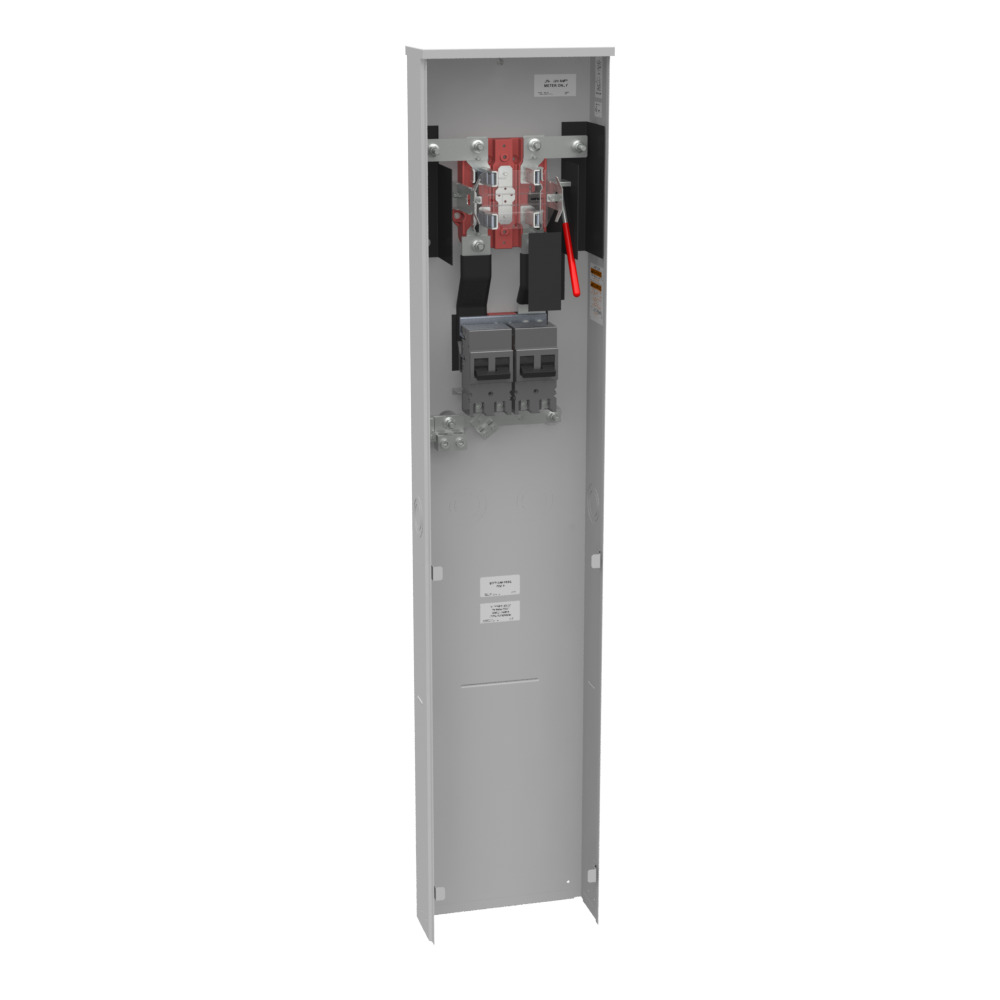

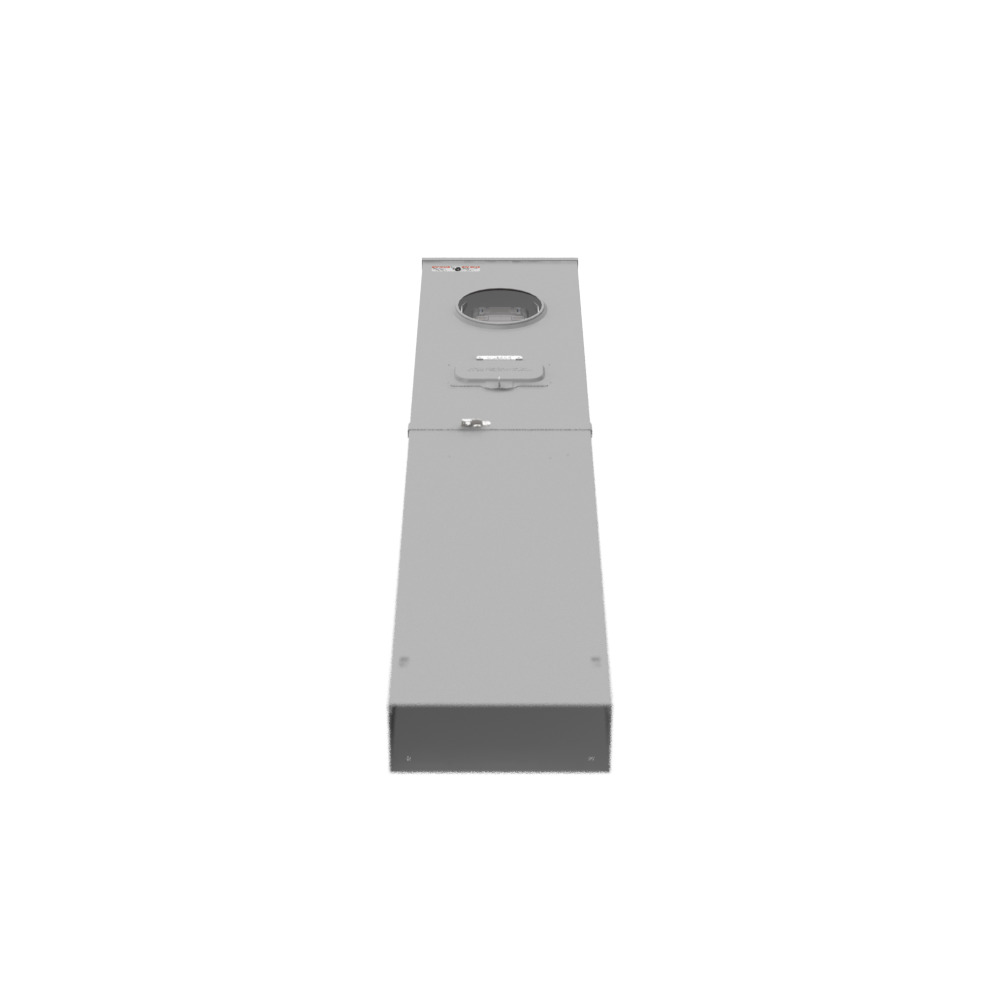

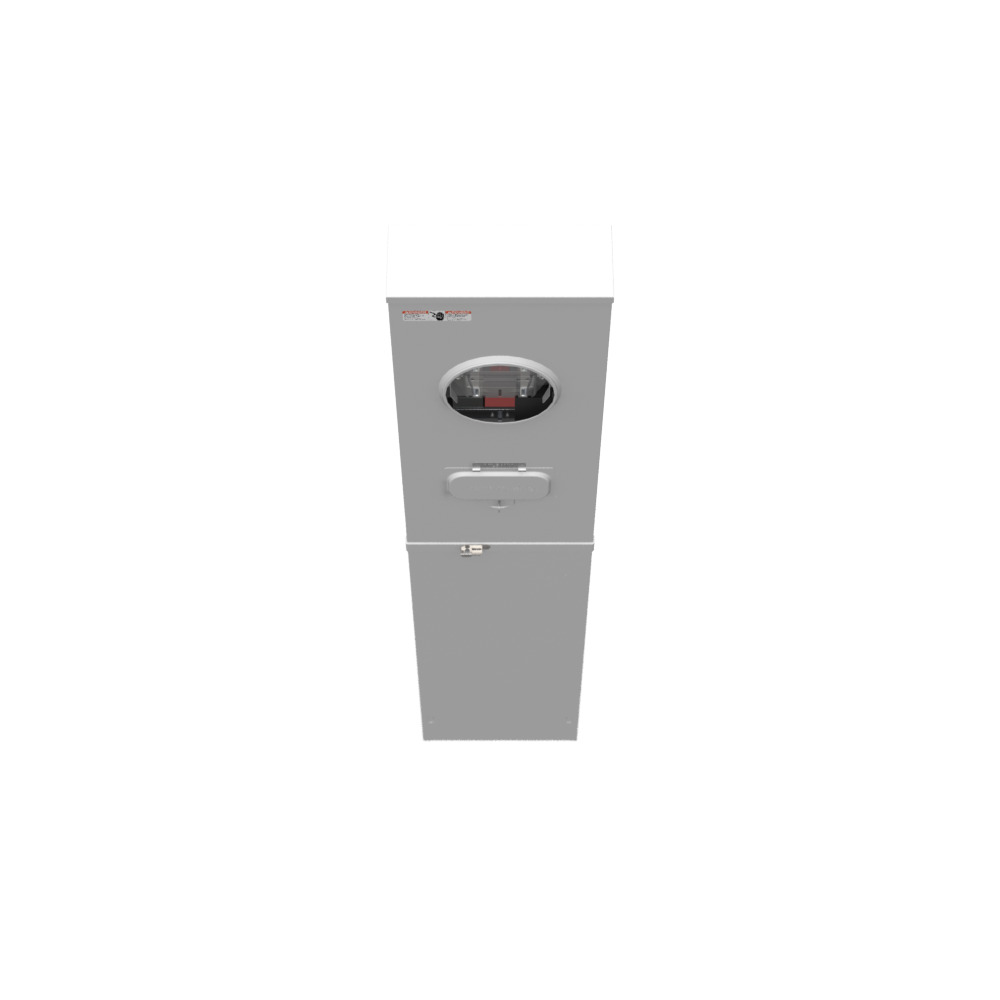

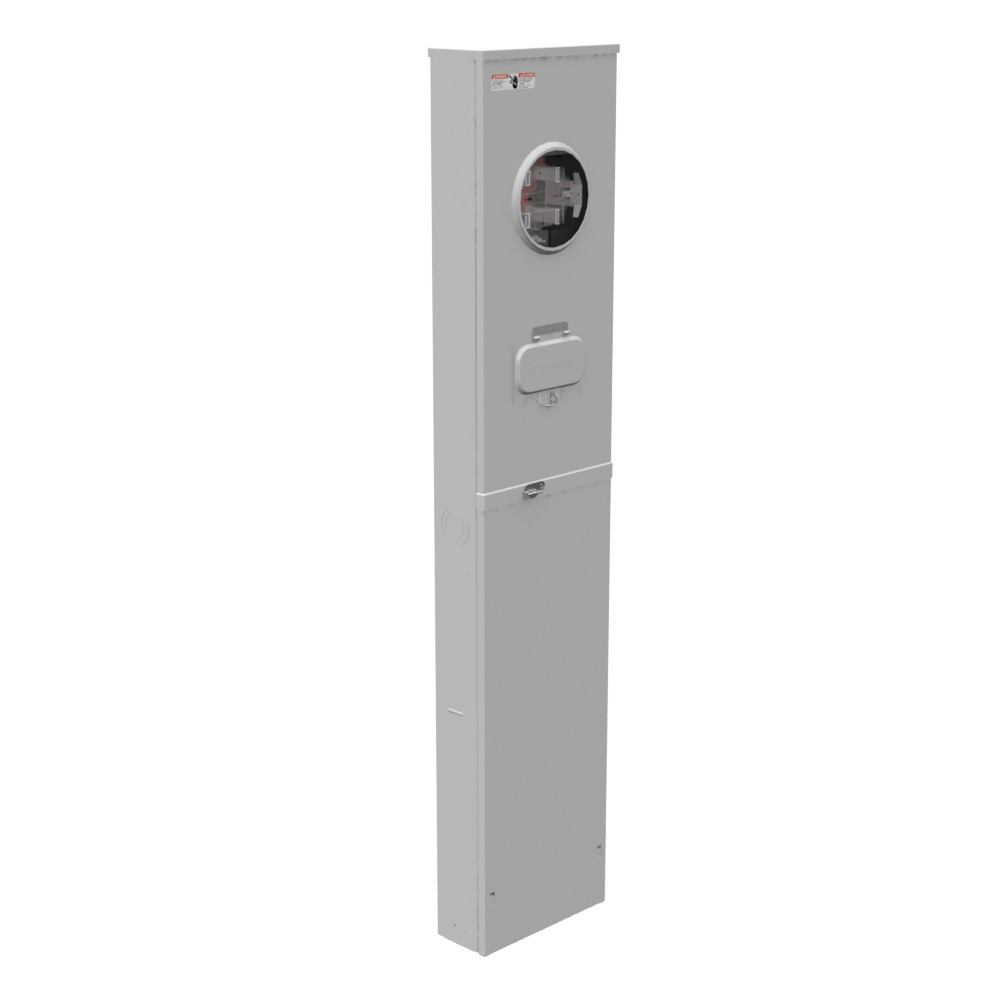

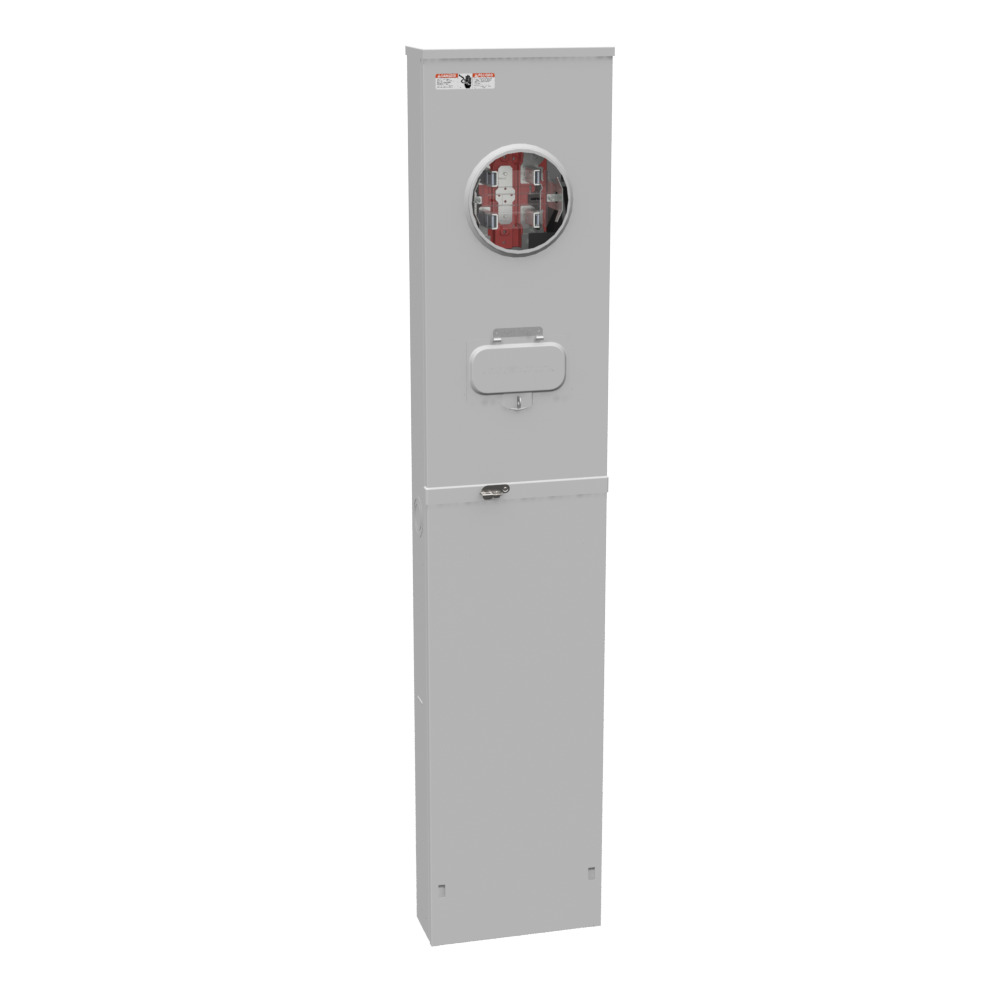

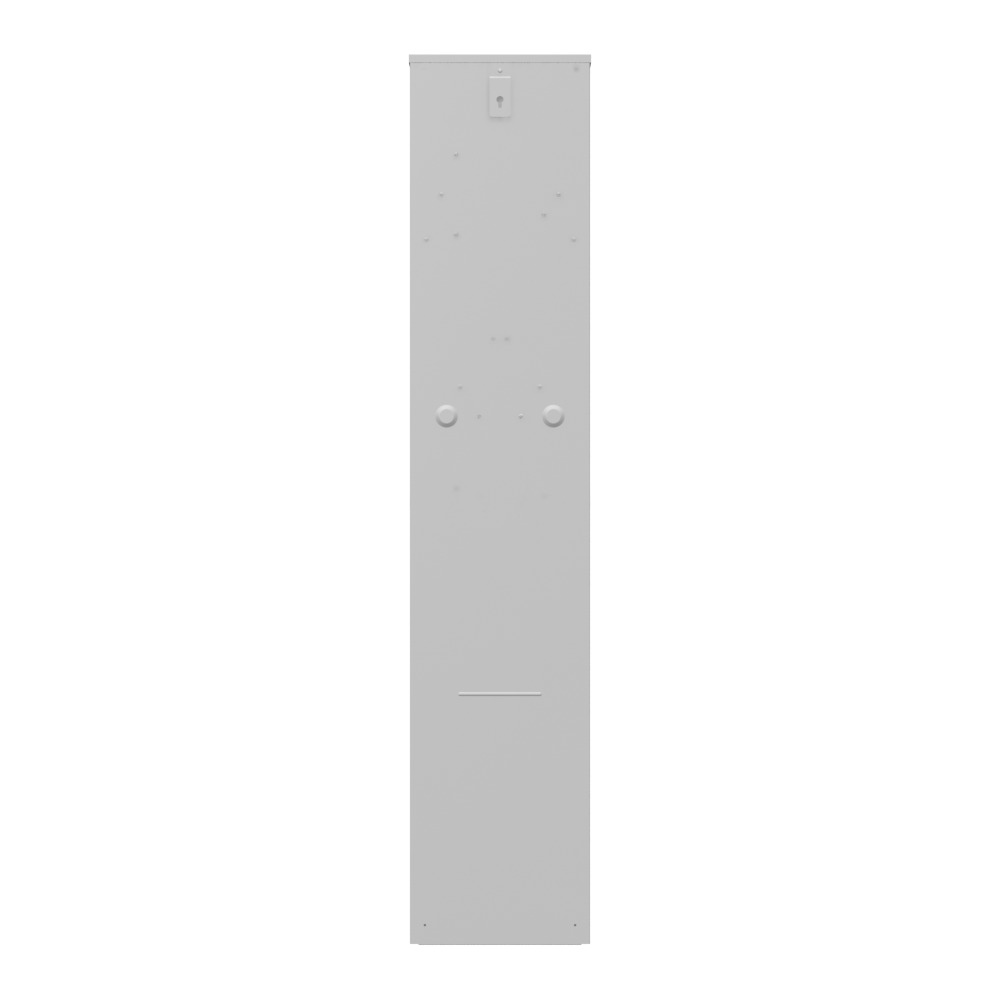

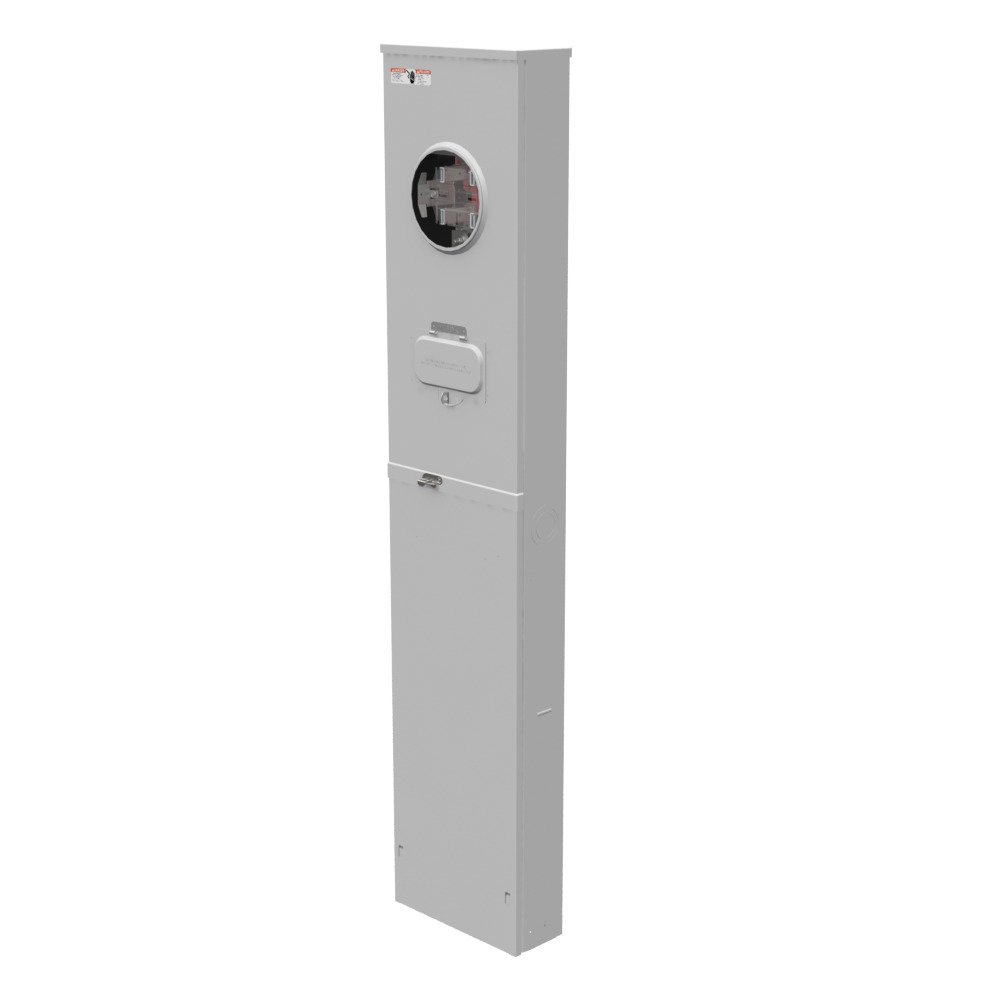

U3849-O-200-100 4 Term, Ringless, Plain Top, Lever Bypass, 1-200 Amp, Main Breaker and 1-100 Amp, Breaker
- MFR:
- Milbank
- MFR #:
- U3849-O-200-100
- UPC:
- 784572463196
- Item #:
- 134695
U3849-O-200-100 4 Term, Ringless, Plain Top, Lever Bypass, 1-200 Amp, Main Breaker and 1-100 Amp, Breaker
- MFR #:
- U3849-O-200-100
- UPC:
- 784572463196
- Item #:
- 134695
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$6,588.92
each
4 TERM RNGLS PLAIN TOP LVR BYPS 1-200 AMP MN BRKR AND 1-100 AMP BKR
Manuals and Documentation
| Catalog Number | U3849-O-200-100 |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 320 |
| Application | Meter Socket With Main |
| Bypass Type | Lever |
| Cable Entry | Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Pedestal |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572463196 |
| GTIN | 00784572463196 |
| Item Type | Ringless Meter Socket |
| Length | 4.844 |
| Length UOM | Inch |
| Width | 13 |
| Width UOM | Inch |
| Height | 64 |
| Height UOM | Inch |
| Size | 4.844L x 13W x 64H |
| Terminals | 3/8 Inch Stud |
| Voltage Rating | Up to 240 Volts Alternating Current |
