Mersen

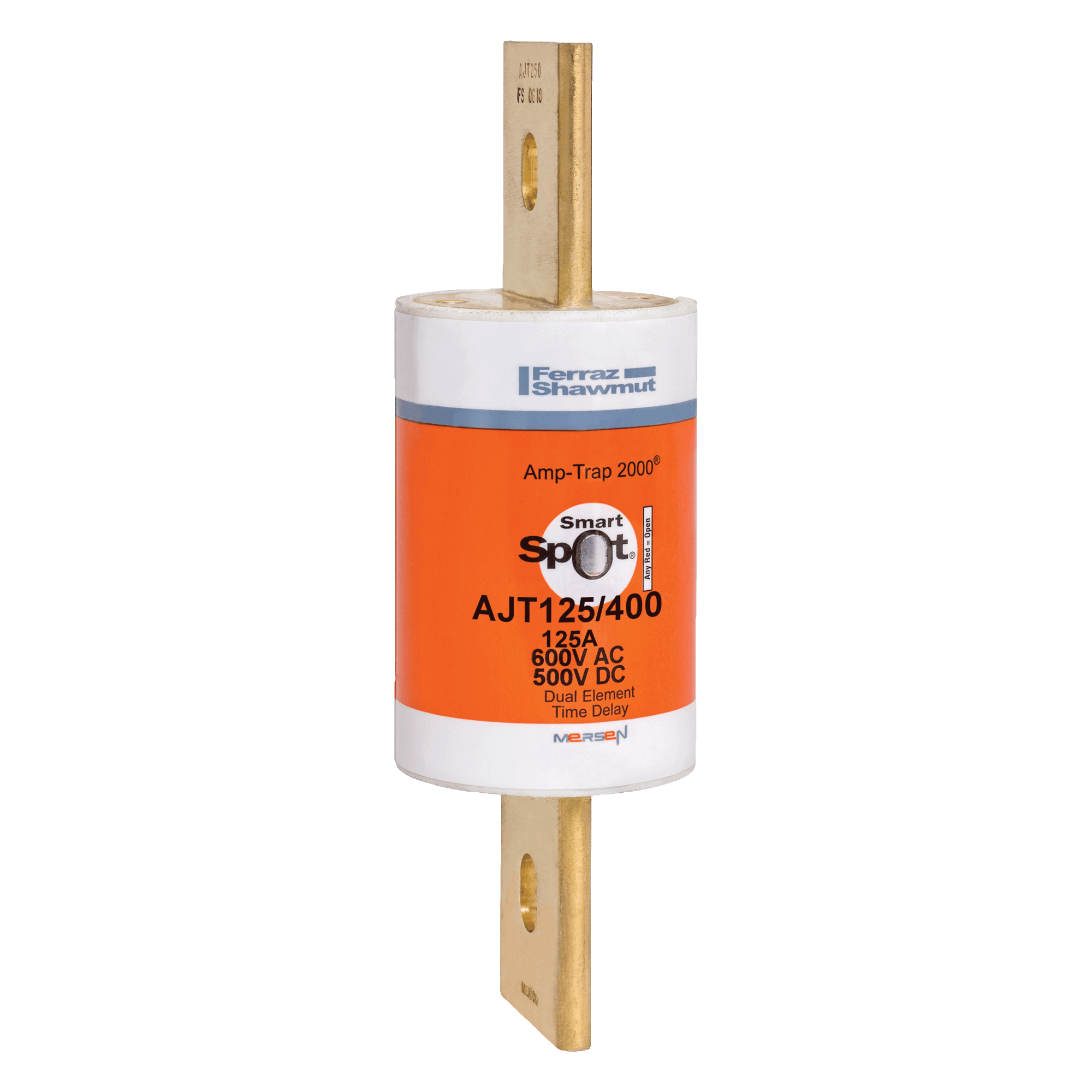

AJT125/400 Amp-Trap 2000 SmartSpot Fast Acting North American Style Time Delay Reducer Fuse, 125 A, 600 V AC/500 V DC, 100/200 kA, Class J, Cylindrical Body

MFR:
Mersen
MFR #:
AJT125/400
UPC:
782001460587
Item #:
1346900

Availability

Location Available Qty
Available Available to Order
$1,218.99 each

Reducer Fuse AJT - Class J - Time-delay 600VAC 500VDC 125A Blade

Manuals and Documentation
Catalog Number AJT125/400
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Amperage Rating 125
Application Motor circuits Mains Feeders Branch circuits Lighting, heating & general loads Transformers Control panels Circuit breaker back-up Bus duct Load centers
Connection Blade
Interrupt Rating 200 KA
Mounting Bolt
Special Features Replaces traditional temporary-use only Fuse Reducer accessories Recommended for Arc Flash energy reduction Extremely current-limiting for low peak let-thru current Most current-limiting UL class fuse Time-delay for motor starting and transformer inrush High-visibility orange label gives instant brand recognition Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional EI indicator/switch
Standard UL Listed to standard 248-8 IEC 269-2-1
RoHS URL https://pim.mersen.com/63D22E4C85464DB4A92A923D3BF2CC26-128.pdf
UPC 782001460587
GTIN 00782001460587
Item Type Class J
Size 7.13 x 2.12
Type of Indicators SmartSpot
Voltage Rating 600
