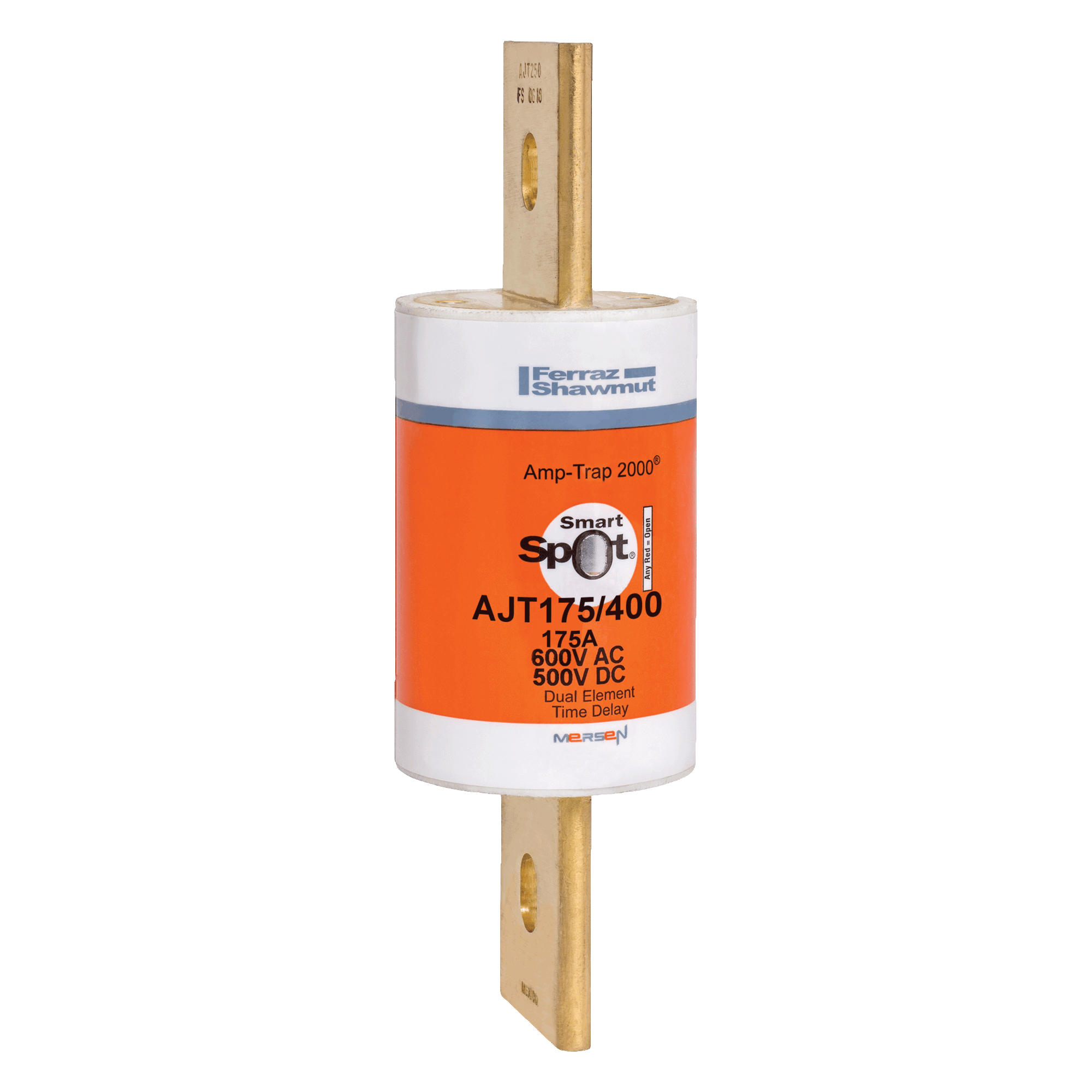

AJT175/400 AJT Reducer Time Delay Fuse, 175 A, 600 V AC/500 V DC, 100 kA at 500 VDC, 200 kA at 600 VAC Interrupt, Class: J
- MFR:
- Mersen
- MFR #:
- AJT175/400
- UPC:
- 782001463878
- Item #:
- 1346898
AJT175/400 AJT Reducer Time Delay Fuse, 175 A, 600 V AC/500 V DC, 100 kA at 500 VDC, 200 kA at 600 VAC Interrupt, Class: J
- MFR #:
- AJT175/400
- UPC:
- 782001463878
- Item #:
- 1346898
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,343.84
each
Reducer Fuse AJT - Class J - Time-delay 600VAC 500VDC 175A Blade
Manuals and Documentation
| Catalog Number | AJT175/400 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 175 |
| Application | Motor circuits Mains Feeders Branch circuits Lighting, heating & general loads Transformers Control panels Circuit breaker back-up Bus duct Load centers |
| Connection | Blade |
| Interrupt Rating | 200 KA |
| Mounting | Bolt |
| Special Features | Replaces traditional temporary-use only Fuse Reducer accessories Recommended for Arc Flash energy reduction Extremely current-limiting for low peak let-thru current Most current-limiting UL class fuse Time-delay for motor starting and transformer inrush High-visibility orange label gives instant brand recognition Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional EI indicator/switch |
| Standard | UL Listed to standard 248-8 IEC 269-2-1 |
| RoHS URL | https://pim.mersen.com/63D22E4C85464DB4A92A923D3BF2CC26-128.pdf |
| UPC | 782001463878 |
| GTIN | 00782001463878 |
| Item Type | Class J |
| Size | 7.13 x 2.12 |
