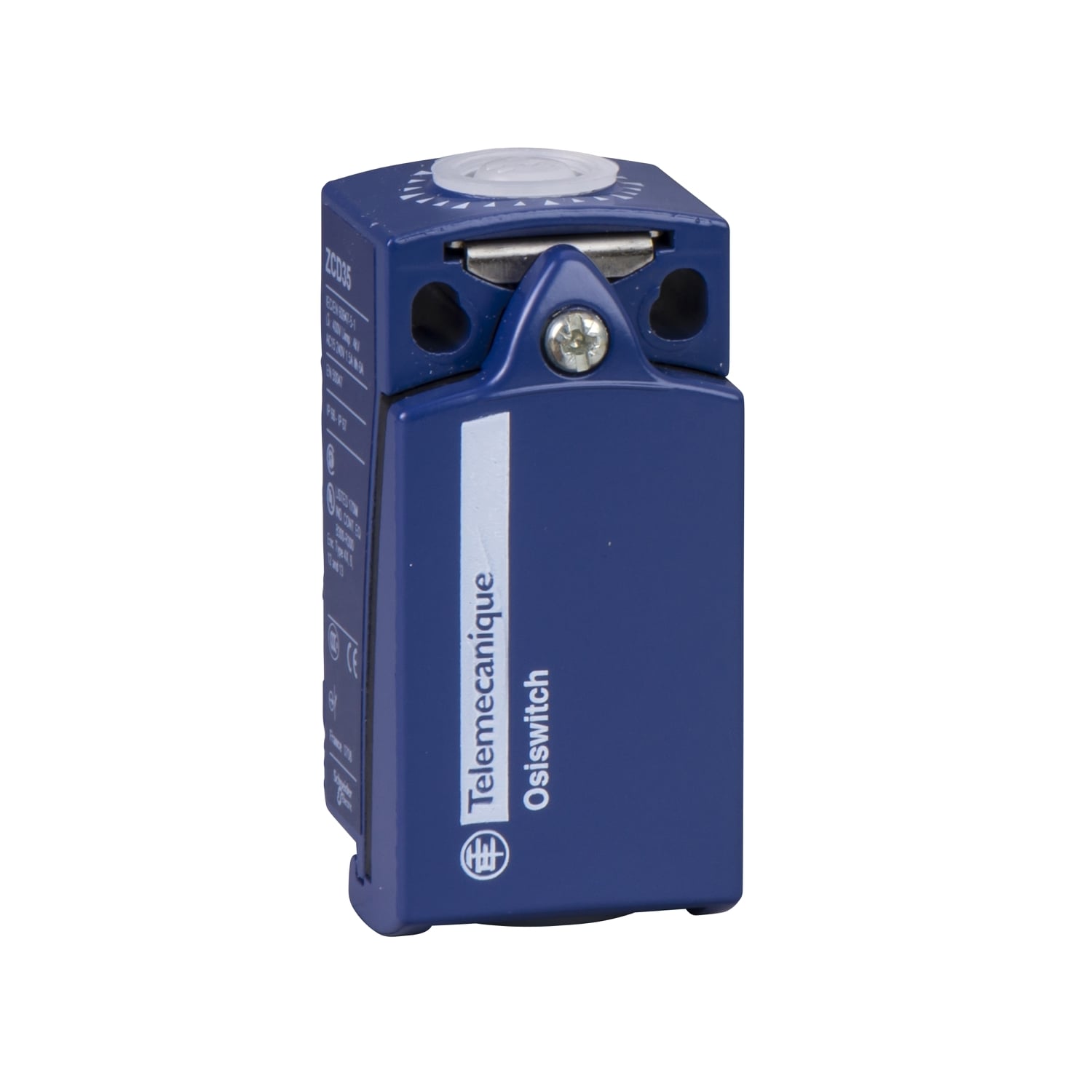

ZCD35 OsiSense XC Fixed Limit Switch Body, 2NO-1NC Contact, For Use With XCKD, ZCD and ZCD Series Standard Format Compact Limit Switch, 3 A at 240 V AC/0.27 A at 250 V AC Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- ZCD35
- Item #:
- 1346376
ZCD35 OsiSense XC Fixed Limit Switch Body, 2NO-1NC Contact, For Use With XCKD, ZCD and ZCD Series Standard Format Compact Limit Switch, 3 A at 240 V AC/0.27 A at 250 V AC Contact
- MFR #:
- ZCD35
- Item #:
- 1346376
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$173.81
each
limit switch body ZCD - compact - 1NC+2NO - slow-break
Manuals and Documentation
| Catalog Number | ZCD35 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Switzerland |
| Made in USA | No |
| Action | Slow-break, break before make |
| Application | XCKD |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 0.75 mm² |
| Contact Configuration | 1 NC + 2 NO |
| Number of Poles | 3 |
| Operating Cycles | 5000000 CYCLES, DC-13 120 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879106&lang=en-us |
| GTIN | 03389110185980 |
| Item Type | Limit switch body |
| Size | 1.18 |
| Operating Temperature | -25-70 A Degrees C |
