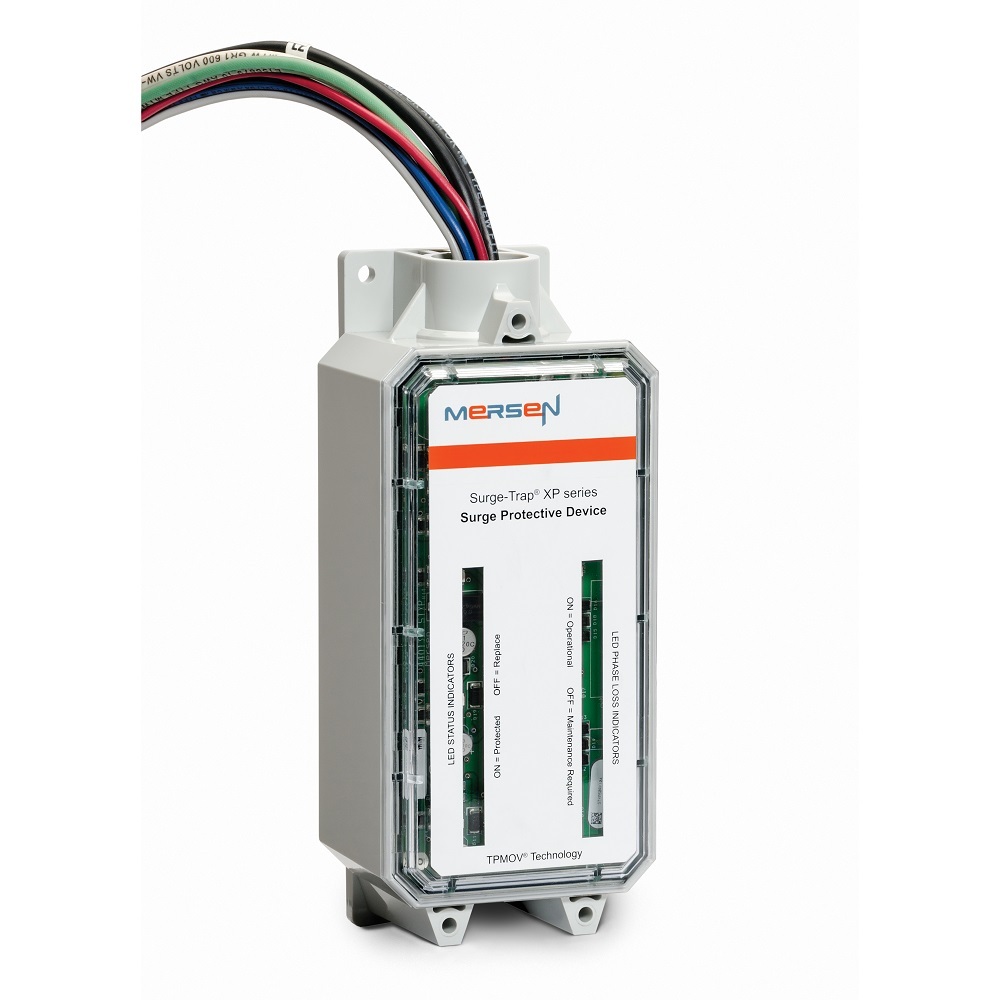

STXP240S10A STXP Split Phase Surge Protective Device, 120/240 V AC, 50/60 Hz, 200 kA SCCR
- MFR:
- Mersen
- MFR #:
- STXP240S10A
- UPC:
- 782001470555
- Item #:
- 1345932
STXP240S10A STXP Split Phase Surge Protective Device, 120/240 V AC, 50/60 Hz, 200 kA SCCR
- MFR #:
- STXP240S10A
- UPC:
- 782001470555
- Item #:
- 1345932
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$3,020.98
each
The Surge-Trap Type 1 STXP Series offers advanced performance and features over the STXR series including higher surge capacity and phase LED status indicators. The STXP meets requirements for UL1449 Fourth Edition and has been designed for additional mounting flexibility including mounting feet and flush-mount capability. The STXP features TPMOV technology inside making it the safest product available. Installation can be done on the line or load side of a panel. The STXP is the perfect fit from service entrance all the way down to an important machine specific control panel., 240/120V, L-G, L-L, L-N, N-G, Split Phase, LED and Remote Audible Alarm 100 kA per phase
Manuals and Documentation
| Catalog Number | STXP240S10A |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Suitable for any Type 1 or 2 SPD application |
| Connection | Pre-wired with 3 ft 12 AWG conductors |
| Insulation | Polycarbonate |
| Mounting | Wall |
| Short Circuit Rating | 200 KA |
| Special Features | Designed with the industry leading Mersen TPMOV® Technology (internally fused) Enhanced 100kA surge capacity for longer life and higher single impulse withstand LED status indicator (ON = Good, OFF = Replace) LED phase loss indicators (ON = Operational,OFF = Maintenance Required) NEMA 4X enclosure for outdoor or indoor use Mounting hub and mounting feet for installation flexibility Pre-wired with 3' leads for easy installation Optional flush-mount kit for in-wall installation Optional audible alarm and remote dry contacts For use in ANSI/UL Type 1 or 2 SPD installations Up to 10 Modes of Protection (L-N, L-L, L-G, N-G) 10-year warranty |
| Standard | ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793 CSA C22.2, Type 1 SPD ANSI/IEEE C62.41.1, C62.41.2, C62.45 UL96A Lightning Protection |
| UPC | 782001470555 |
| GTIN | 00782001470555 |
| Type of Indicators | LED and Remote Audible Alarm |
| Voltage Rating | 240/120 |
