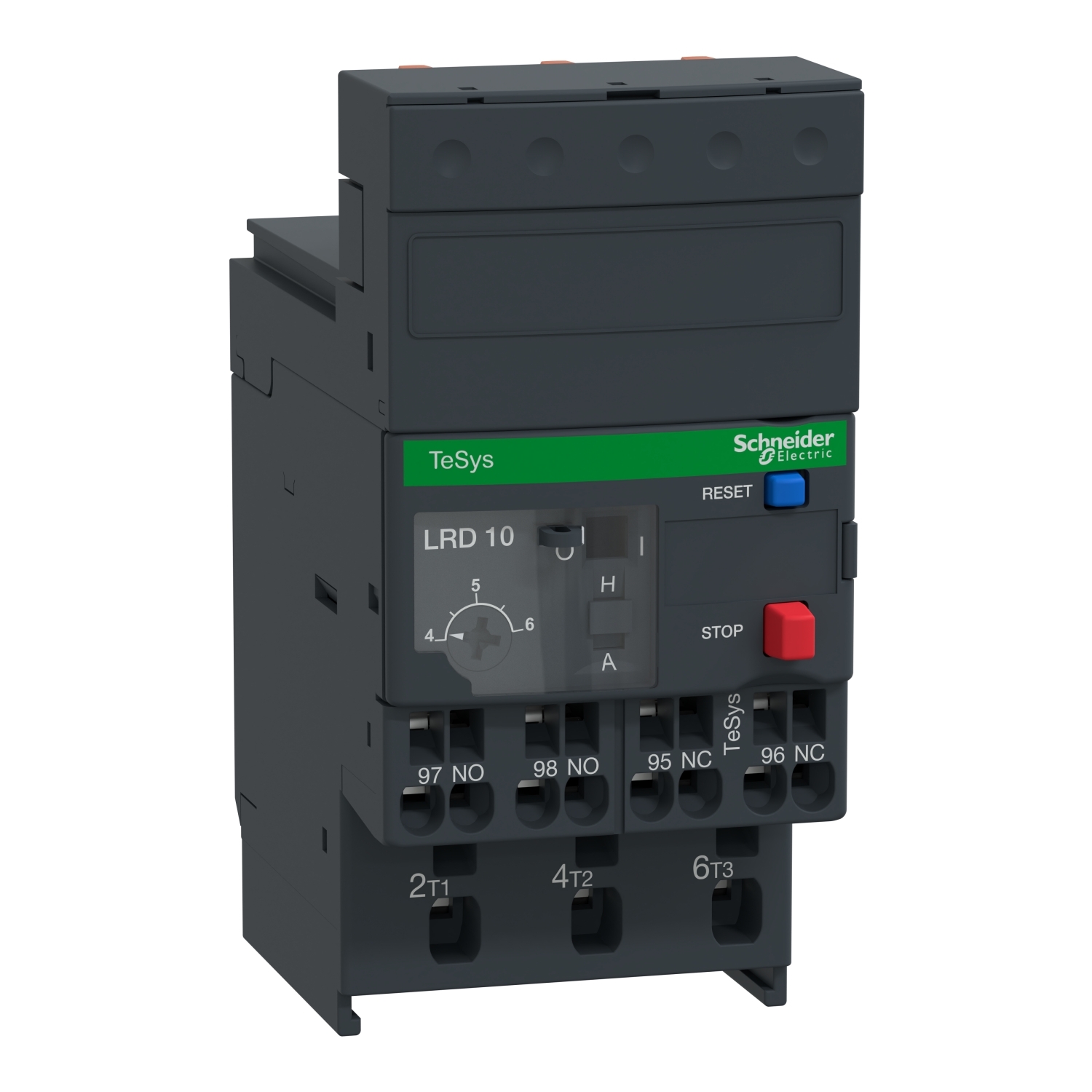

LRD103 TeSys LRD Bi-Metallic Differential Thermal Overload Relay, 4 to 6 A, 1NO-1NC 1 Form A/1 Form B Contact
- MFR:
- Schneider Electric
- MFR #:
- LRD103
- Item #:
- 1344725
LRD103 TeSys LRD Bi-Metallic Differential Thermal Overload Relay, 4 to 6 A, 1NO-1NC 1 Form A/1 Form B Contact
- MFR #:
- LRD103
- Item #:
- 1344725
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys LRD thermal overload relay, 6A/690V, thermal setting range 4-6A, tripping class 10A, for protection of 3-phase motors 2.2kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
Manuals and Documentation
| Catalog Number | LRD103 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=640196&lang=en-us |
| GTIN | 03389110822052 |
