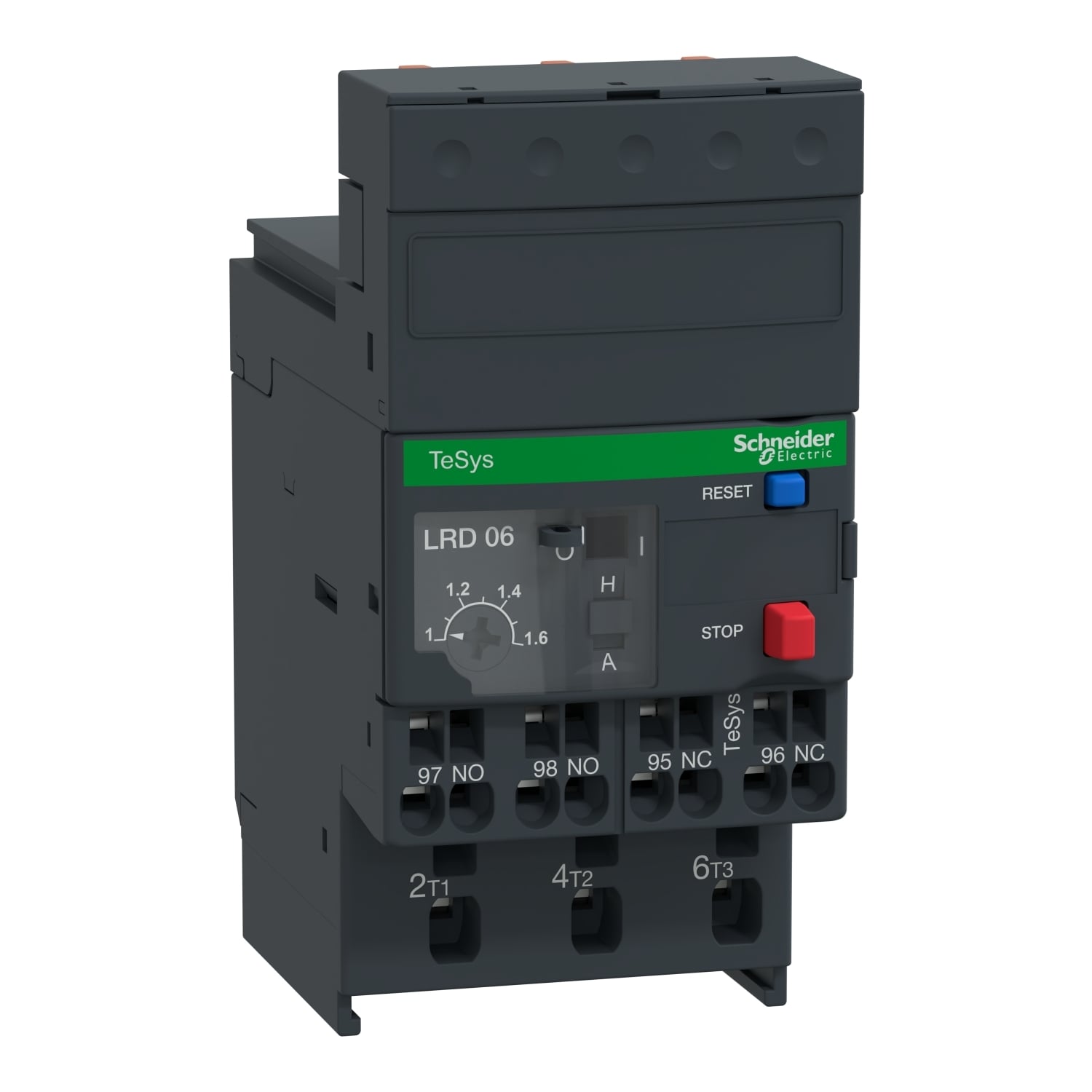

LRD063 TeSys LRD Series Differential Thermal Overload Relay With Relay Trip Indicator, 1 to 1.6 A, 690 V AC V Coil
- MFR:
- Schneider Electric
- MFR #:
- LRD063
- Item #:
- 1344723
LRD063 TeSys LRD Series Differential Thermal Overload Relay With Relay Trip Indicator, 1 to 1.6 A, 690 V AC V Coil
- MFR #:
- LRD063
- Item #:
- 1344723
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys LRD thermal overload relay, 1.6A/690V, thermal setting range 1-1.6A, tripping class 10A, for protection of 3-phase motors 0.55kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
Manuals and Documentation
| Catalog Number | LRD063 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=640154&lang=en-us |
| GTIN | 03389110821994 |
