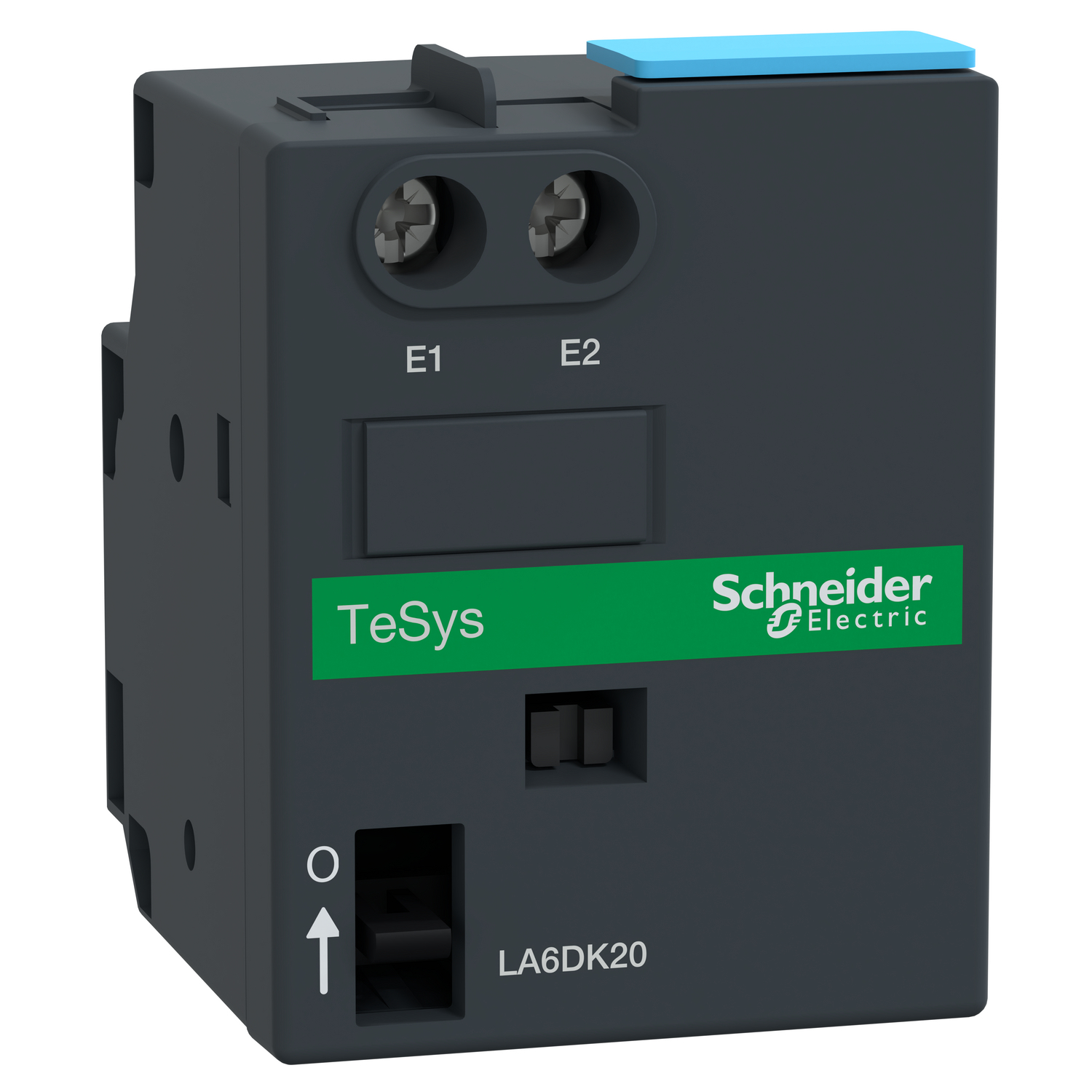

LA6DK20F Mechanical Latch Block, For Use With TeSys D LC1D80, LP1D80, LC1D150, LC1D115, LC1D95 Contactor
- MFR:
- Schneider Electric
- MFR #:
- LA6DK20F
- Item #:
- 134122
LA6DK20F Mechanical Latch Block, For Use With TeSys D LC1D80, LP1D80, LC1D150, LC1D115, LC1D95 Contactor
- MFR #:
- LA6DK20F
- Item #:
- 134122
Availability
| Location | Available Qty |
|---|---|
| Available | 1 ea |
$131.99
each
TeSys Deca mechanical latch block, for contactors LC1D80-D150 (3P/4P) and LP1D40-80 (4P). Electrical latching and unlatching is performed applying a 110-127V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA).
Manuals and Documentation
| Catalog Number | LA6DK20F |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | LC1D80...D150 3 phase AC;LC1D80 3 phase DC;LC1D150 3 phase DC;LC1D80 3 phases + neutral AC;LC1D115 3 phases + neutral AC;LP1D80 3 phases + neutral DC;LC1D115 3 phases + neutral DC |
| Coil Voltage | 110/127 V AC 50/60 Hz;110/127 V DC |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=608920&lang=en-us |
| GTIN | 03389110766462 |
| Item Type | Mechanical latch block |
