Schneider Electric

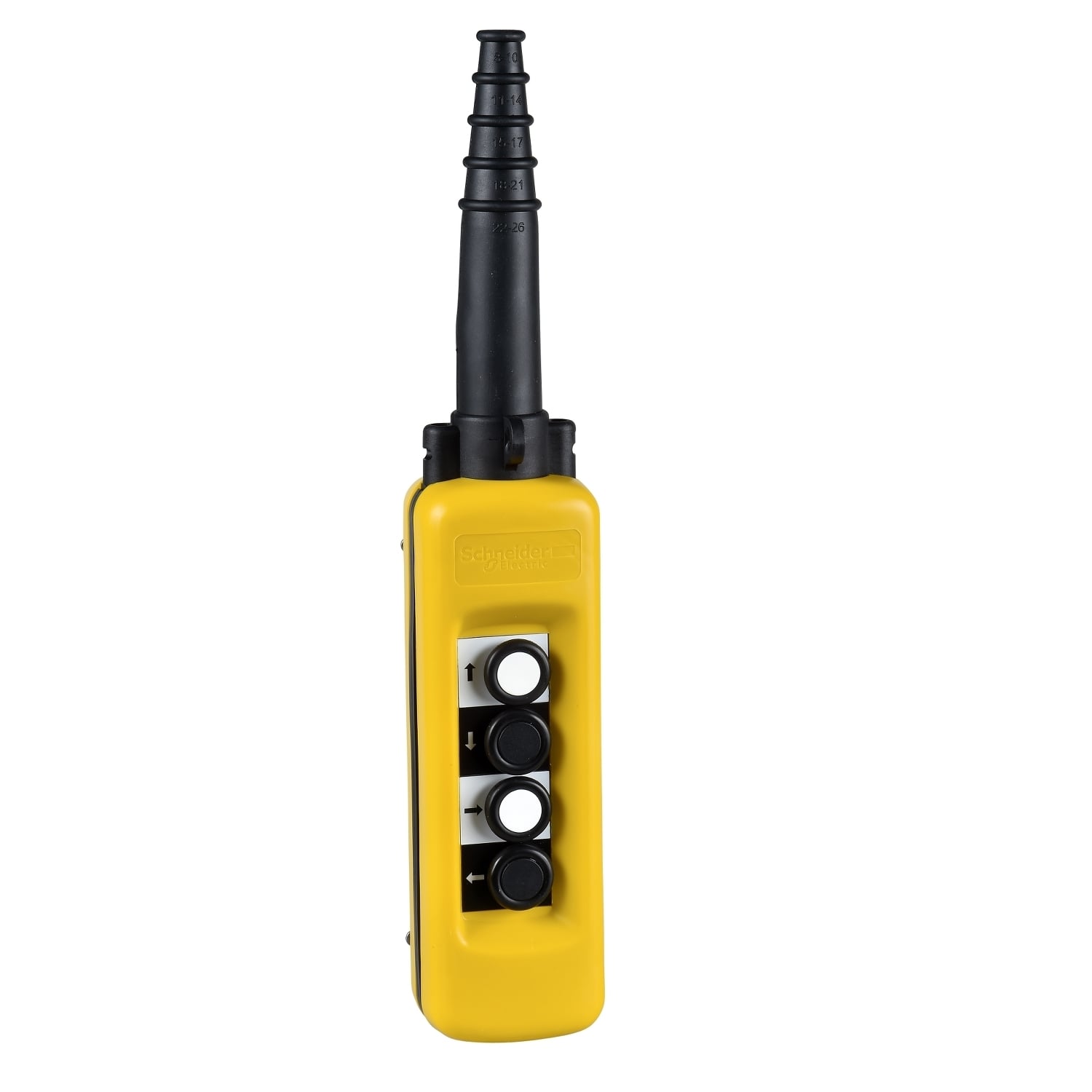

XACA481 Harmony Double Insulated Medium Duty Pendant Control Station, 600 V AC, 10 A, 4NO-4NC Contact, 4 Operators, NEMA 4/4X/5/IP65 NEMA Rating

MFR:
Schneider Electric
MFR #:
XACA481
Item #:
1337570

Availability

Location Available Qty
Available Available to Order
$282.98 each

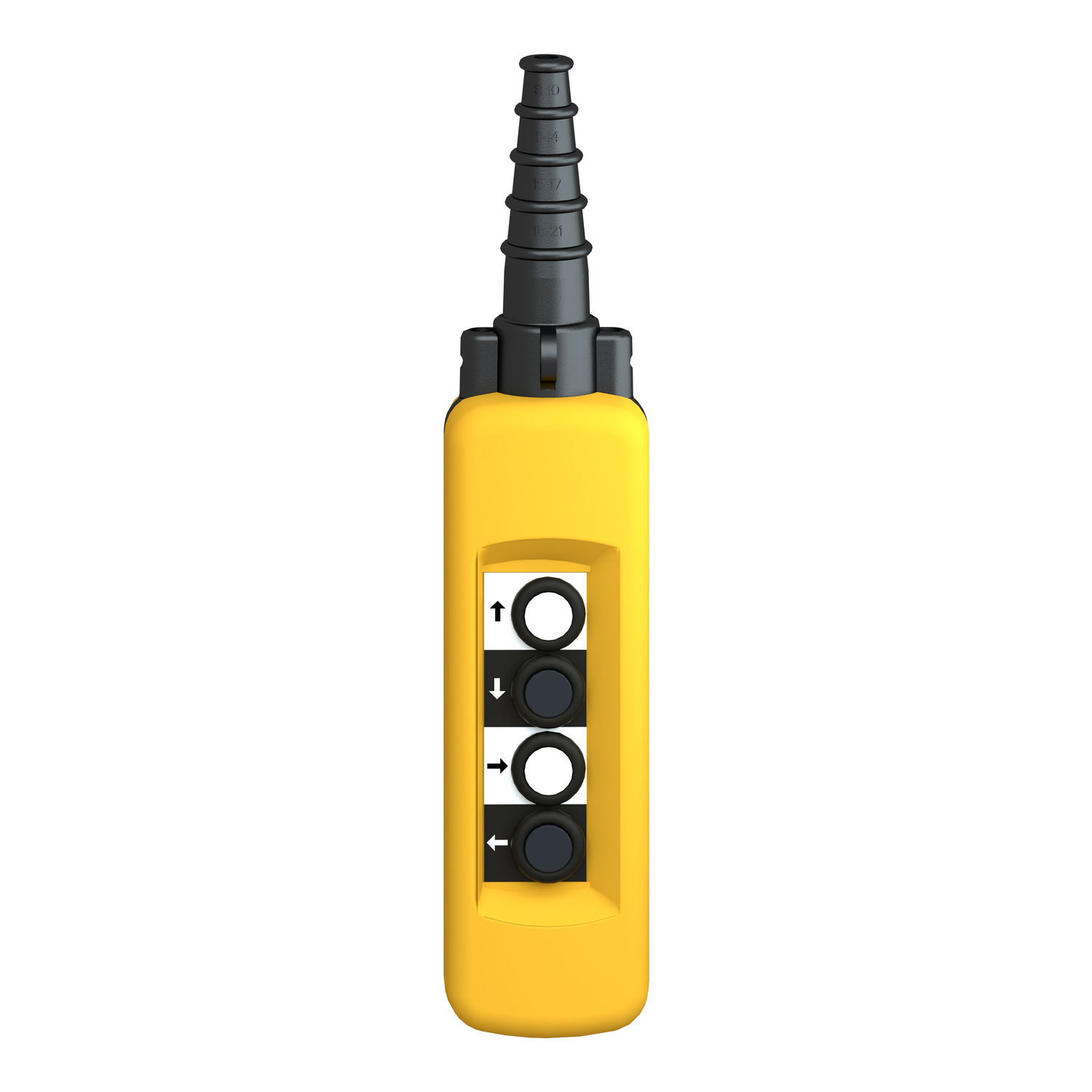

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed motors. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a polypropylne enclosure with 4 standard push buttons mechanically interlocked between pairs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.

Manuals and Documentation
Catalog Number XACA481
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application Control of single speed hoist motor;ZB2BE102 + ZB2BE101 for each direction;Control circuit
Cable Entry Rubber sleeve with stepped entry 8-26 mm
Connection Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end;screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Contact Rating Slow-break
Enclosure Polypropylene
Special Features Complete ready for use;With mechanical interlocking between pairs
Standard GOST;CCC;IK08 conforming to EN 50102;EN/IEC 60204-32;CSA C22.2 No 14;EN/IEC 60947-5-1;UL 508;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=674044&lang=en-us
GTIN 03389110644845
Item Type Pendant control station;Double insulated
