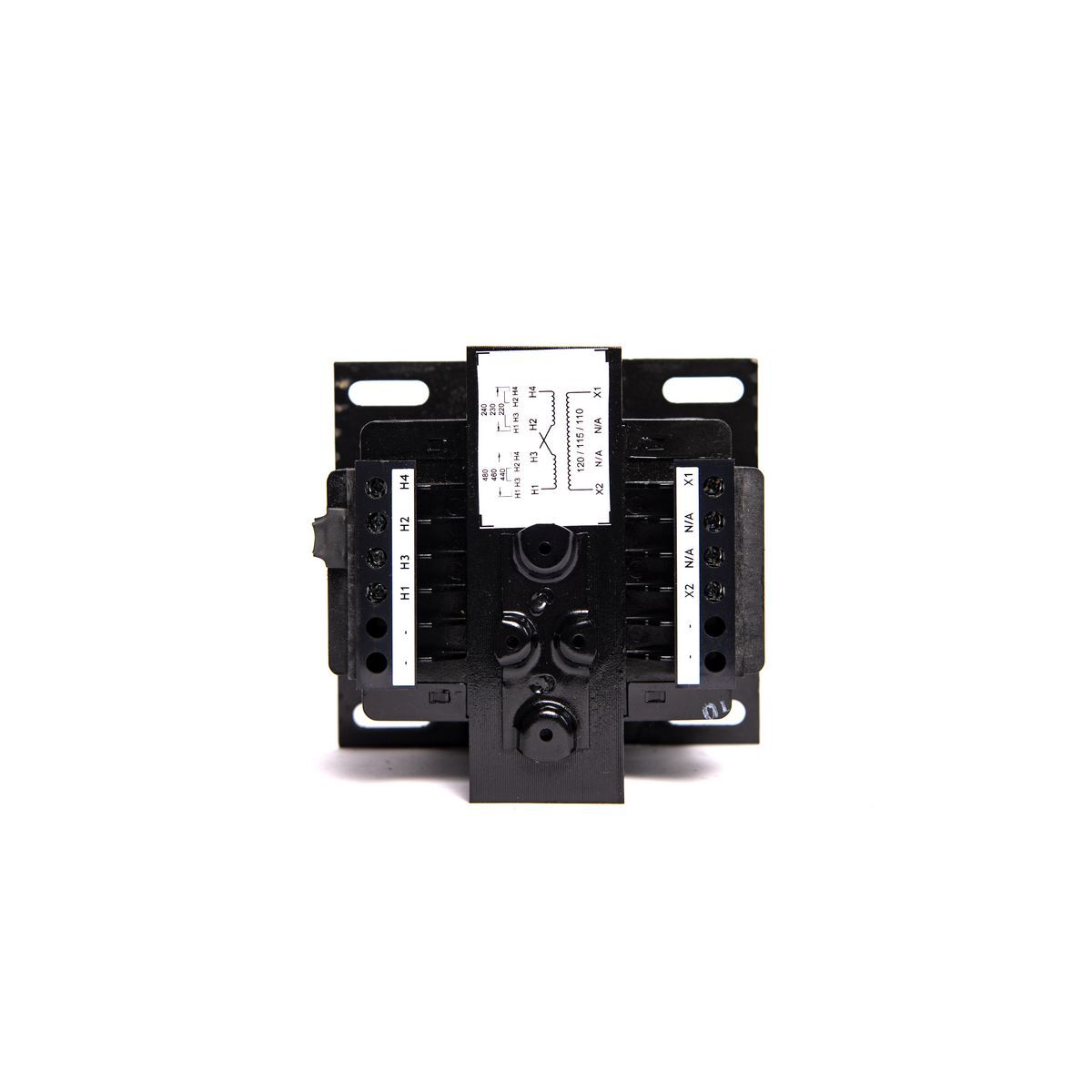

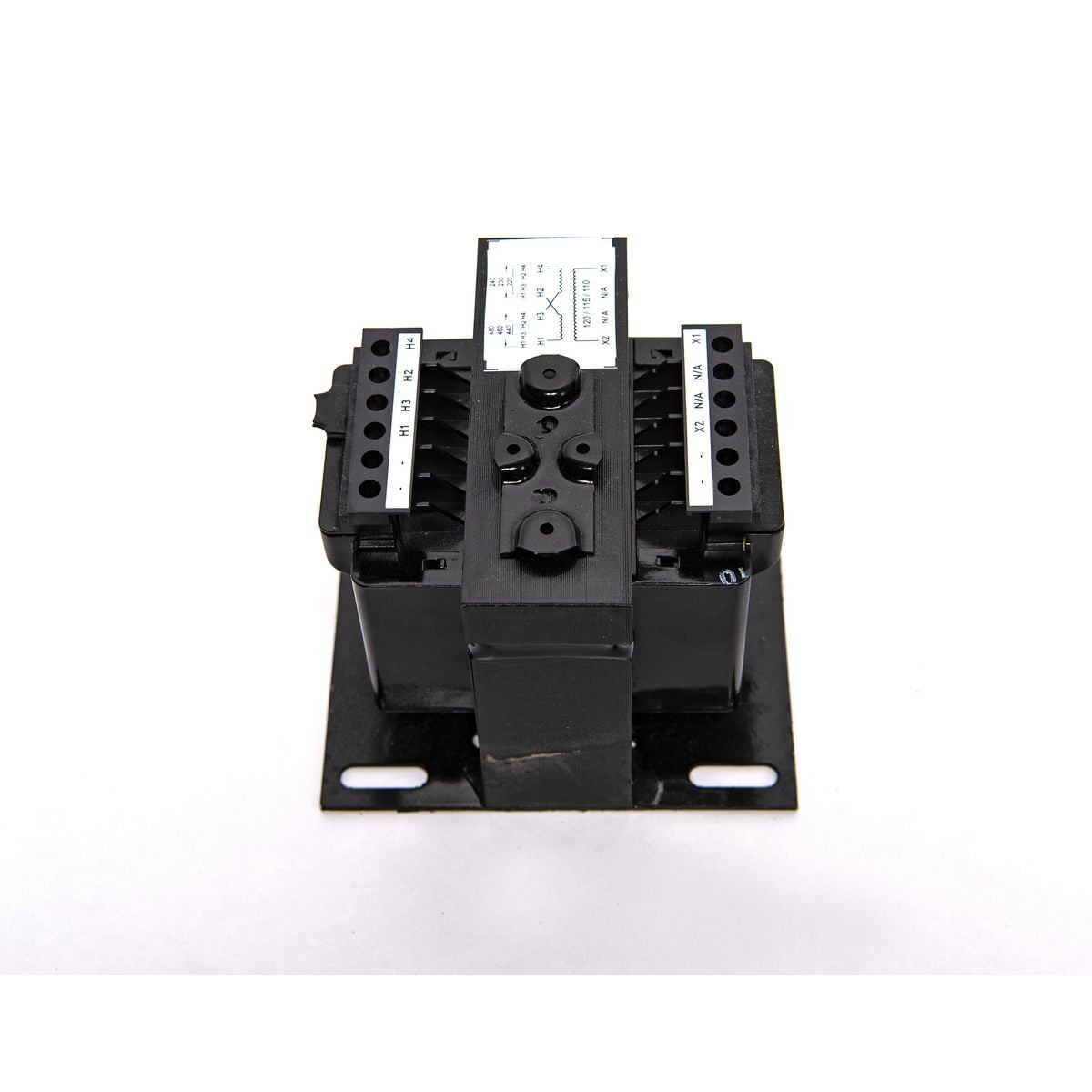

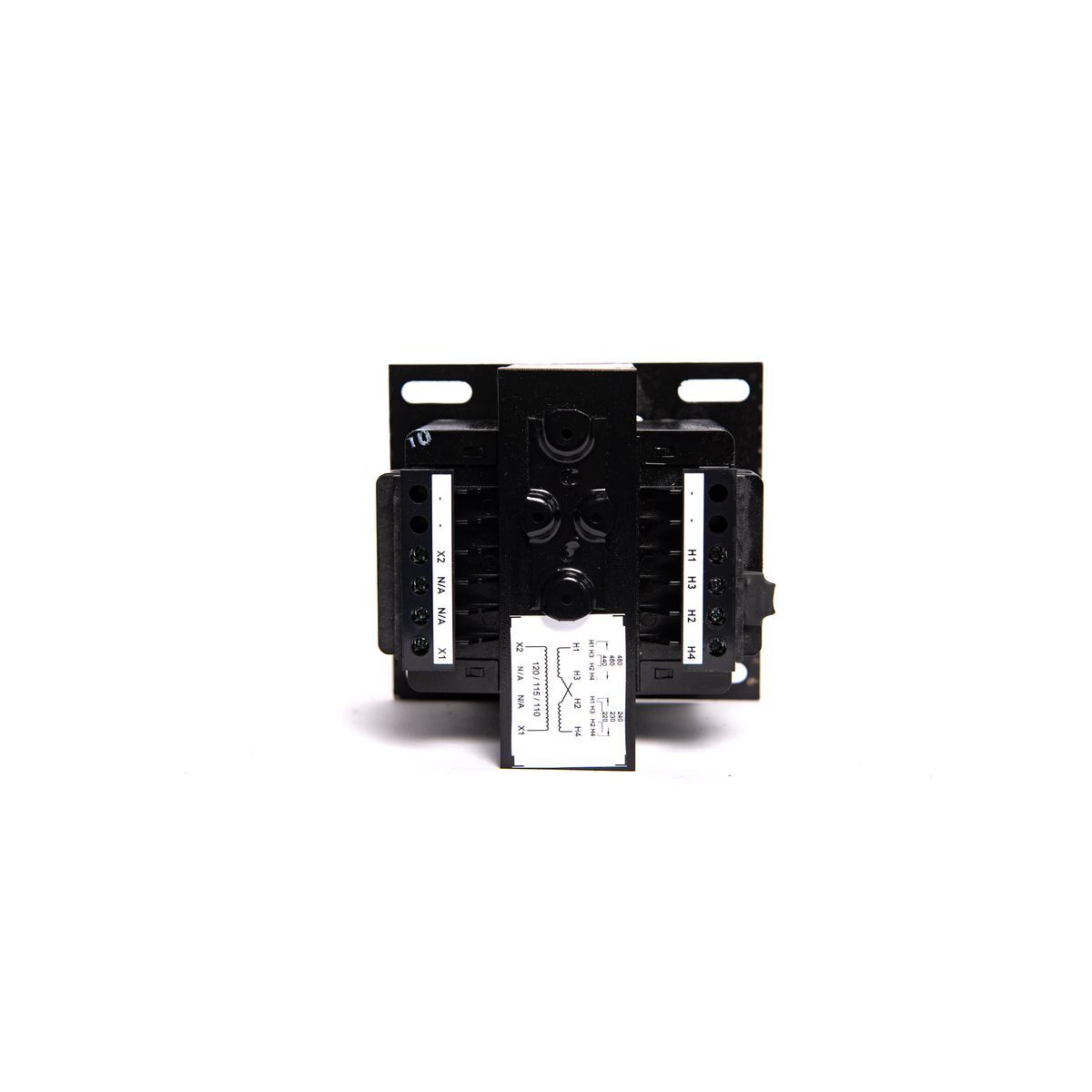

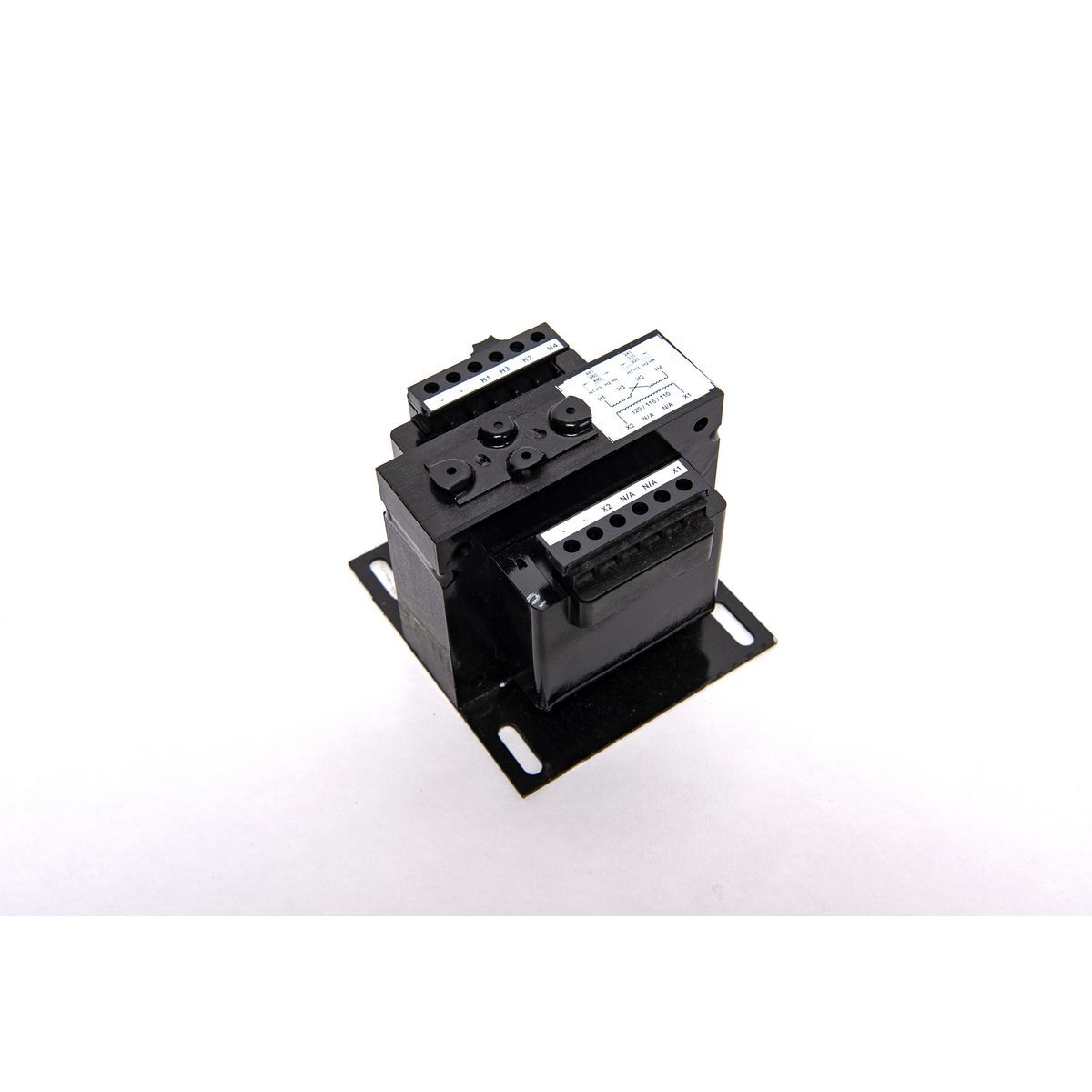

TB500N001 TB Encapsulated Industrial Control Transformer, 120 x 240 V AC Primary, 12/24 VAC Secondary, 500 VA Power Rating, 50/60 Hz, 1 Phase
- MFR:
- Acme Electric, a Hubbell affiliate
- MFR #:
- TB500N001
- UPC:
- 047503008614
- Item #:
- 1332169
TB500N001 TB Encapsulated Industrial Control Transformer, 120 x 240 V AC Primary, 12/24 VAC Secondary, 500 VA Power Rating, 50/60 Hz, 1 Phase
- MFR #:
- TB500N001
- UPC:
- 047503008614
- Item #:
- 1332169
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$515.14
each
Manuals and Documentation
| Catalog Number | TB500N001 |
| Manufacturer | Acme Electric, a Hubbell affiliate |
| Brand | ACME ELECTRIC |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Frequency Rating | 50/60 HZ |
| Primary Voltage | 120 X 240 V |
| Secondary Voltage | 12/24 V |
| Standard | UL Listed;cUL Listed |
| UPC | 047503008614 |
| GTIN | 00047503008614 |
