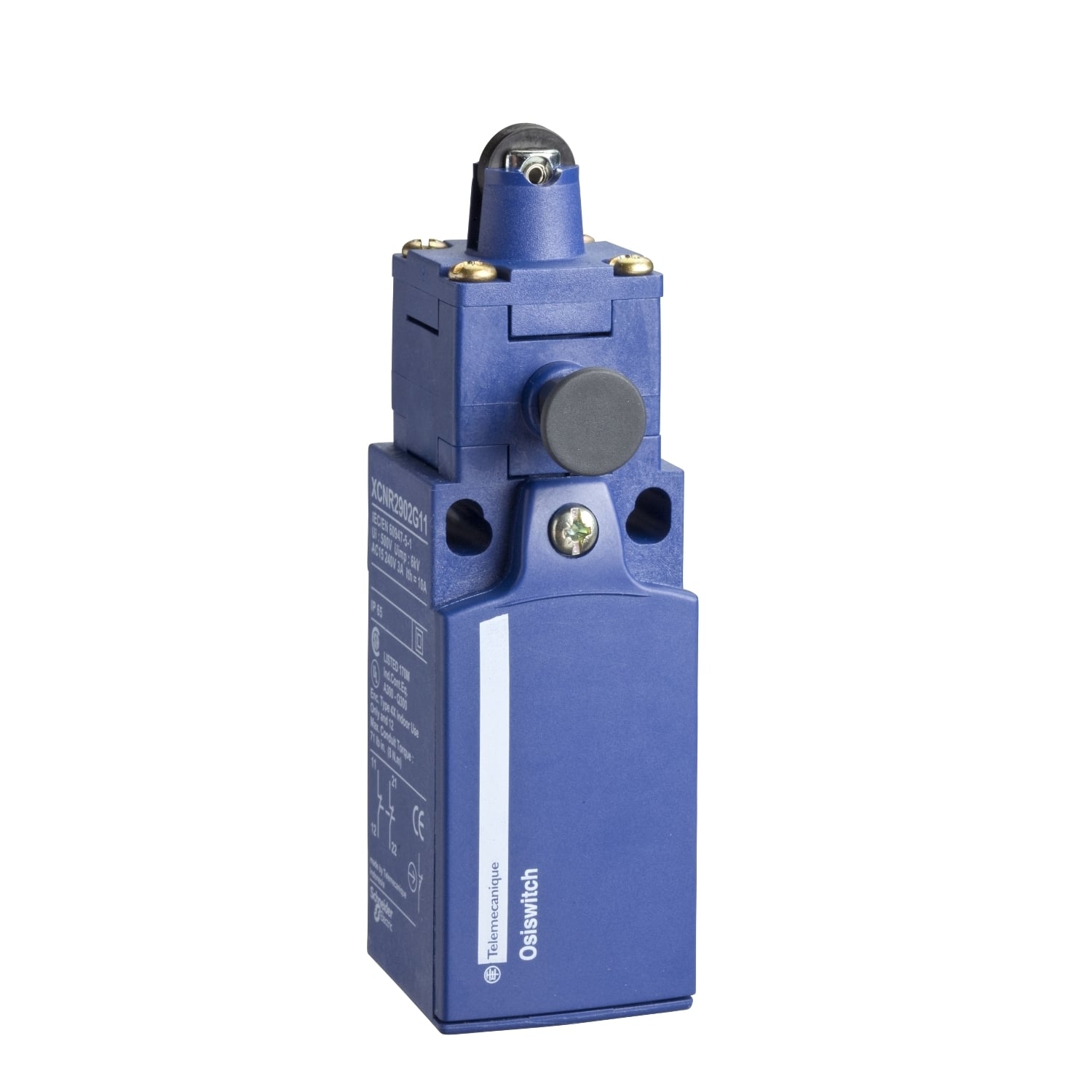

XCNR2102P20 OsiSense XC Compact Fixed Standard Format Limit Switch, 300/500 V, Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCNR2102P20
- Item #:
- 1331574
XCNR2102P20 OsiSense XC Compact Fixed Standard Format Limit Switch, 300/500 V, Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCNR2102P20
- Item #:
- 1331574
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$147.21
each
limit switch XCNR - steel roller plunger - 1NC+1NO - snap - M20
Manuals and Documentation
| Catalog Number | XCNR2102P20 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | Lateral approach, 2 directions;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller plunger plastic |
| Application | COMPACT BASIC WITH RESET |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Number of Poles | 2 |
| Special Features | FIXED,PLASTIC |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CCC-CSA-UL,IEC 60947-5-1-EN 60204-1-CSA C22.2 NO 14-IEC 60204-1-UL 508-EN 60947-5-1,IK04 EN 50102,IP65 IEC 60529,CLASS II IEC 61140-CLASS II NF C 20030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858036&lang=en-us |
| GTIN | 03389118204645 |
| Item Type | Limit switch |
| Size | 1 ENTRY TAPPED FOR M20 X 1.5 CABLE GLAND, CABLE OUTER DIAMETER: 7...13 MM,COMPACT,FIXED |
| Operating Temperature | -25-70 A Degrees C |
