Appleton

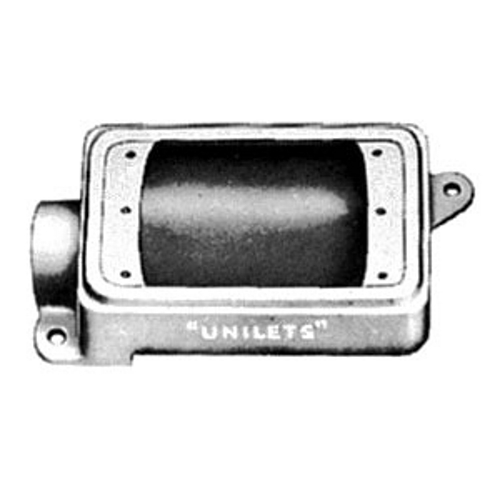

FS Type Cast Box; 3/4 In Hub, 1-Gang

MFR:
Appleton Electric
MFR #:
FS-1-75L
UPC:
781381341103
Item #:
132415

Availability

Location Available Qty
Available Available to Order
$69.95 each

UNILETS FS Shallow Depth 1-Gang Cast Device Box, Number Of Outlet: 1, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (1) 3/4 IN Hub, Mounting: (2) 5/16 Diameter Lugs, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 6.06 IN, Width:

Manuals and Documentation
Catalog Number FS-1-75L
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit And IMC
Cable Entry (1) 3/4 IN Hub
Cubic Capacity 25 CU IN
Knockouts No
Material Malleable Iron
Mounting (2) 5/16 Diameter Lugs
Special Features Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
Standard UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
RoHS Indicator Contact Manufacturer
UPC 781381341103
GTIN 00781381341103
Item Type FS Shallow Depth 1-Gang Cast Device Box
Length 6.5000
Length UOM Inch
Width 4.7000
Width UOM Inch
Height 3.1000
Height UOM Inch
Weight 1.930
Weight UOM Pounds
Size 3/4
