Mersen

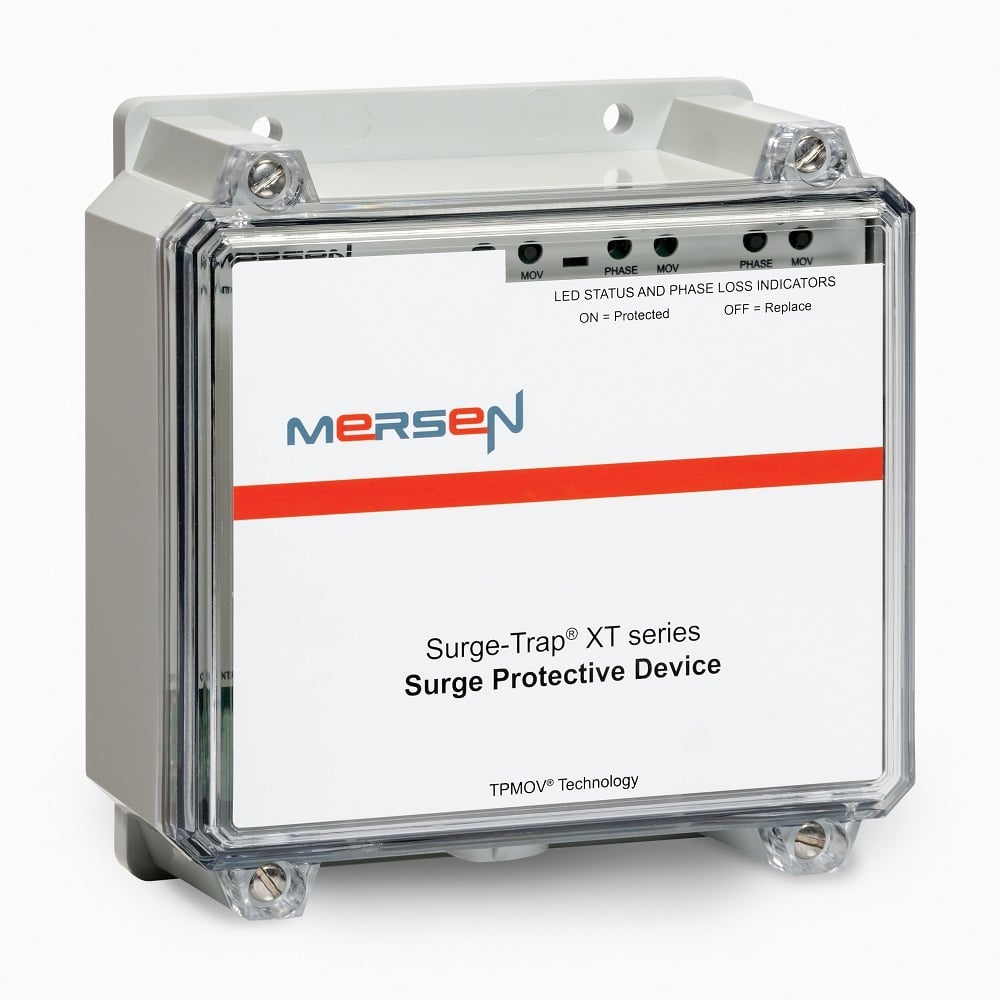

STXT240D20A Surge-Trap Surge Protective Device, 240 Delta V AC, 50/60 Hz, 200 kA SCCR, 3 Phase

MFR:
Mersen
MFR #:
STXT240D20A
UPC:
782001470982
Item #:
1320278

Availability

Location Available Qty
Available Available to Order
$3,641.61 each

The most advanced of the STX series, the Surge-Trap Type 1 STXT Series comes standard with EMI/RFI Filtering and surge capacities up to 200kA. The STXT features TPMOV technology inside making it the safest product available. With line or load side installation flexibility, this unit is a great fit from the service entrance all the way down to each distribution and/or branch panel. 240V, L-G, L-L, 3-Phase Delta, LED and Remote Audible Alarm 200 kA per phase

Manuals and Documentation
Catalog Number STXT240D20A
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Application Suitable for any Type 1 or 2 SPD application
Connection Box
Insulation Polycarbonate
Mounting Wall
Short Circuit Rating 200 KA
Special Features Designed with the industry leading Mersen TPMOV® Technology (internally fused) Premium 200kA surge capacity for longer life and higher single impulse withstand Includes EMI/RFI filter for cleaner attenuation LED status indicator (ON = Good, OFF = Replace) LED phase loss indicators (ON = Operational, OFF = Maintenance Required) NEMA 4X enclosure for outdoor or indoor use Mounting hub and mounting feet for installation flexibility Optional audible alarm and remote dry contacts For use in ANSI/UL Type 1 or 2 SPD installations Up to 10 Modes of Protection (L-N, L-L, L-G, N-G) 10-year warranty
Standard ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793 CSA C22.2, Type 1 SPD ANSI/IEEE C62.41.1, C62.41.2, C62.45 UL96A Lightning Protection
UPC 782001470982
GTIN 00782001470982
Type of Indicators LED and Remote Audible Alarm
Voltage Rating 240
