Leviton®

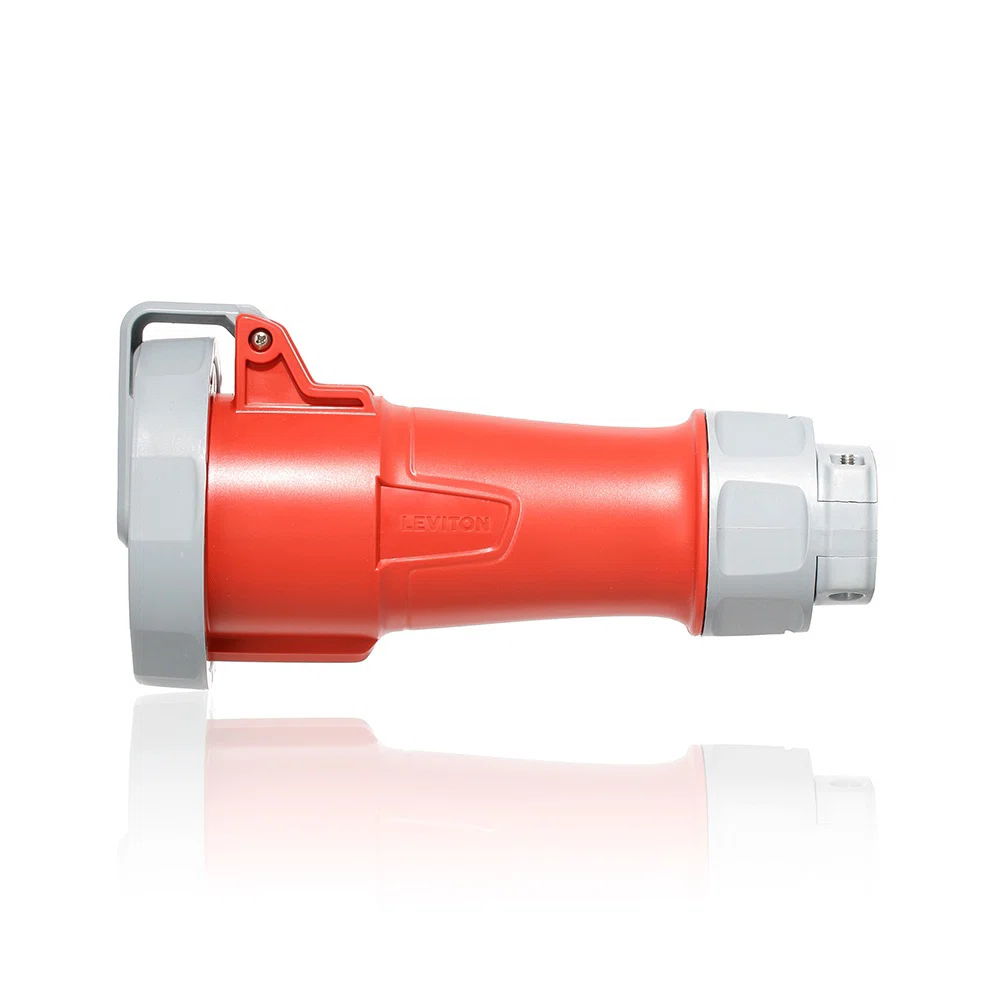

330C7WLEV 3-Phase 7-Clock Position Dust/Watertight Pin and Sleeve Connector With Standard Clamp, 125 V, 30 A, 2 Poles, 3 Wires, Red

MFR:
Leviton
MFR #:
330C7WLEV
UPC:
078477921586
Item #:
1315824

Availability

Location Available Qty
Available Available to Order
$519.14 each

Leviton® Pin and Sleeve Connector, 3-Phase 7-Clock Position Dust/Watertight, Series: LEV, 125 V, 30 A, 2 Pole, 3 Wires, NEMA 3R/4X/6P/12, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Nylon, Red, 7.84 in L x 4.06 in W Dimensions

Manuals and Documentation

Features

  • Devices are designed to simplify your installation, endure the harshest environments and outlast the competition
  • Improved speed of assembly with threaded housings that have less screws for reduced installation time
  • Plugs and connectors constructed of impact modified nylon and receptacles and inlets made of PBT
  • Nickel plated brass pins and sleeves for added corrosion-resistance
  • Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68
Manufacturer Part Number 330C7WLEV
Brand Leviton®
Manufacturer Leviton
UPC 078477921586
Country Of Origin MX
Amperage Rating 30 A
Color Red
Dimensions 7.84 in L x 4.06 in W
Enclosure IP66/IP67/IP68/IP69K
Material Nylon
Series LEV
Temperature Rating -40 to 60 deg C
Type 3-Phase 7-Clock Position Dust/Watertight
Voltage Rating 125 V
Alternative Part Number 14825137
Manufacturer Item Status Active
Country USA
Warranty 5 years Limited
Standards Approvals CE Certified | CSA C22.2 No. 182.1-13 | UL 1682 | UL 1686 | NSF 14159-1 | IEC 60309-1 | IEC 60309-2 | NOM-ANCE Certified | UL 94 V-0 Flammability Rating
Application Food and Beverage Facilities, Washdown and Outdoor Applications
Grade Industrial
Nema Rating NEMA 3R/4X/6P/12
Number Of Poles 2
Number Of Wires 3
Terminal Type Screw
