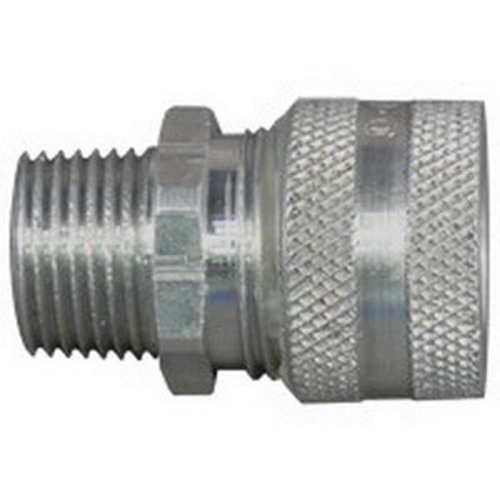

Straight Liquidtight Strain Relief Cord & Cable Connector, 1/4 inch, 0.156 - 0.25 inch, Aluminum
MFR: Appleton Electric
MFR #: CG-1525
UPC: 781381515719
Item #: 131490
Straight Liquidtight Strain Relief Cord & Cable Connector, 1/4 inch, 0.156 - 0.25 inch, Aluminum
MFR #: CG-1525
UPC: 781381515719
Item #: 131490
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$25.49
each
Straight Liquidtight Strain Relief Connector, Size: 1/4 IN, Conductor Range: 0.156 - 0.25 IN, Material: Aluminum, Color: Orange/Gray Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 3/4 IN Height, Standard: Class I, Divi
Manuals and Documentation
- Catalog Number
- CG-1525
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
- Color
- Orange;Gray Label
- Conductor Range
- 0.156 - 0.25 IN
- Connection
- Threaded Hub
- Material
- Aluminum
- NEMA Rating
- 3R
- Special Features
- For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Copper free (4/10 of 1 PCT or less) aluminum cap; Neoprene sealing grommet
- Standard
- Class I, Division 2, Class II, Division 1 And 2 Class III, CSA C22.2 No. 18.3, 065178
- UPC
- 781381515719
- GTIN
- 00781381515719
- Item Type
- Straight Liquidtight Strain Relief Connector
- Size
- 1/4
