Hubbell Wiring Device - Kellems

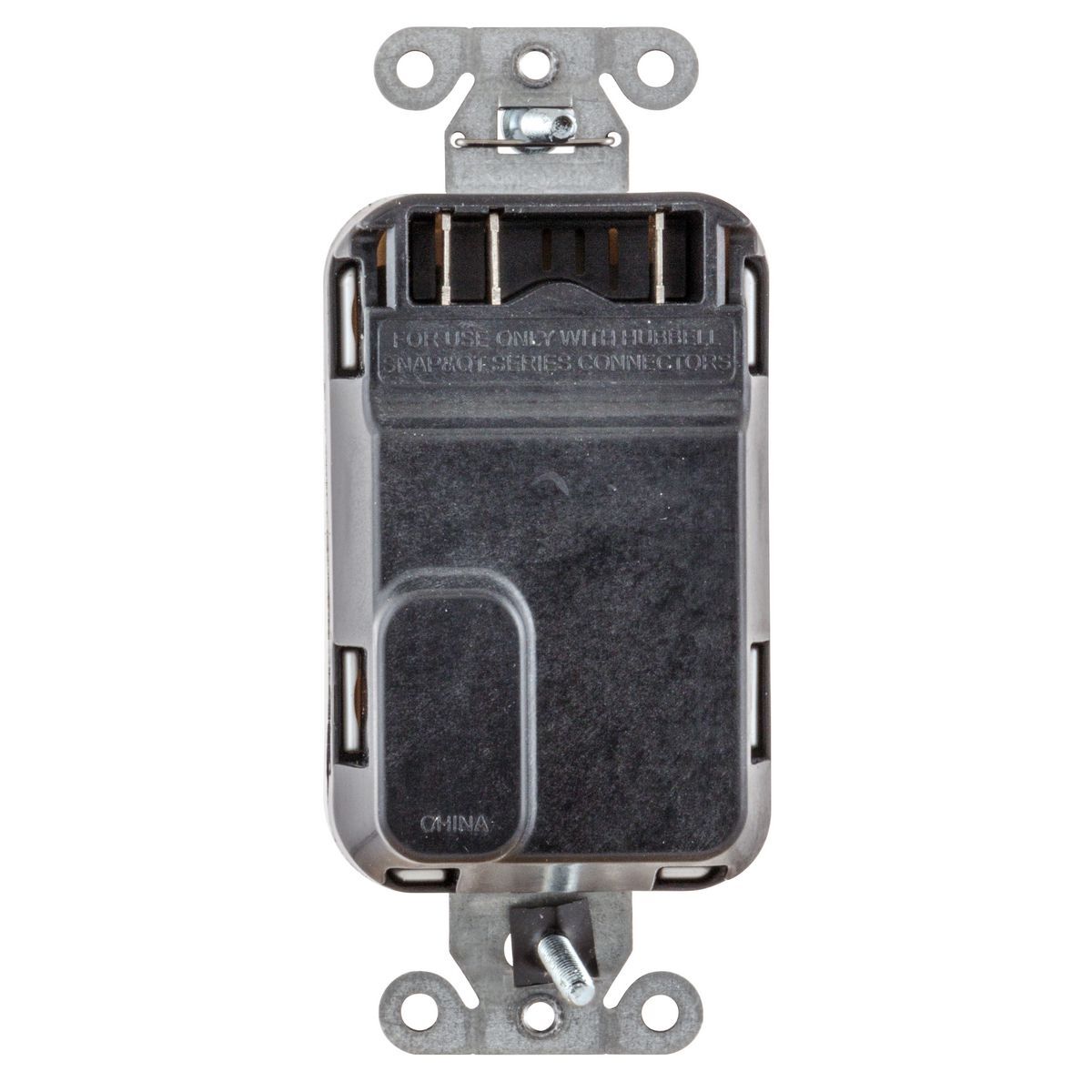

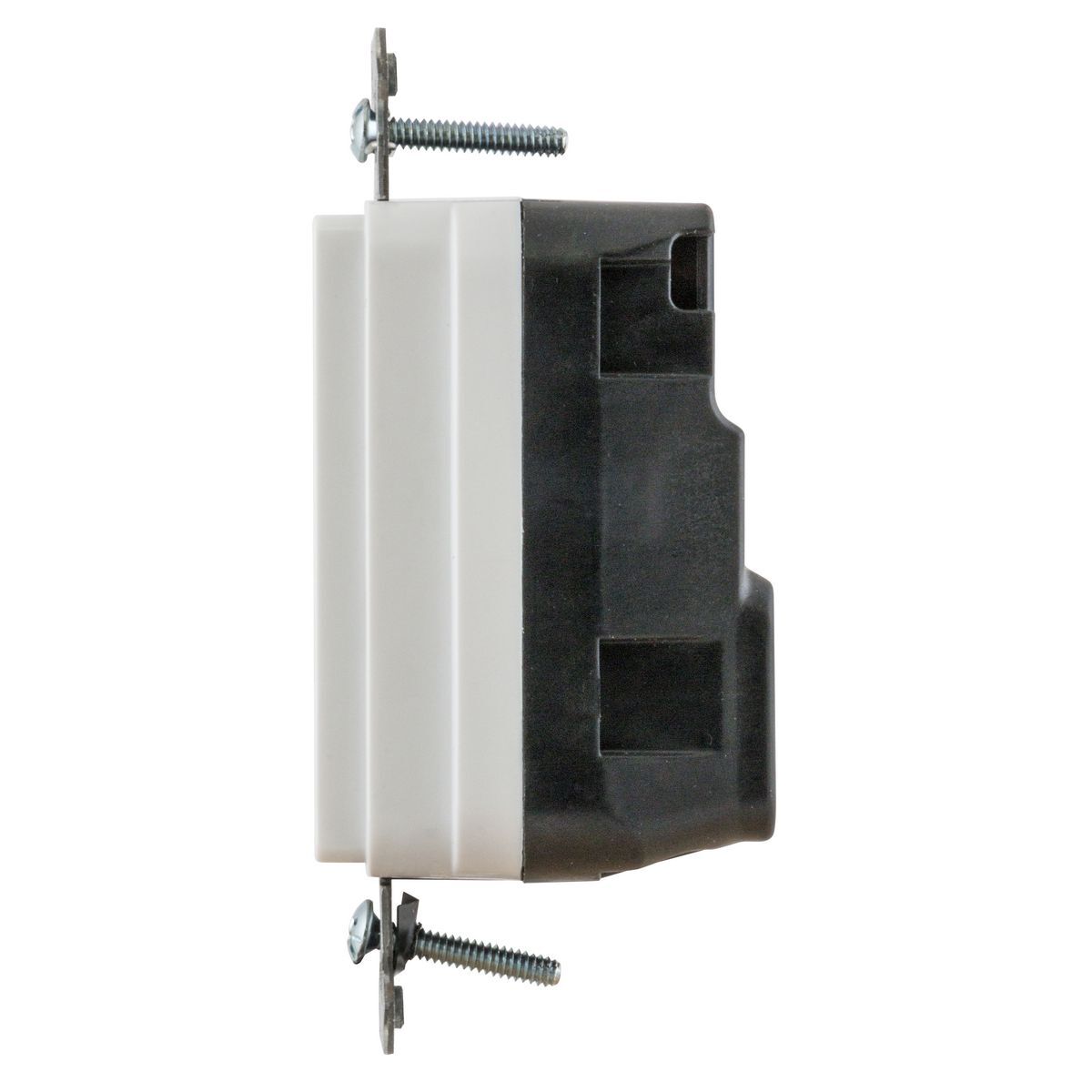

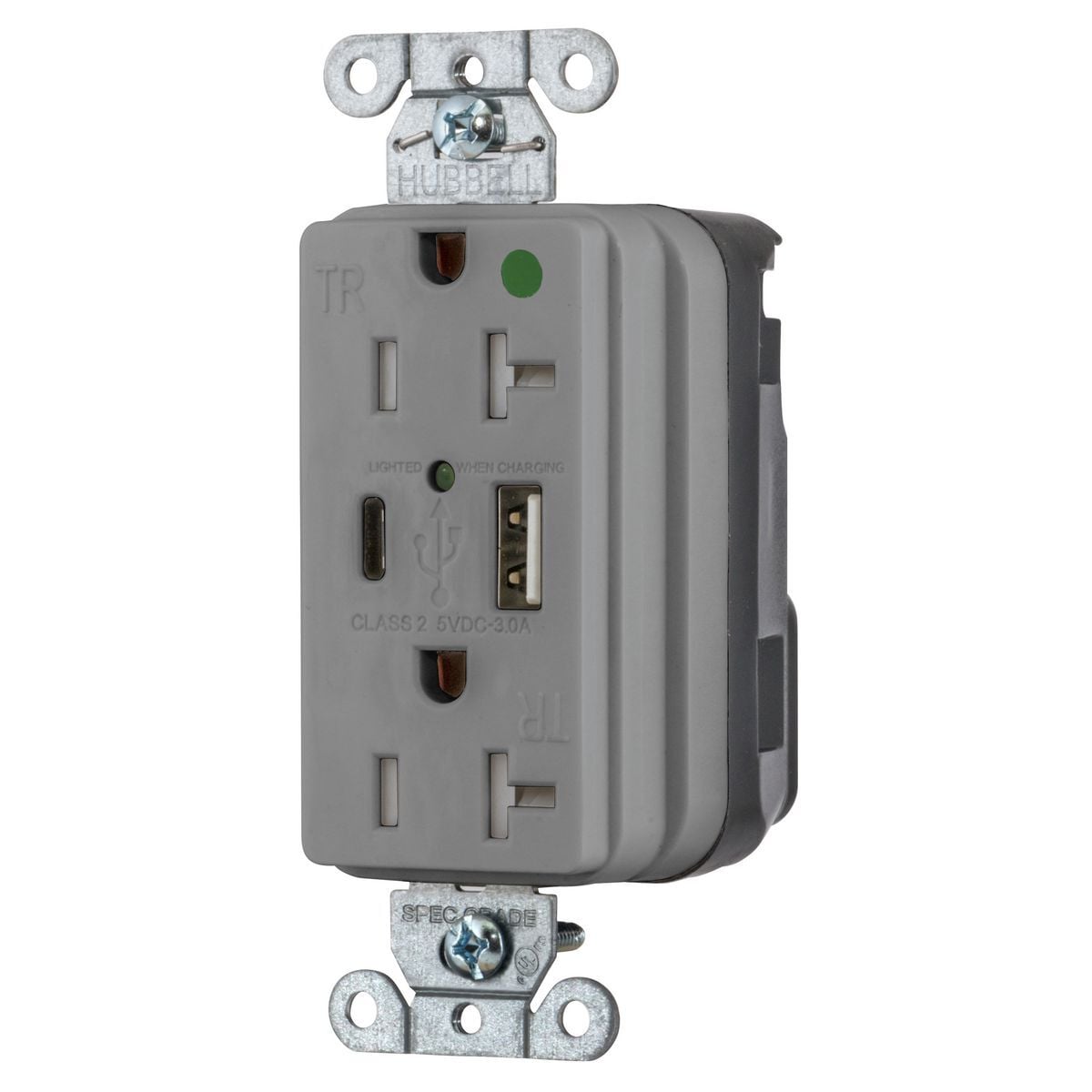

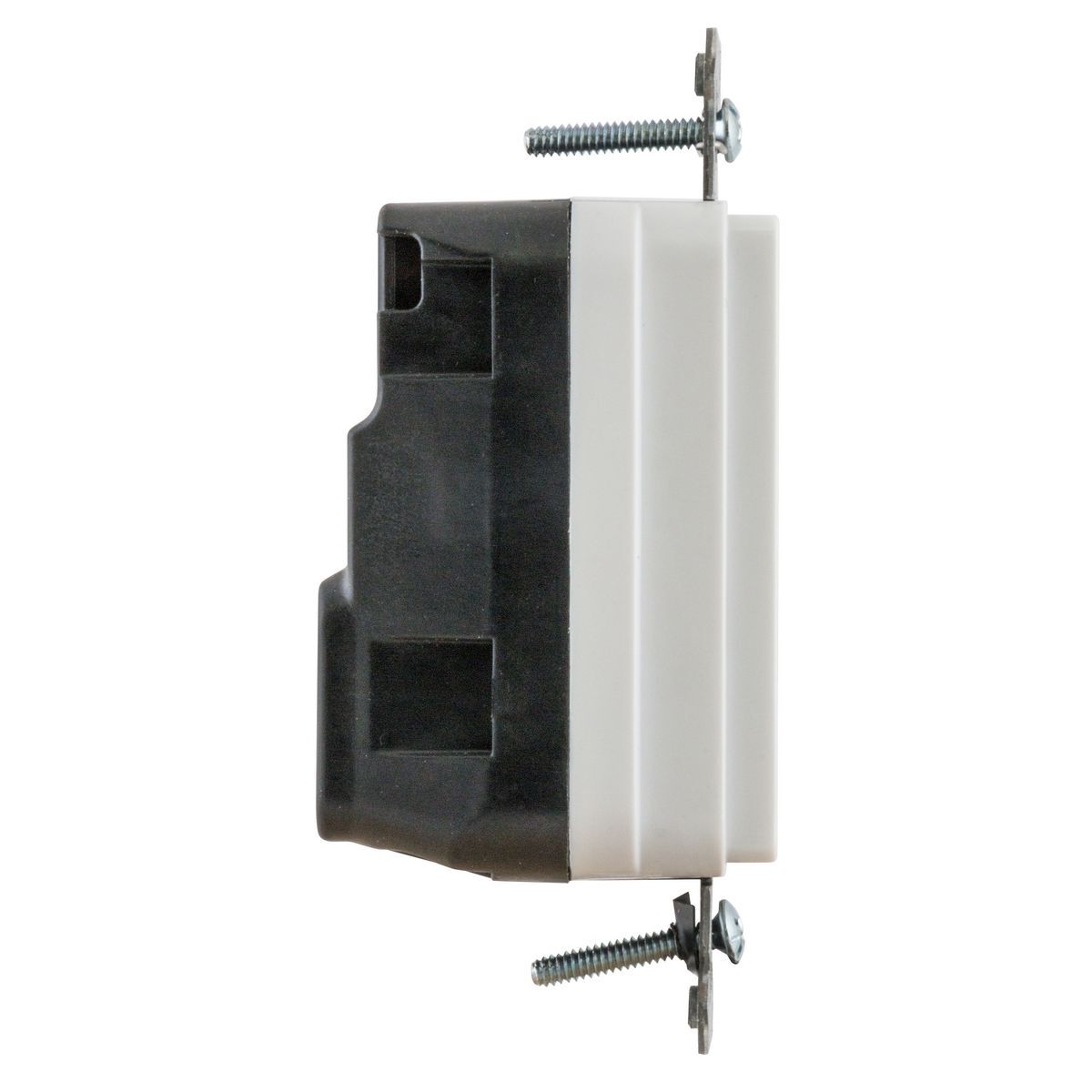

SNAP8300UACGY Decorator Duplex Straight Blade USB Charger Receptacle, 20 A, 125 V DC, 2500 W, 2 Poles, 3 Wires, Gray

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SNAP8300UACGY
UPC:
883778308628
Item #:
1313456

Availability

Location Available Qty
Available Available to Order

SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.

Manuals and Documentation
Catalog Number SNAP8300UACGY
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 20
Application Hospital Grade
Color Gray
Connection Terminal Screws
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire Grounding
Special Features SNAPconnect®, (2) 20A 125 Duplex Ports, (1) Type A, (1) Type C USB, LED Indicator
Standard NEMA, UL, CSA, Fed Spec.
UPC 883778308628
GTIN 00883778308628
Item Type One Type A, One Type-C USB Port
Size Standard Sized Product
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Temperature Rating Maximum continuous 75 Degrees C, minimum -40 Degrees C (w/o impact)
Voltage Rating 125
Wattage 2500 W
Wire Size #14AWG to #10AWG
