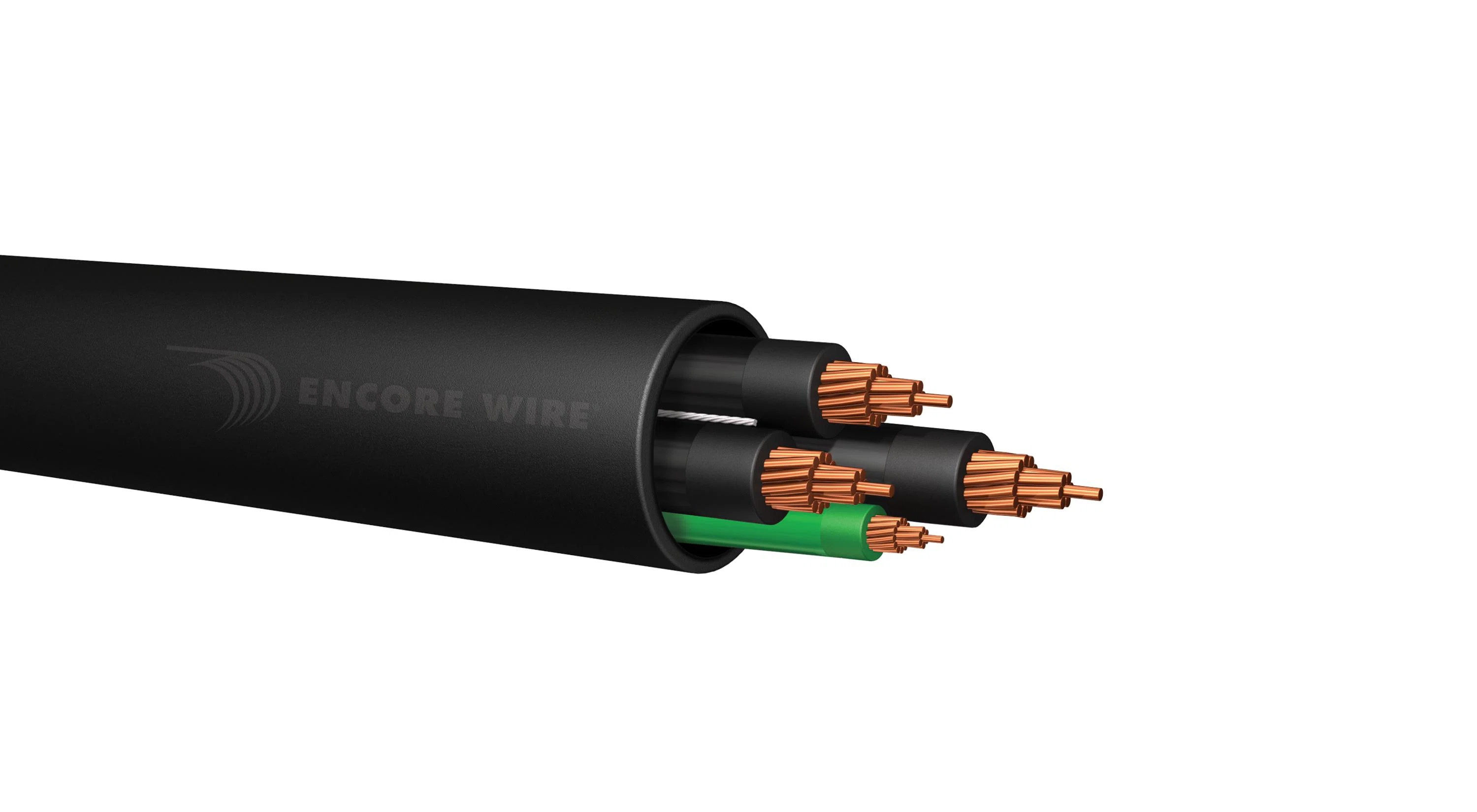

115331601098 Type TC THNN Tray Cable With Insulated Ground, 600 V AC, (4) 2, 6 AWG Stranded Copper Conductor
- MFR:
- Encore Wire
- MFR #:
- 115331601098
- UPC:
- 739373894915
- Item #:
- 1312769
115331601098 Type TC THNN Tray Cable With Insulated Ground, 600 V AC, (4) 2, 6 AWG Stranded Copper Conductor
- MFR #:
- 115331601098
- UPC:
- 739373894915
- Item #:
- 1312769
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Encore Wire Tray Cable, Type TC THNN, 600 V AC, 130 A, 4 Conductors, Stranded Copper Conductor, 2, 6 AWG Conductor, 1.112 in OD, PVC Insulation, PVC Jacket, Black Jacket, 90 deg C
Manuals and Documentation
Features
- Bare, soft annealed stranded copper conductors per ASTM-B3, ASTM-B8 and ASTM-B787
- High dielectric strength, heat and moisture resistant
- The insulated conductors are cabled together with a green insulated ground and with or without fillers as required to form a round compact core
- Nylon rip-cord is supplied for easy stripping
- Black insulation with ICEA method 4 printed number
- A flame retardant, sunlight resistant, black PVC jackets is applied over shielded core
- Soft, uncoated copper per ASTM-B787, insulated green ground
| Manufacturer Part Number | 115331601098 |
| Brand | Encore Wire |
| Manufacturer | Encore Wire |
| UPC | 739373894915 |
| Country Of Origin | US |
| Amperage Rating | 130 A |
| Conductor Size | 2, 6 AWG |
| Conductor Type | Stranded Copper |
| Insulation Material | PVC |
| Jacket Color | Black |
| Jacket Material | PVC |
| Number Of Conductors | 4 |
| Outside Diameter | 1.112 in |
| Temperature Rating | 90 deg C |
| Type | Type TC THNN |
| Voltage Rating | 600 V AC |
| Alternative Part Number | 20898758 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | RoHS Compliant | REACH Compliant | UL File No. E-179429 | Buy American Act Compliant |
| Application | Indoor Applications |
