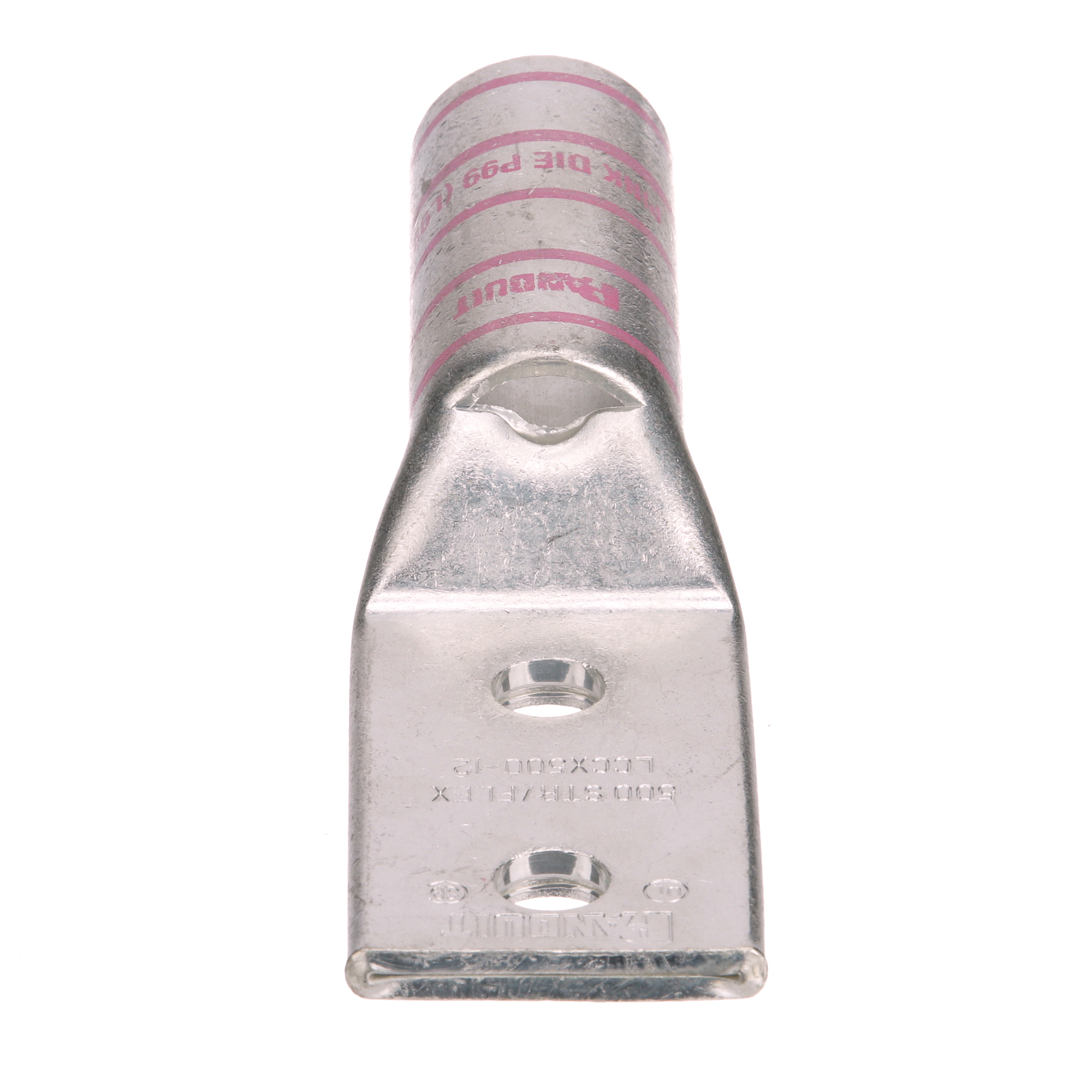

LCCX500-12-6 Pan-Lug 2-Hole Compression Connector Lug With Inspection Window, 500 kcmil, 535.3 kcmil Extra-Flexible/Flexible/Stranded Copper Conductor, Die Code: P99, 1/2 in Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCCX500-12-6
- UPC:
- 074983437931
- Item #:
- 13104
LCCX500-12-6 Pan-Lug 2-Hole Compression Connector Lug With Inspection Window, 500 kcmil, 535.3 kcmil Extra-Flexible/Flexible/Stranded Copper Conductor, Die Code: P99, 1/2 in Stud, Tin Plated Copper
- MFR #:
- LCCX500-12-6
- UPC:
- 074983437931
- Item #:
- 13104
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$90.9689
each
The LCCX500-12-6 Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Manuals and Documentation
| Catalog Number | LCCX500-12-6 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Pink |
| Material | Tin-Plated Copper |
| Number of Holes | 2 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| UPC | 074983437931 |
| GTIN | 00074983437931 |
| Item Type | Compression Lug |
| Size | 500 kcmil Class G, H, I, K, M and 535.3 kcmil DLO |
| Stud Size | 1/2 IN |
