Appleton

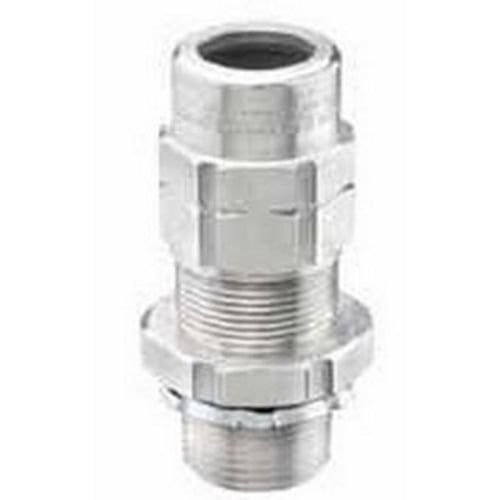

TMC2-050099A TMC2 Cable Gland Connector, 1/2 in Trade, 0.69 to 0.99 in Cable Openings, Copper Free Aluminum

MFR:
Appleton Electric
MFR #:
TMC2-050099A
UPC:
781381300704
Item #:
131006

Availability

Location Available Qty
Available Available to Order

TMC2 Series Cable Gland Connector, Size: 1/2 IN, Material: Copperfree Aluminum, Enclosure: IP66, Nema Rating: NEMA 4X, Temperature Rating: -60 To 110 DEG C, Connection: NPT, Dimensions: 1.48 IN Across Flat X 1.6 IN Across Corner X 2-

Manuals and Documentation
Catalog Number TMC2-050099A
Manufacturer Appleton Electric
Brand Appleton
Country of Origin India
Made in USA No
Application For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable
Connection NPT
Enclosure IP66
Material Copperfree Aluminum
NEMA Rating 4X
Special Features TMC2 connectors provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor; Simplified two piece design; Integral o-ring face seal providing - 4X and IP66; Independent sealing and armor clamping; True 360 DEG grounding; Removable cable armor end stop accommodates larger insulated conductors; Superior pull out prevention; Compact slim profile; Reduced installation time (no disassembly required); Widest cable acceptance range; Re-usable design; Additional integral deluge proof seal for protection in extreme offshore and onshore environments; Stainless steel grounding spring; LSF-TPE (halogen free) bushing; Nylon end stop washer; Viton o-ring
Standard Class I, Division 2, Groups A, B, C, D; Class I, Zones 1 And 2, AExe II AEx tA IIC; Class I, Zones 1 And 2, Exe II Ex tA IIC; Class II, Divisions 1 And 2, Groups E, F, G; Class III, Divisions 1 And 2; UL 514B, 2225, CSA C22.2 No. 174, 249506
UPC 781381300704
GTIN 00781381300704
Item Type TMC2 Series Cable Gland Connector
Size 1/2
Temperature Rating -60 To 110 DEG C
