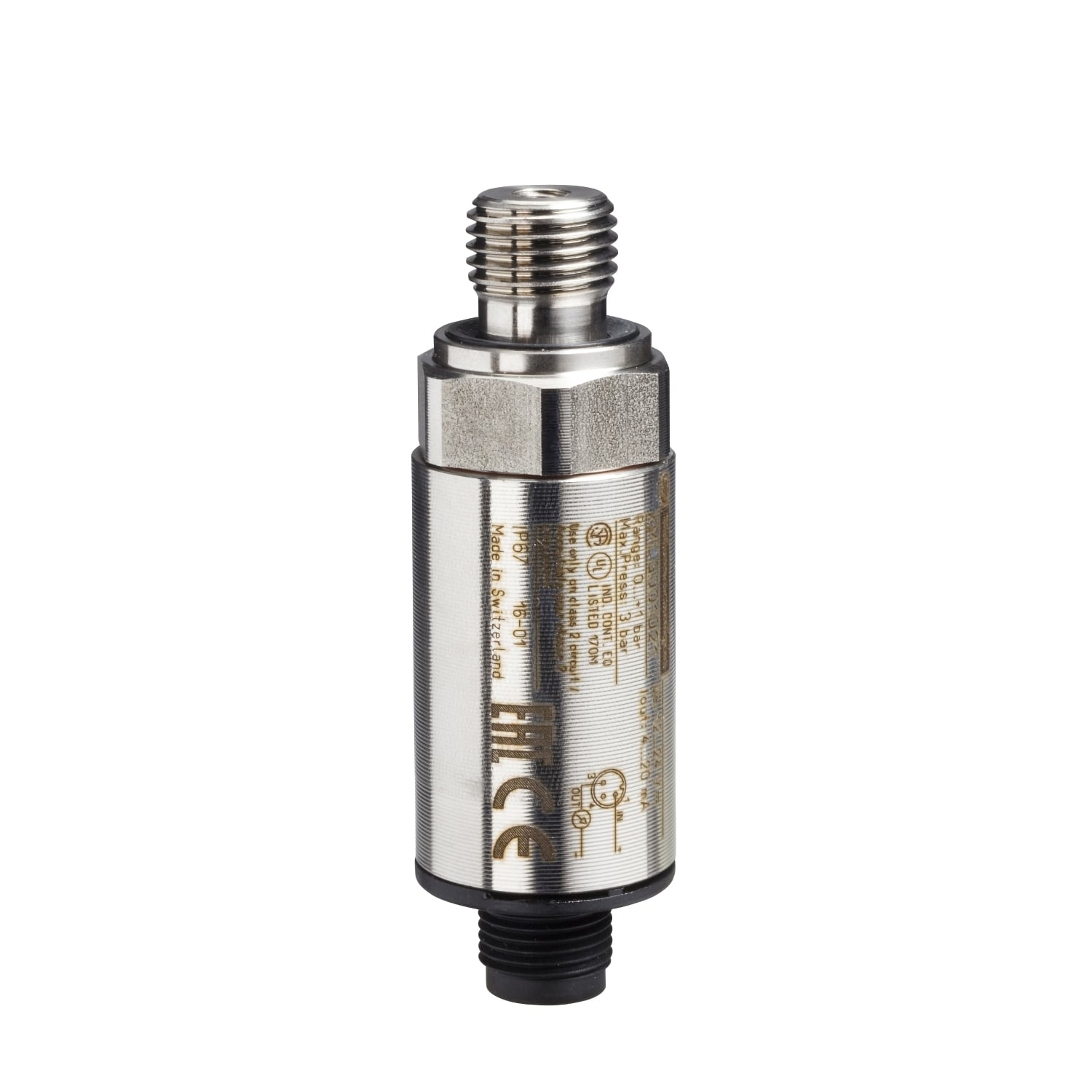

XMLG001D21 OsiSense XM Fixed Differential Electronic Pressure Transmitter Sensor, 14.50 psi, <2 ms Response, Analog Output, 12 to 24 V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XMLG001D21
- UPC:
- 785901964506
- Item #:
- 1309426
XMLG001D21 OsiSense XM Fixed Differential Electronic Pressure Transmitter Sensor, 14.50 psi, <2 ms Response, Analog Output, 12 to 24 V DC
- MFR #:
- XMLG001D21
- UPC:
- 785901964506
- Item #:
- 1309426
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This XMLG electronic pressure sensor has a a pressure rating of 1 bar, a M12 connector electrical connection and a G 1/4 a DIN 3852-e male fluid connection. This pressure transmitter sensor is designed for accurate pressure control of fresh water (0C-125C), hydraulic oils and corrosive fluids between -15C and 125C. It is fixed directly on tubage. It has a ceramic Al2O3 (Aluminium Oxide) cell and a stainless steel (AISI 303) body, this makes it compatible with corrosive non alkaline fluids. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with EN/IEC 61326-2-3, CSA C22.2 No.14, UL 508, EAC. Well suited for a wide range of fluid types and applications from hydraulic and pneumatic installations to water pumps and machine tooling.
Manuals and Documentation
| Catalog Number | XMLG001D21 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Application | Control circuit |
| Enclosure | NEMA 4 |
| Process Connection | G 1/4A (MALE) DIN 3852-E |
| Special Features | 3 PINS 1 MALE CONNECTOR M12,IP66 CONFORMING TO EN/IEC 60529-IP67 CONFORMING TO EN/IEC 60529 |
| Standard | 1 KV 42 OHM EN/IEC 61000-4-5-500 KV 12 OHM EN/IEC 61000-4-5,15 KV IN AIR EN/IEC 61000-4-2-8 KV ON CONTACT EN/IEC 61000-4-2,200 V/M 80-1000 HZ EN/IEC 61000-4-3,30 A/M 50 HZ EN/IEC 61000-4-8,30 V 0.15-80 HZ)EN/IEC 61000-4-6,4 KV EN/IEC 61000-4-4,CE-EN/IEC 61326-2-3,EAC-CSA C22.2 NO 14-UL 508,IP66 EN/IEC 60529-IP67 EN/IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=863956&lang=en-us |
| UPC | 785901964506 |
| GTIN | 03389110969511 |
| Item Type | Pressure transmitter;Electronic pressure sensors;Fixed differential |
| Operating Temperature | -15-85 A Degrees C |
| System Pressure | 14.50 |
| Temperature Rating | -15…125 DEGRESS C |
