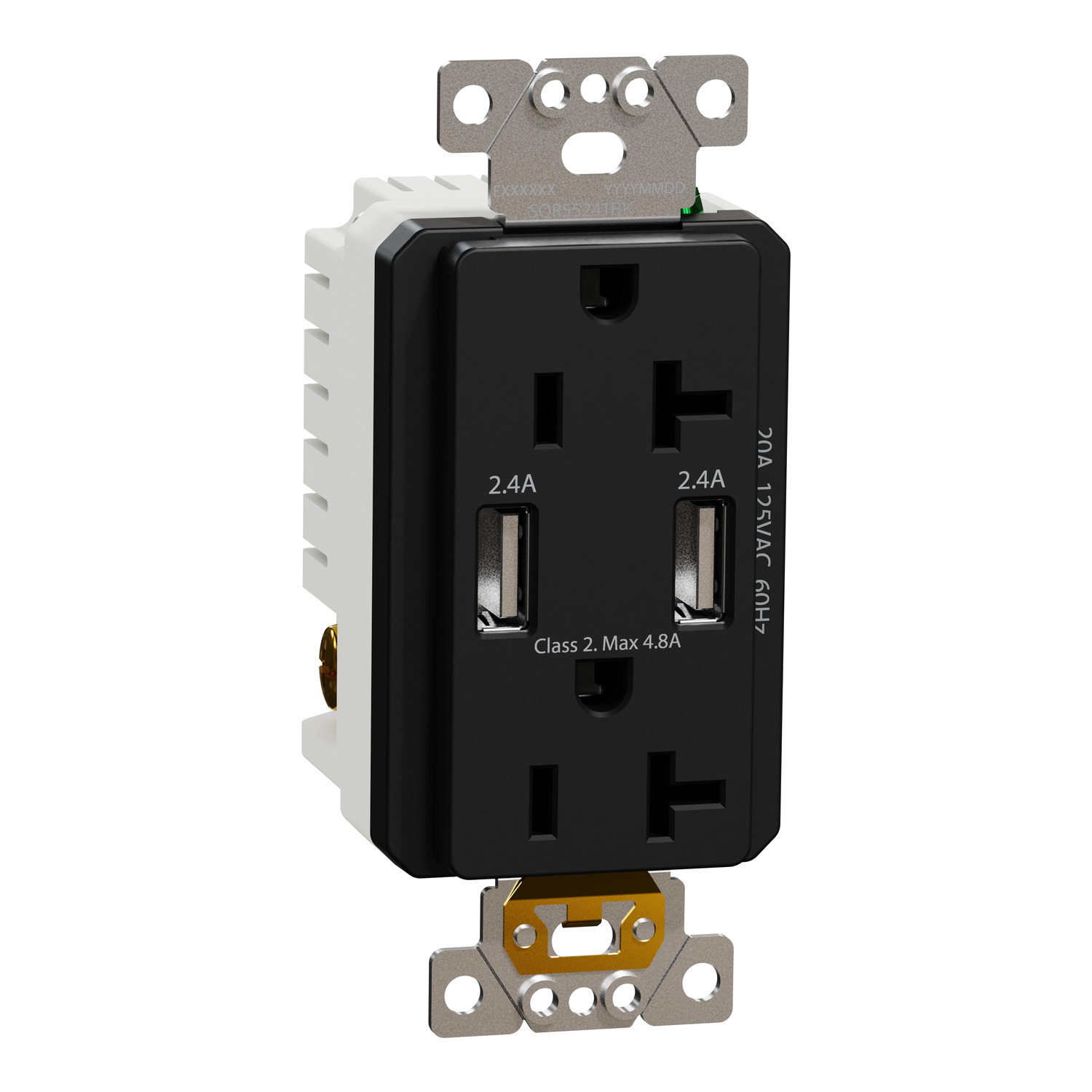

SQR55241BK X Series, 125 V, 20 A, 2 x 2P + E Poles, Black

MFR:
Schneider Electric
MFR #:
SQR55241BK
UPC:
785901546566
Item #:
1308055

Availability

Location Available Qty
Available Available to Order
$46.22 each

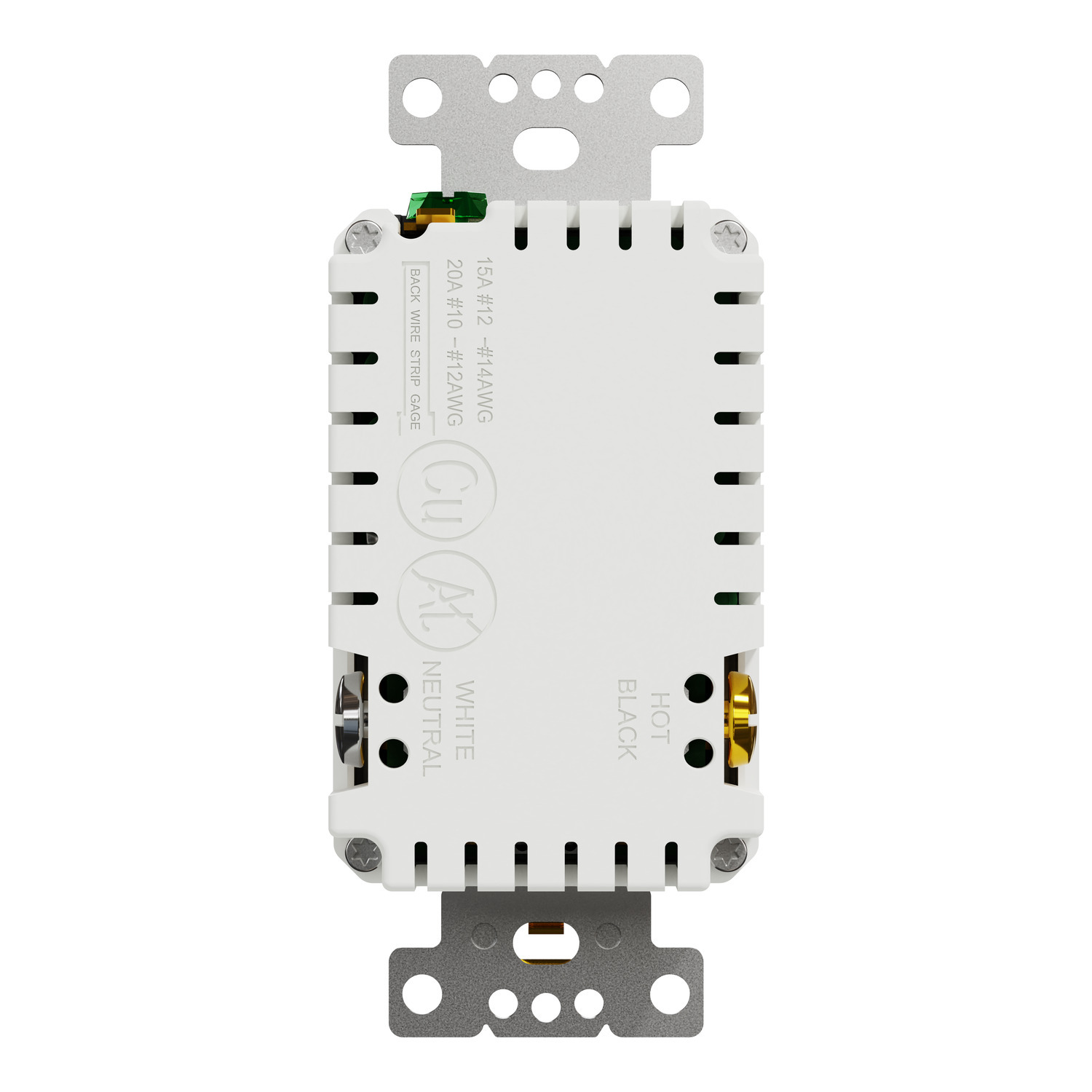

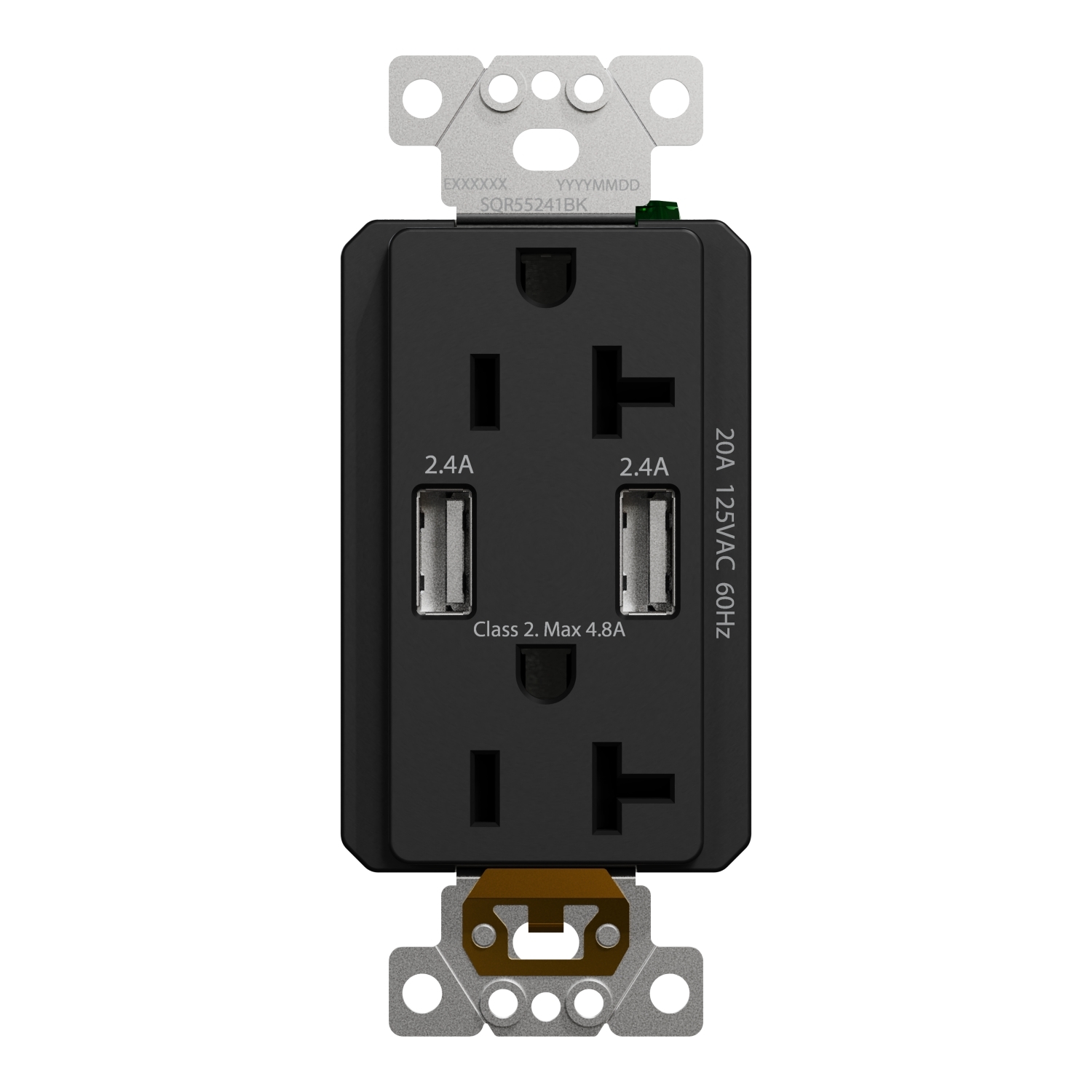

The Square D X Series USB A/A Duplex Decorator Tamper Resistant Outlet with back wire clamps combines a traditional receptacle with modern USB-A charging into a single receptacle. Users can plug 2 USB cables and 2 power cords at the same time for applications where power density is important. This device supports 5 volts DC and up to 2.4A per USB A port (4.8A total) to quickly charge modern electronic devices. This outlet socket has a 20A current rating. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. Wiring and installation is fast and easy with back wire pressure plate and ground screw pressure plate. It has a width of 44mm, a height of 103mm and a depth of 45mm. By satisfying the UL 1310 and the UL 498 standard, this USB receptacle is cUlus certified. This device supports up to 2.4A per USB A port (4.8A total) to quickly charge modern electronic devices. The dimensions are (W) 44mm x (H) 103mm x (D) 45mm. This device is black with matte surface finish. Use both USB-A ports to charge two devices at the same, adding time-saving convenience to your home. This device is compliant with UL 1310, UL 498 standard and cULus certification.

Manuals and Documentation
Catalog Number SQR55241BK
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:2 years
Country of Origin China
Made in USA No
Color Black
Material Plastic: strap;metal: fixing frame
Mounting Screw
Number of Gangs 1 gang
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=508635397&lang=en-us
UPC 785901546566
GTIN 00785901546566
Item Type USB charger + socket-outlet
