Telemecanique

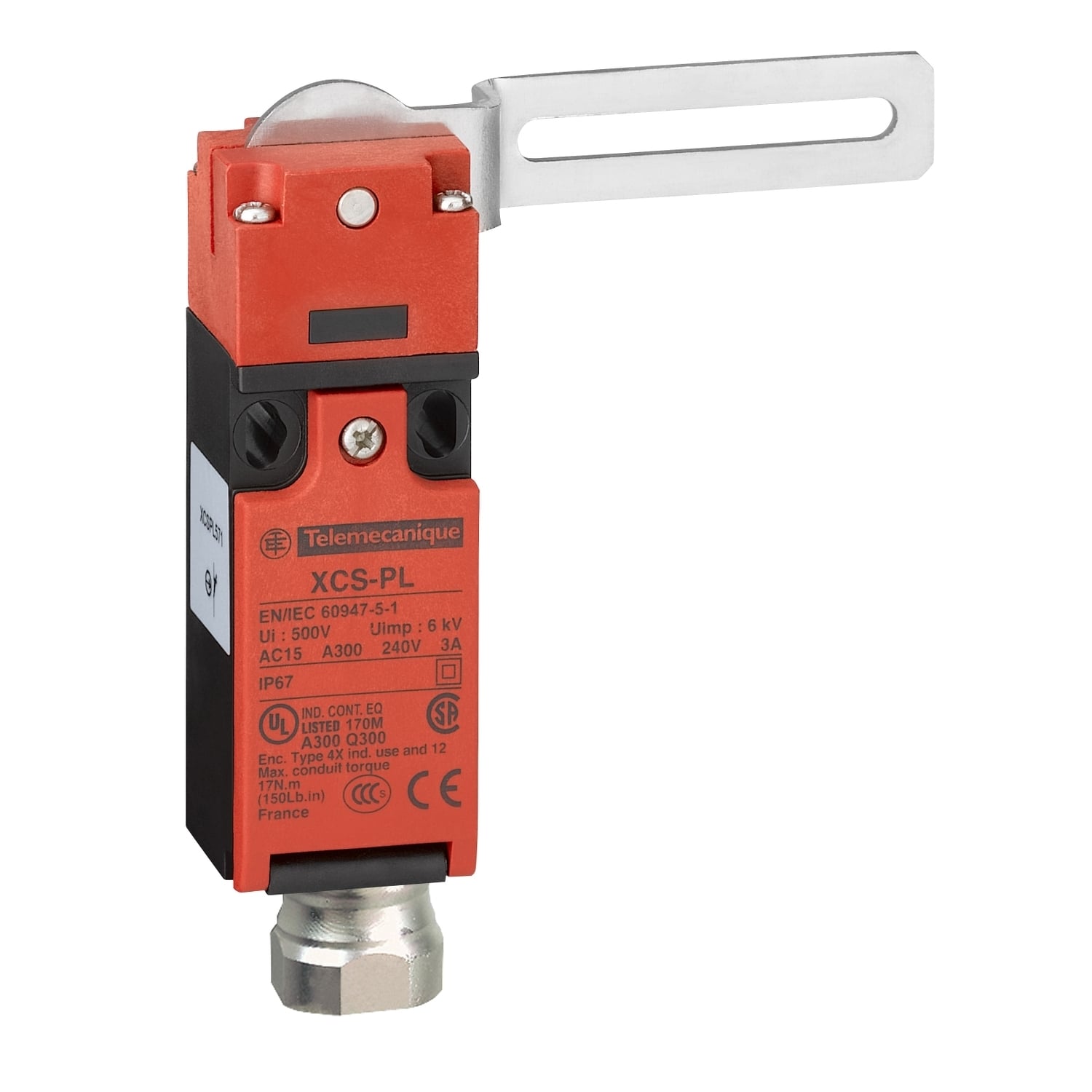

XCSPL573 Preventa Rotary Elbowed Lever Turret Head Safety Interlock Switch, 240/300 V AC, 10 A, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCSPL573
UPC:
785901326700
Item #:
1307243

Availability

Location Available Qty
Available Available to Order
$203.86 each

This XCSPL Safety Limit Switch has a stainless steel turret head rotary elbowed flush lever with an operation contact to the right, a double insulated plastic enclosure and a 1/2" NPT cable gland entry. It has 1 normally open and 1 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals and Documentation
Catalog Number XCSPL573
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Action Slow-break, break before make
Actuator Elbowed flush lever;Stainless steel
Amperage Rating 10
Application TURRET HEAD ROTARY LEVER
Connection Terminal
Contact Configuration 1 NC + 1 NO
Enclosure Polyamide PA66 fibre glass impregnated
Insulation Double insulated
Special Features PLASTIC
Standard 50 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA-UL-BG,EN/IEC 60947-5-4-EN/ISO 12100-CSA C22.2 NO 14-UL 508-EN/IEC 60204-1-EN/IEC 60947-5-1-EN 1088/ISO 14119,IP67 IEC 60529,CLASS II EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859868&lang=en-us
UPC 785901326700
GTIN 03389110866490
Item Type Guard switch
Size 1.18
Operating Temperature -25-70 A Degrees C
