$67.99
each

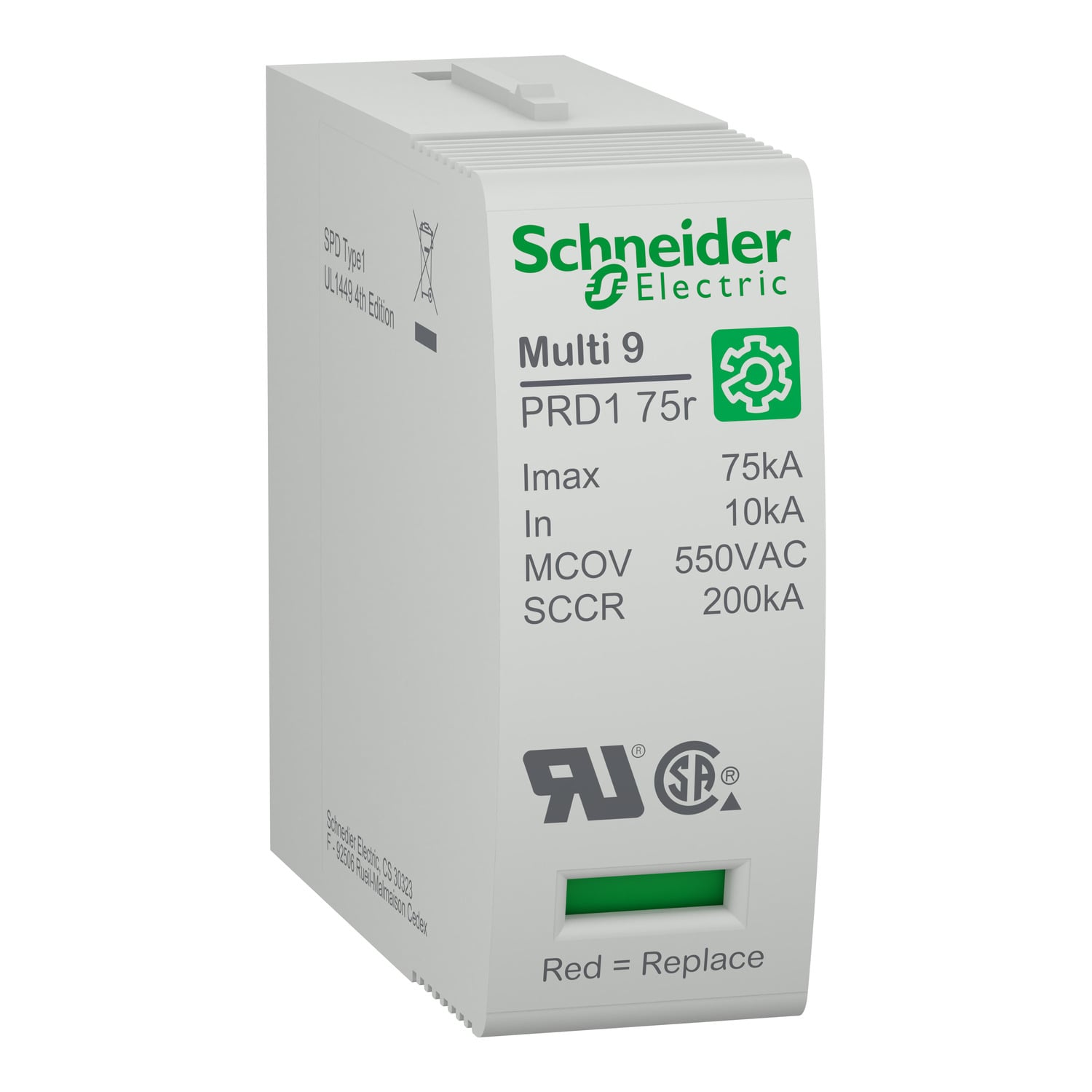

This Multi9 product is a cartridge for PRD1 75r surge protection device. The Imax maximum discharge current is 75kA. The In nominal discharge current is 10kA. The Uc maximum continuous operating voltage is 550VAC. The maximum Up voltage protection level is 1500V. It can be plugged into a surge protecting device module. Its width is 2 pitches of 9mm. The product color is light grey (RAL 7035). The dimensions are (W) 17.5mm x (H) 45mm x (D) 68.5mm. The degree of protection is NEMA 1. The operating temperature is -25C to 60C. The storage temperature is -40C to 85C. It is compliant withUL 1449 standard.
Manuals and Documentation
| Catalog Number | M9LC550 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | France |
| Made in USA | No |
| Number of Poles | 1 |
| Response Time | < 25 ns |
| Special Features | mechanical indicator green and red) |
| Standard | UL 1449 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=533483630&lang=en-us |
| GTIN | 03606481586124 |
| Item Type | Cartridge |
