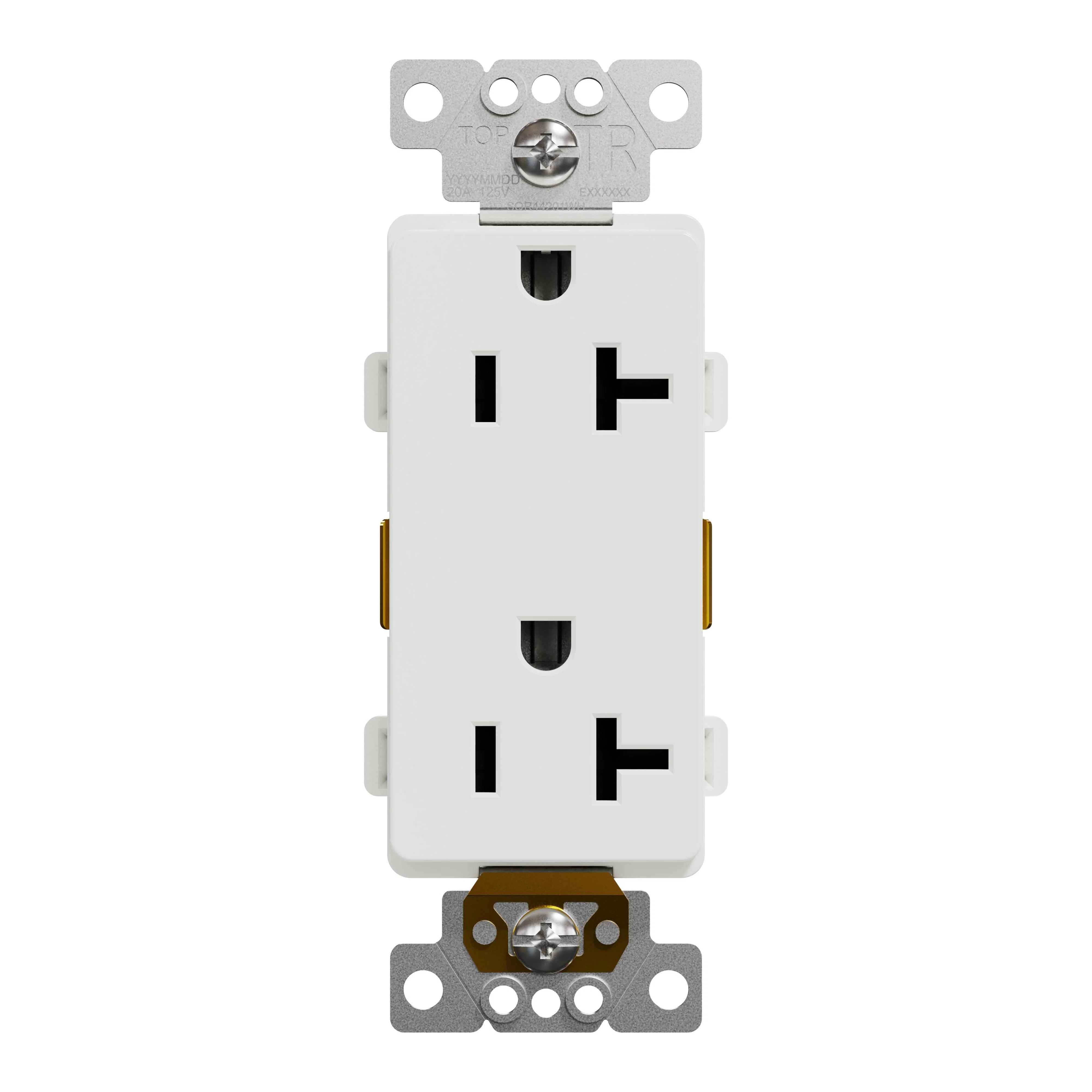

SQR44201WH X Series Socket-outlet, 125 V, 20 A, 2 poles, White
- MFR:
- Schneider Electric
- MFR #:
- SQR44201WH
- UPC:
- 785901544067
- Item #:
- 1304872
SQR44201WH X Series Socket-outlet, 125 V, 20 A, 2 poles, White
- MFR #:
- SQR44201WH
- UPC:
- 785901544067
- Item #:
- 1304872
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

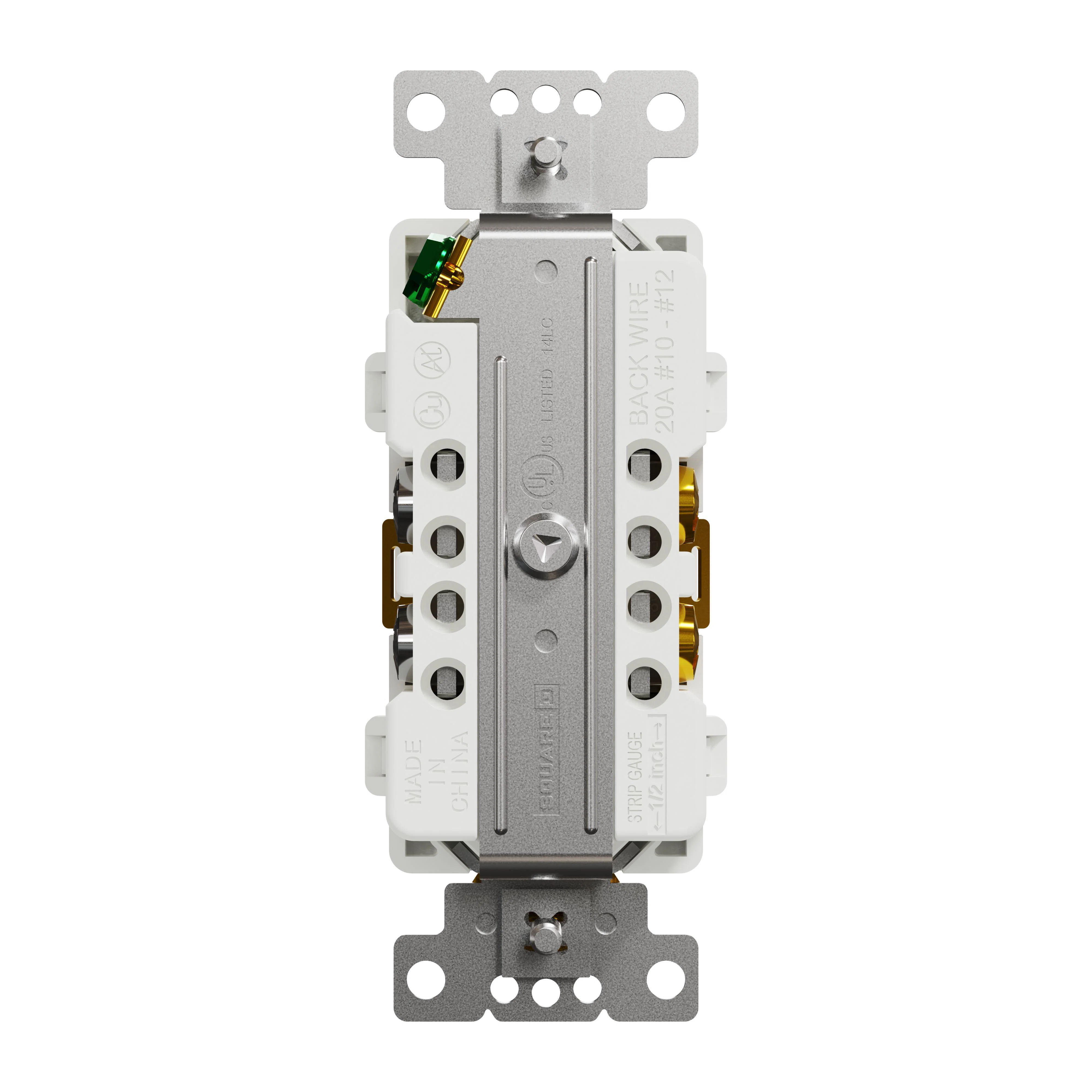

The Square D X Series 20A 125V Tamper Resistant Duplex Decorator Receptacle with side wire clamps provides a fast, safe way to update the look of your home's interior with new, modern receptacles. This outlet socket has a 20A current rating. The rated operational voltage of this device is 120VAC. Each outlet socket unit has two outlet sockets and is used to supply power. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. Enjoy fast wiring with “no-wrapping” screw installation and a self-grounding clip. Elevate safety with discrete, tamper resistant shutters that help keep inappropriate objects out of the socket. This socket outlet has a white frame. The self-grounding feature is a brass ground contact which provides ground retention to metal boxes that eliminates the need to use a ground screw. Its Ue rated operational voltage is 125VAC. Its Ie rated operational current is 20A. By satisfying the NEMA 5-20R, UL 498 standards, this socket outlet is cULus certified. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices. The dimensions are (W) 39mm (1.54in) x (H) 103mm (4.06in) x (D) 31mm (1.22in). This device is white with a matte surface finish. This device is compliant with NEMA 5-20R, UL 498 standard and cULus certification.
Manuals and Documentation
Features
- Residential decorator outlet
- Child-safe design, with tamper-resistant shutters
- Wall plate required, sold separately
- Navigate safely in the dark with sensor-enabled LED outlets
- Commercial grade, ideal for devices that stay plugged in
| Manufacturer Part Number | SQR44201WH |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| UPC | 785901544067 |
| Country Of Origin | CN |
| Amperage Rating | 20 A |
| Color | White |
| Dimensions | 1.54 in W x 4.06 in H x 1.22 in D |
| Material | Plastic strap, Metal fixing frame |
| Series | X Series |
| Type | Socket-outlet |
| Voltage Rating | 125 V |
| Alternative Part Number | 17182969 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 2 Years |
| Standards Approvals | REACH Compliant | UL 498 NEMA 5-20 R | PROP65: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65 Warnings.ca.gov | CULus Listed |
| Application | Power supply |
| Frequency Rating | 60 Hz |
| Number Of Poles | 2 |
| Terminal Type | Screw |
