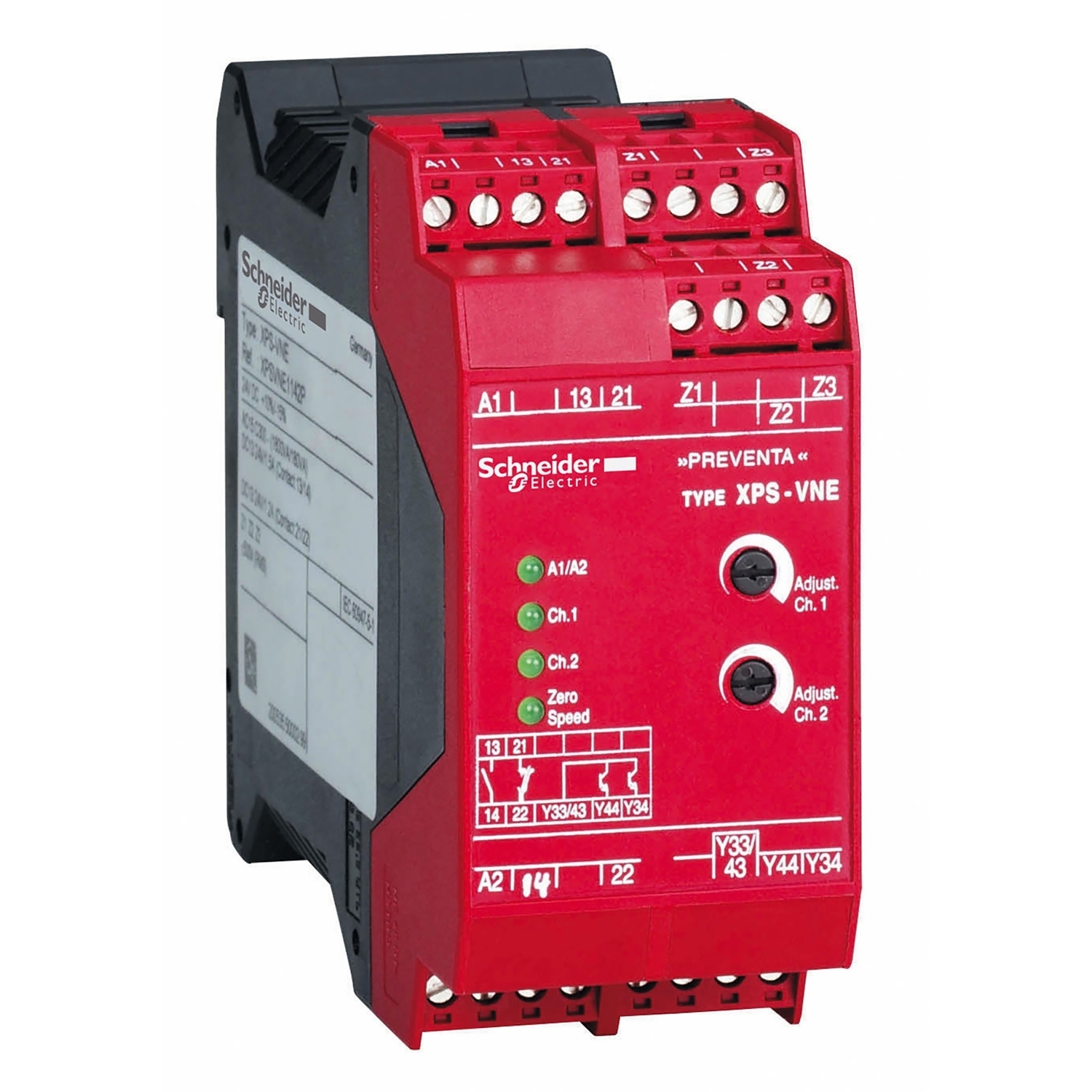

XPSVNE3442P Preventa Safety Relay With (4) LEDs, 1NO-1NC 1 Form A/1 Form B Contact, 115 V AC V Coil
- MFR:
- Schneider Electric
- MFR #:
- XPSVNE3442P
- Item #:
- 130347
XPSVNE3442P Preventa Safety Relay With (4) LEDs, 1NO-1NC 1 Form A/1 Form B Contact, 115 V AC V Coil
- MFR #:
- XPSVNE3442P
- Item #:
- 130347
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This XPSVNE safety module is for zero-speed detection. It meets the requirements of PL c/Category 2 conforming to EN/ISO 13849-1.and SILCL1 conforming to EN/IEC 61508 and EN/IEC 62061. Used in conjunction with XU2S single-beam photo-electric sensors (periodically tested), it establishes a category 2 light curtain conforming to IEC/EN 61496 parts 1 and 2. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.
Manuals and Documentation
| Catalog Number | XPSVNE3442P |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | For zero speed detection;Monitoring XPS AK;monitoring 3-phase motor with variable number of poles and star-delta starting;monitoring 3-phase motor with star-delta starting;monitoring 3-phase motor + variable speed drive;monitoring star-delta motor starter and guard switch type XCS E;monitoring 3-phase motor;monitoring dc motor |
| Connection | Captive screw clamp terminals, removable terminal block flexible 0.2...1.5 mm² without cable end, 2 wires;captive screw clamp terminals, removable terminal block flexible 0.2...2.5 mm² without cable end, 1 wire;captive screw clamp terminals, removable terminal block flexible 0.25...1 mm² with cable end, without bezel, 2 wires;captive screw clamp terminals, removable terminal block flexible 0.25...2.5 mm² with cable end, with bezel, 1 wire;captive screw clamp terminals, removable terminal block flexible 0.25...2.5 mm² with cable end, without bezel, 1 wire;captive screw clamp terminals, removable terminal block flexible 0.5...1.5 mm² with cable end, with double bezel, 2 wires;captive screw clamp terminals, removable terminal block solid 0.2...1 mm² without cable end, 2 wires;captive screw clamp terminals, removable terminal block solid 0.2...2.5 mm² without cable end, 1 wire |
| Input | 500 Vrms |
| Mounting | Din Rail |
| Output | 2 solid state outputs;Relay, 1 NO + 1 NC, volt-free |
| Power Supply | 115 V AC - 15...15 % |
| Standard | UL;CSA;TÜV;MTTFd = 124.1 years EN/ISO 13849-1;DC > 99 % EN/ISO 13849-1;PFHd = 9.26E-9 1/h EN/IEC 62061;Can reach PL d/category 3 EN/ISO 13849-1;can reach SILCL 2 EN/IEC 62061 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1461036&lang=en-us |
| GTIN | 03389119004220 |
| Item Type | Preventa safety module |
