Legrand-Pass & Seymour

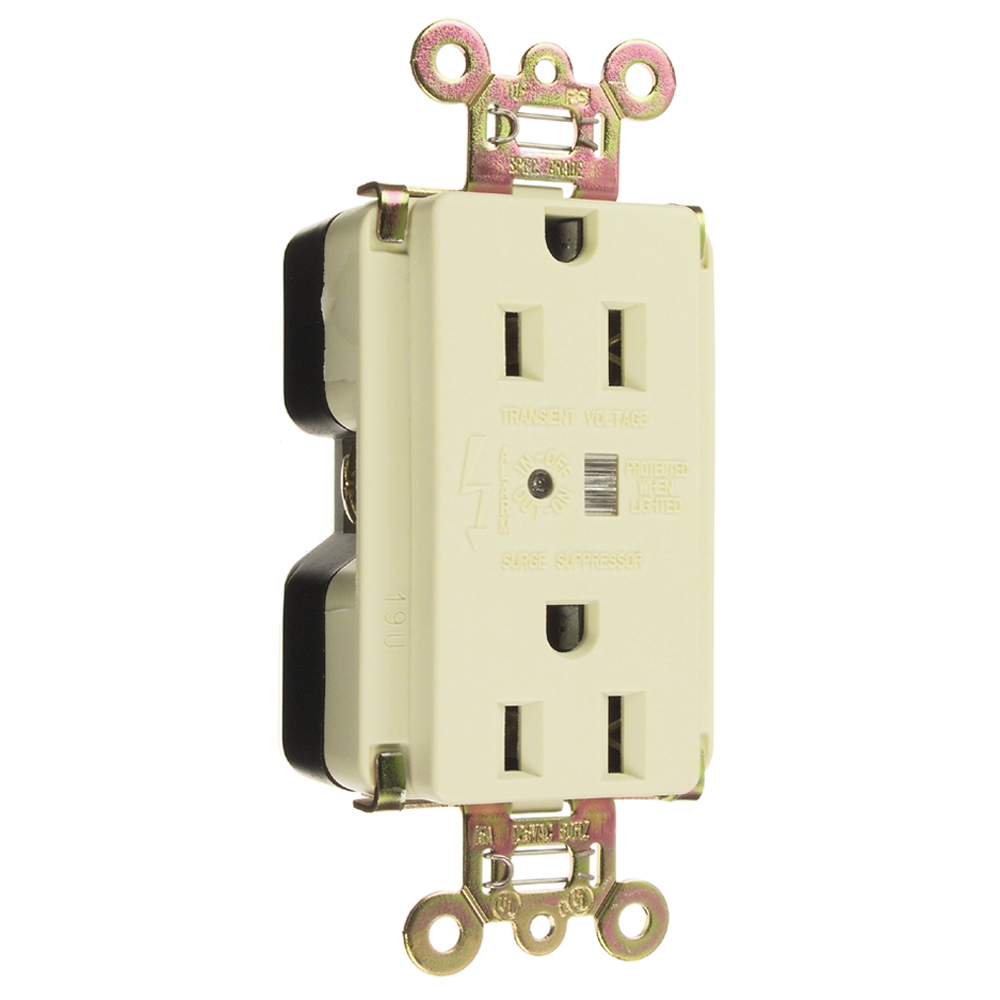

5262ISP 15 Amp 125V Extra Surge Protective Duplex Receptacle, Ivory

MFR:
Legrand-Pass & Seymour
MFR #:
5262ISP
UPC:
785007193381
Item #:
130241

Availability

Location Available Qty
Available Available to Order
$128.95 each

Surge Protective Extra Heavy-Duty Duplex Receptacle offers increased transient protection, reliability and protection notification (with Audible Alarm and LED Indicator). Back and Side Wire, 15A, 125V.

Catalog Number 5262ISP
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin Mexico
Made in USA No
Amperage Rating 15
Application Commercial
Connection Back and side wire
Material Nylon
Mounting Wall
Special Features Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
Standard cUL UL1449, UL498; CSA C22.2 No. 42; ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse).
UPC 785007193381
GTIN 00785007193381
Item Type Spec Grade Surge Protective Receptacle, Audible Alarm with LED Indicator
Size 1.70 L x 1.25 W x 3.75 H
Environmental Conditions Flammability: UL94 V2
Voltage Rating 125
