Square D™

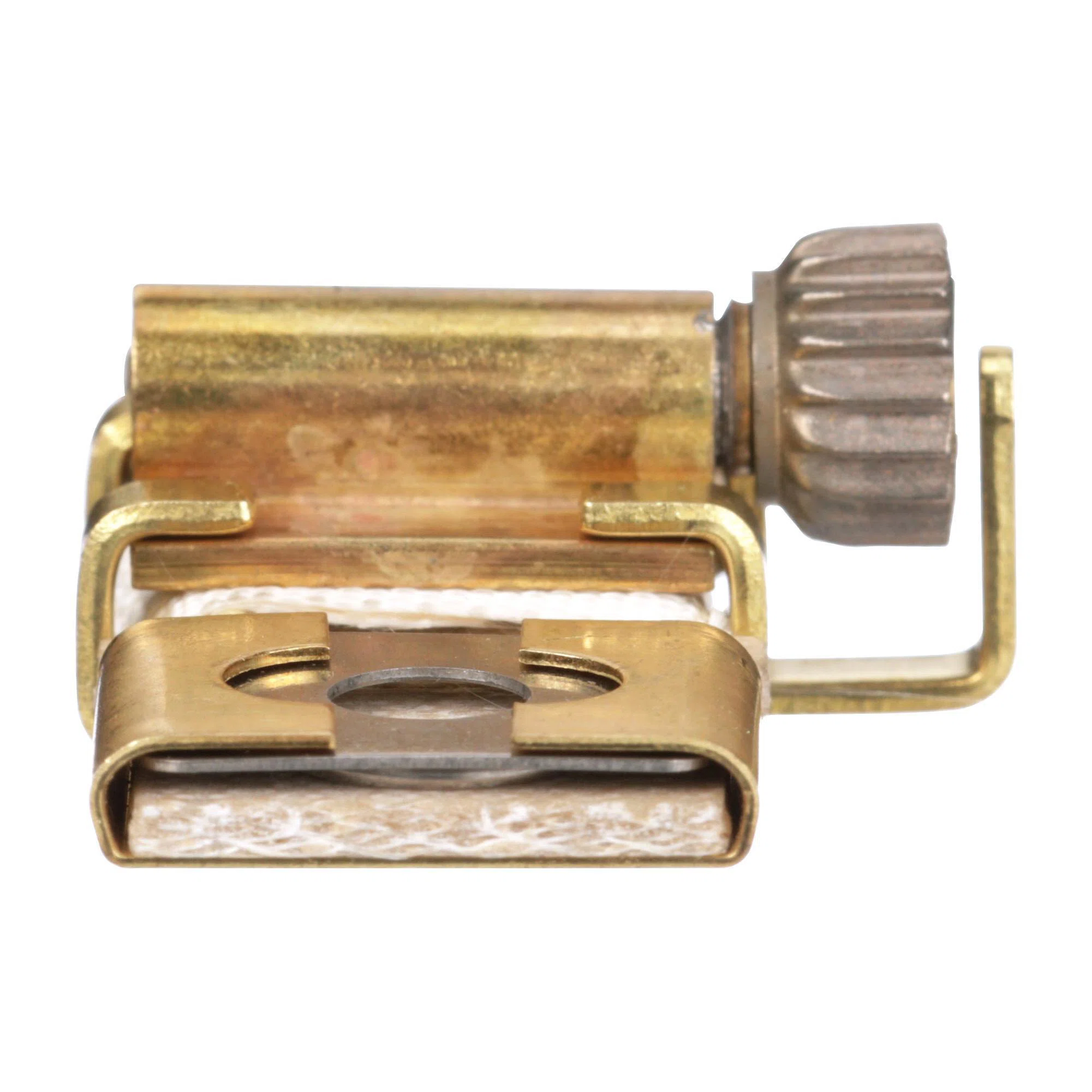

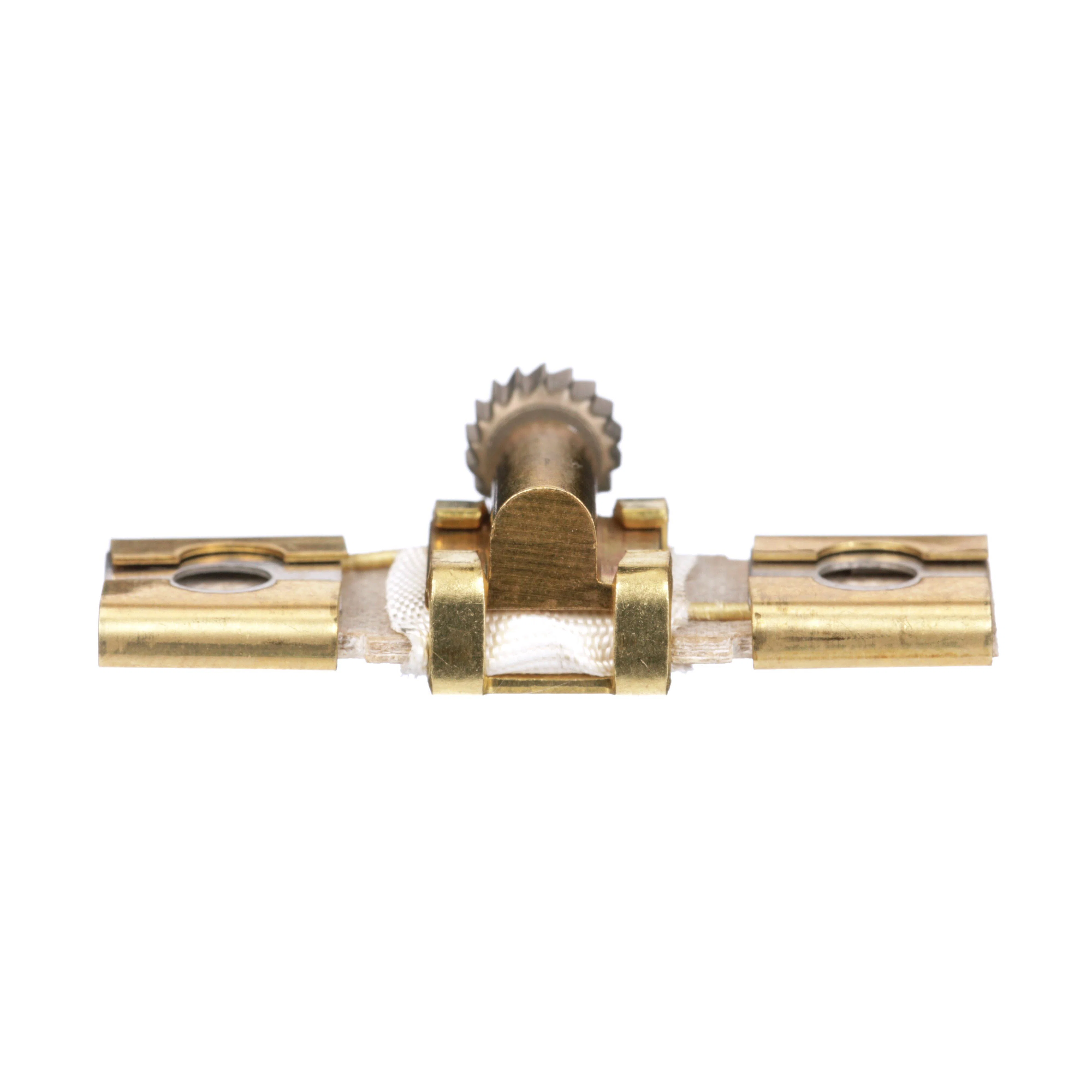

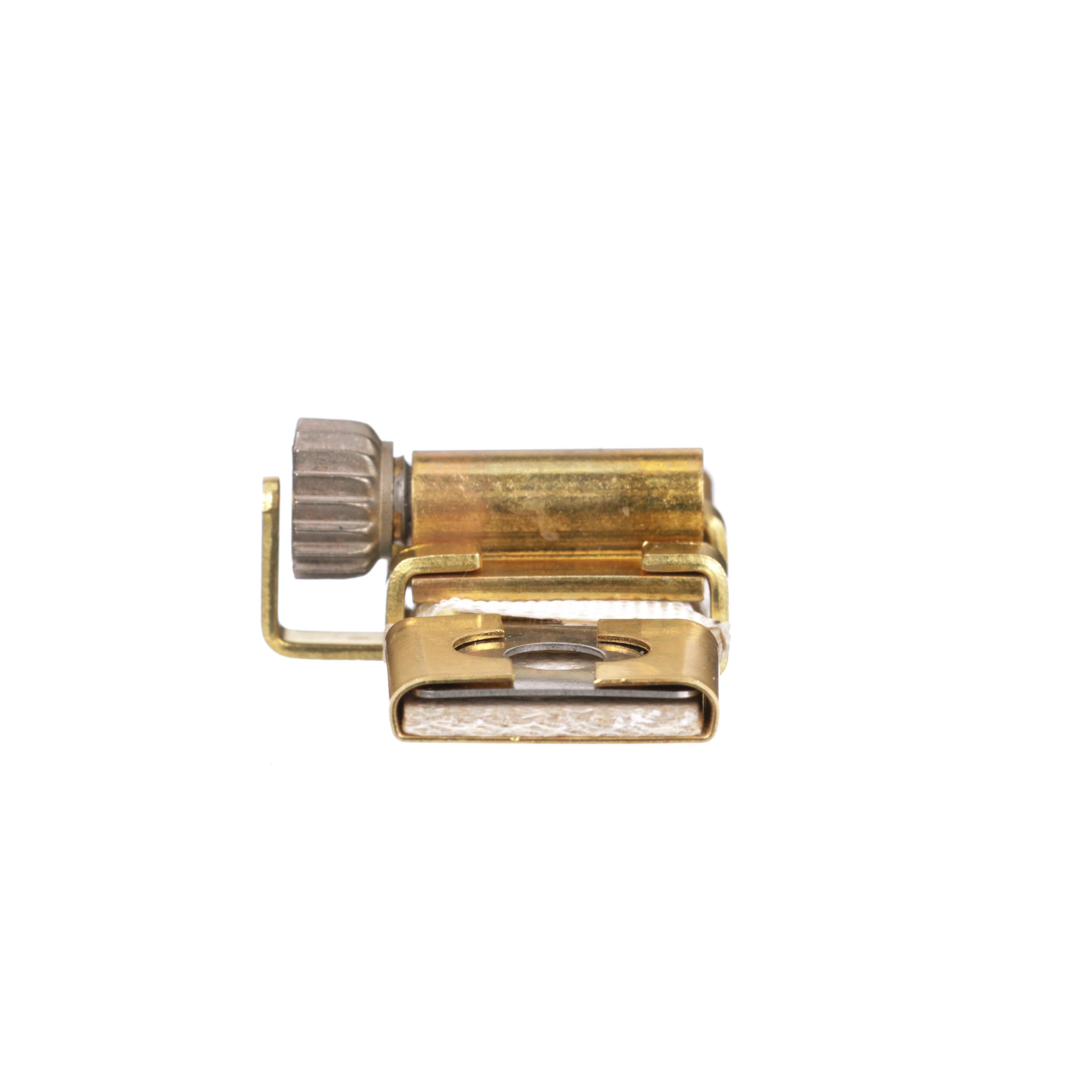

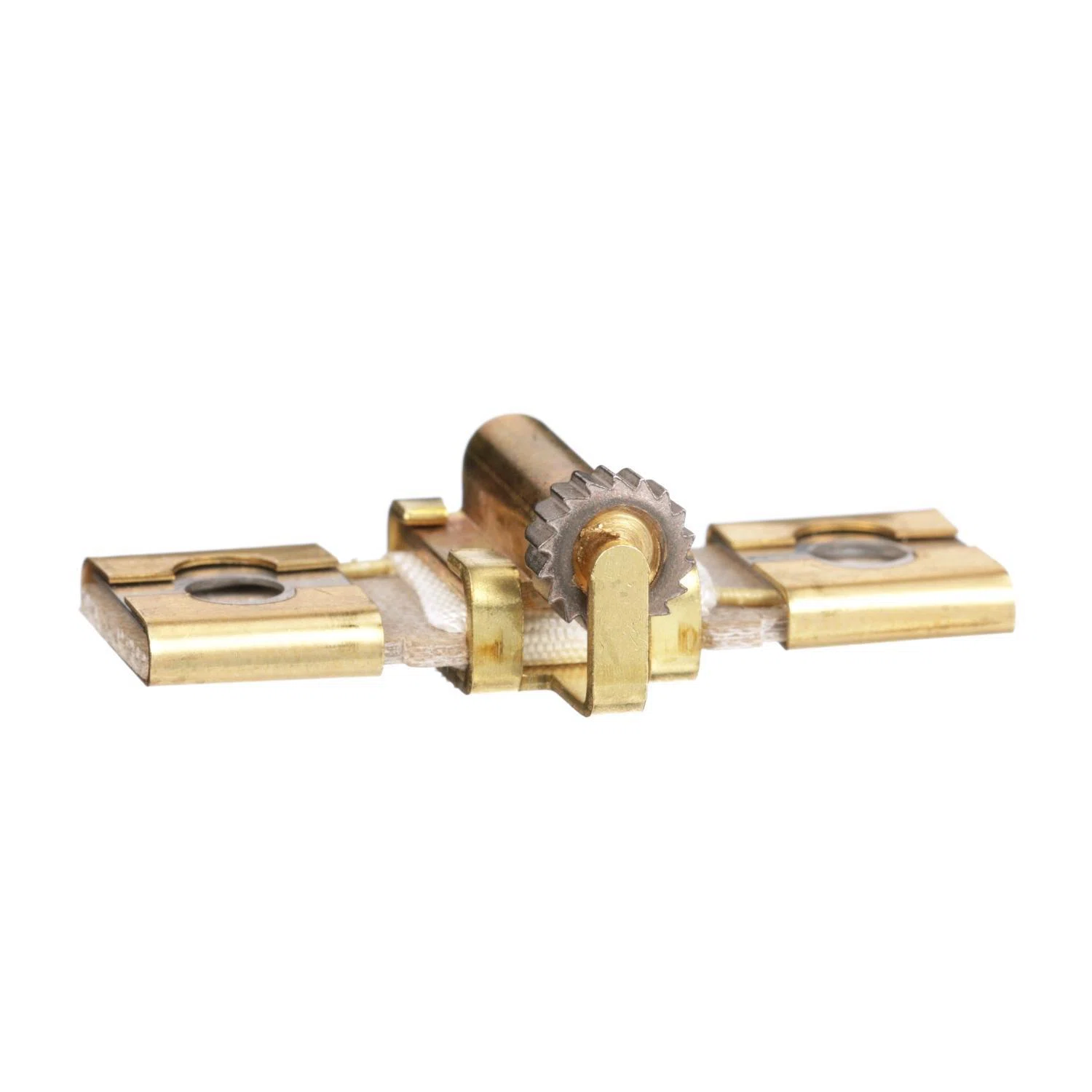

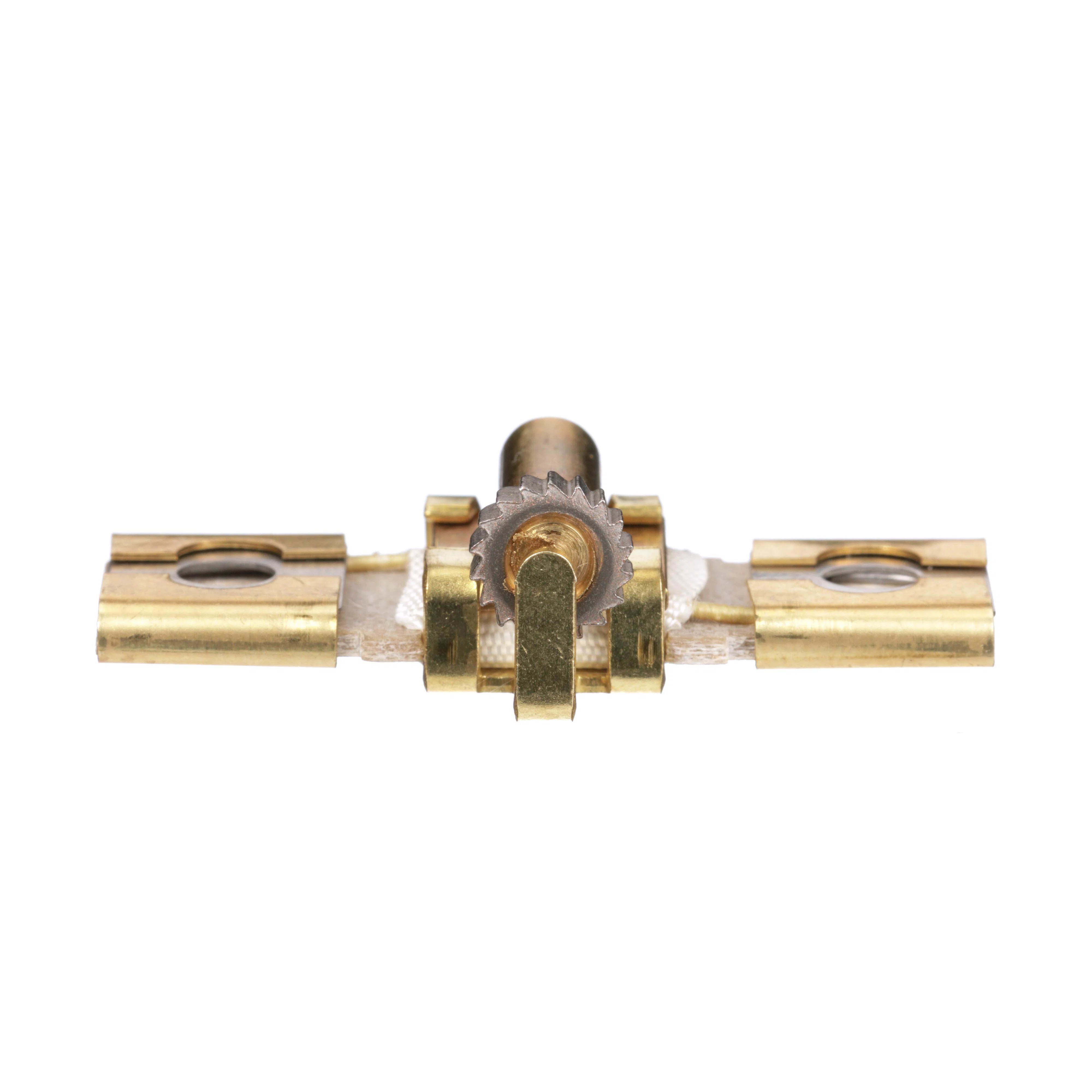

B14.0 Melting Alloy Thermal Unit, 600 V AC

MFR:
Schneider Electric
MFR #:
B14.0
UPC:
785901587507
Item #:
130080

Availability

Location Available Qty
Available 15 ea
$47.27 each

Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This one pole fuse holder will accept class M fuses. The rating of the fuse can be up to 30 Amps with a 600 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are standard fuse clips. The fuse clips are standard fuse clips. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 100,000 Amp. This fuse holder is UL component recognized and CSA certified.

Manuals and Documentation

Features

  • Switch electric motors with variety of overload relays
  • 600V maximum
  • Simple catalog number for easy and fast ordering
Manufacturer Part Number B14.0
Brand Square D™
Manufacturer Schneider Electric
UPC 785901587507
EAN 0785901587507
Country Of Origin MX
Mounting Type Plug-In
Temperature Rating 40 deg C
Type Melting Alloy
Voltage Rating 600 V AC
Size 4.9 in L x 3.4 in W x 0.8 in H
Alternative Part Number 8104417
Manufacturer Item Status Active
Country USA/Canada
Warranty 18 months
Standards Approvals PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Application For melting alloy thermal overload relay, Manual, NEMA Overload Relays, magnetic motor starters and motor control applications
Full Load Current 8.72 to 18.55 A
Trip Type Class 52/Standard
