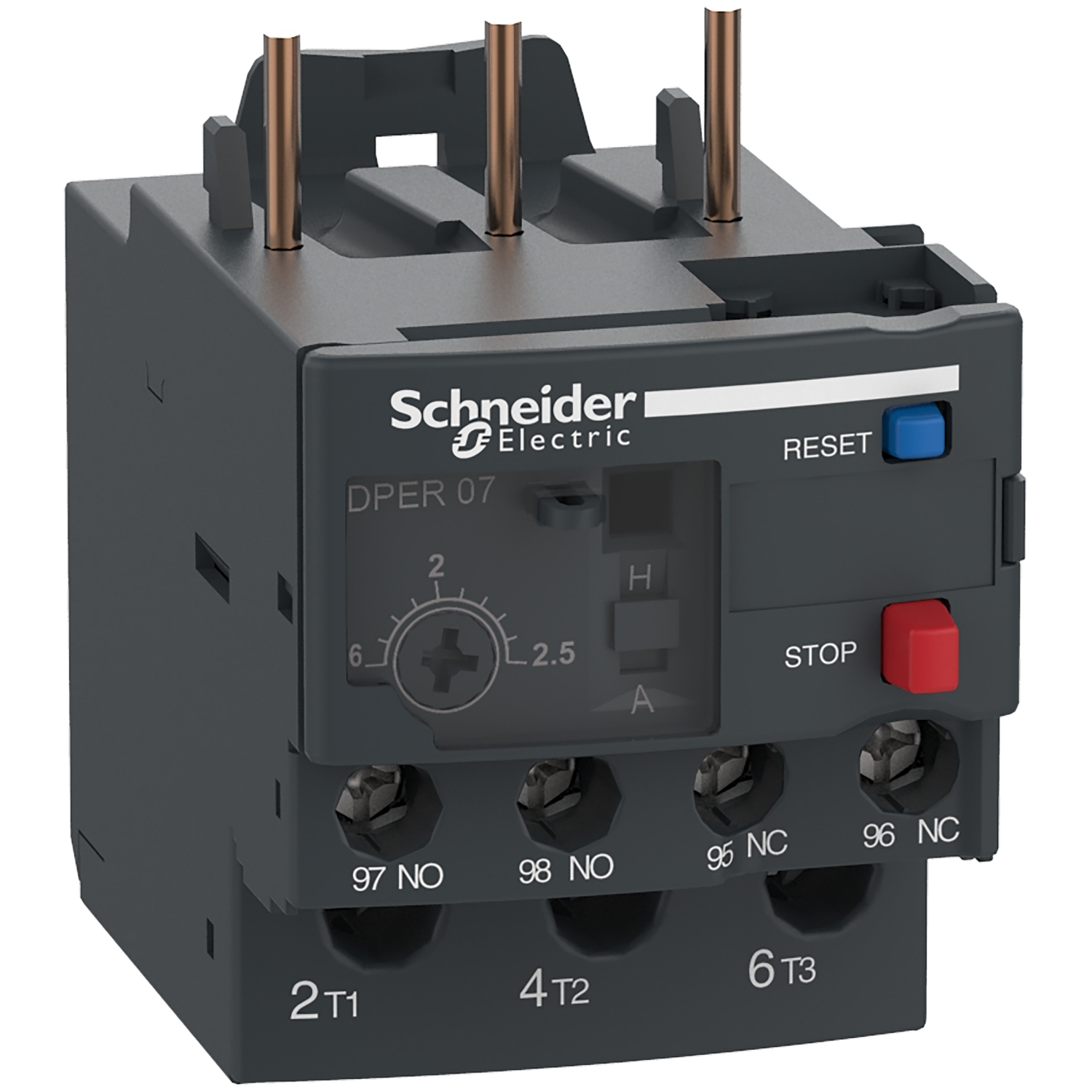

DPER07 Easy TeSys Thermal Overload Relays, 32 A
- MFR:
- Schneider Electric
- MFR #:
- DPER07
- Item #:
- 1296631
Availability
| Location | Available Qty |
|---|---|
| Available | 1 |
$31.88
each

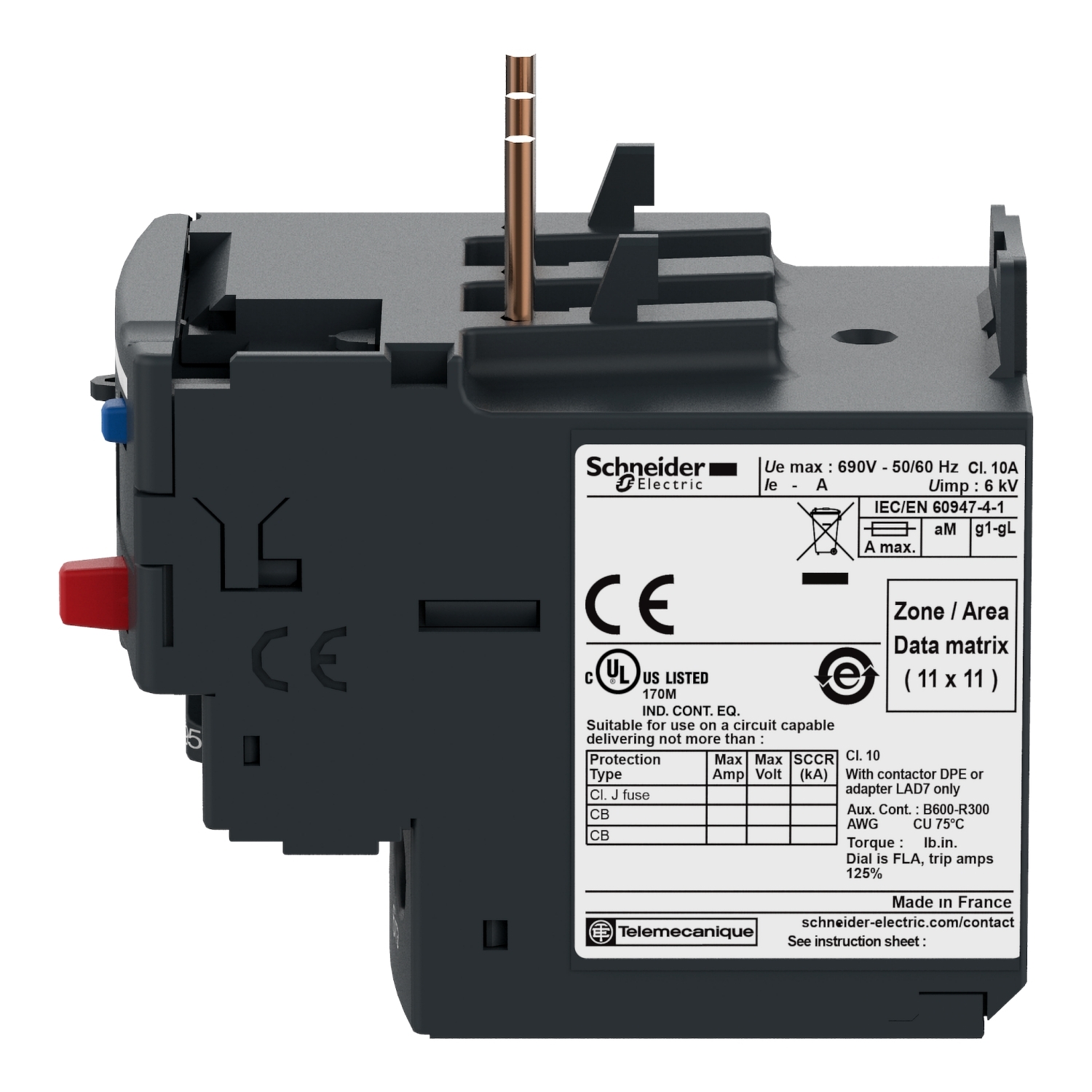

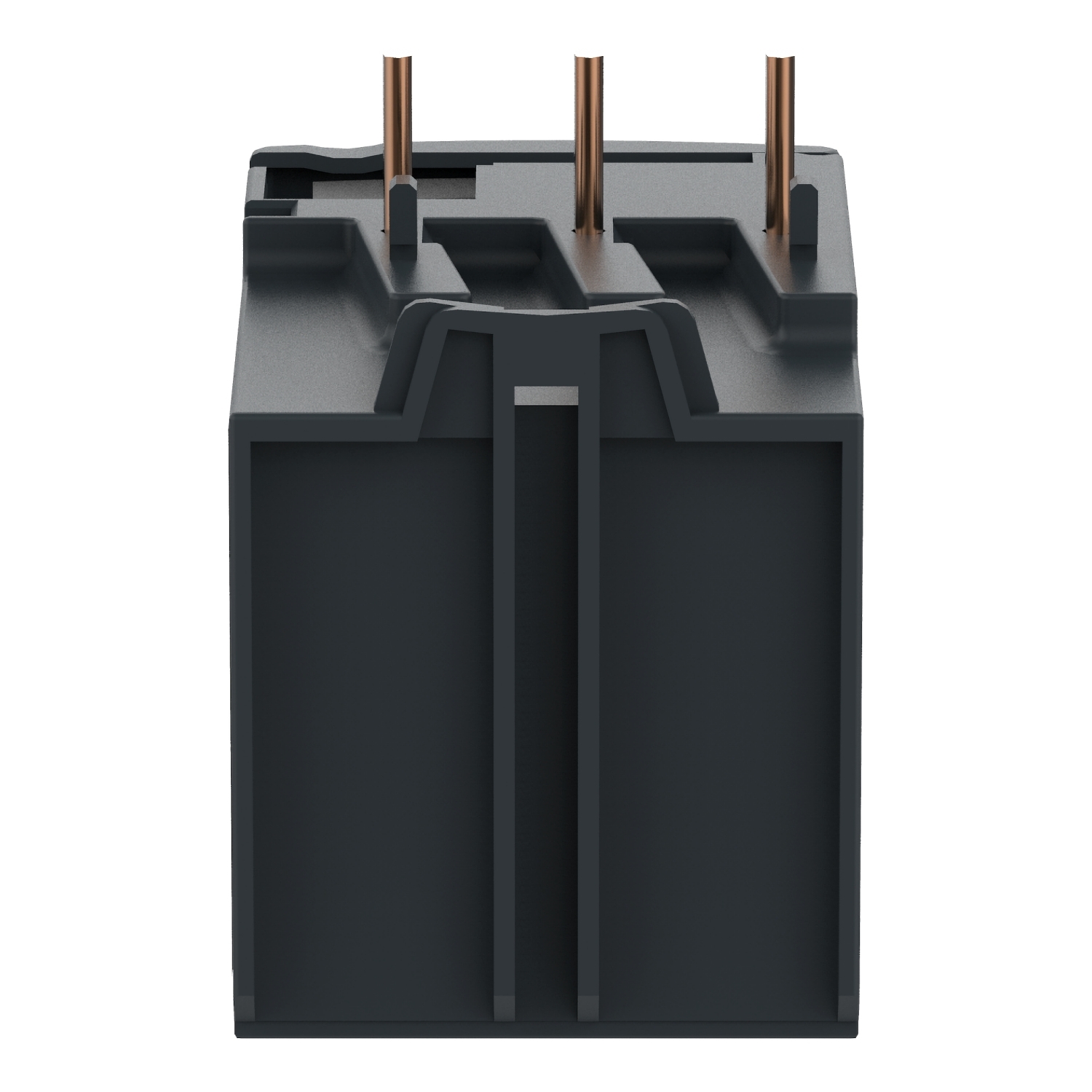

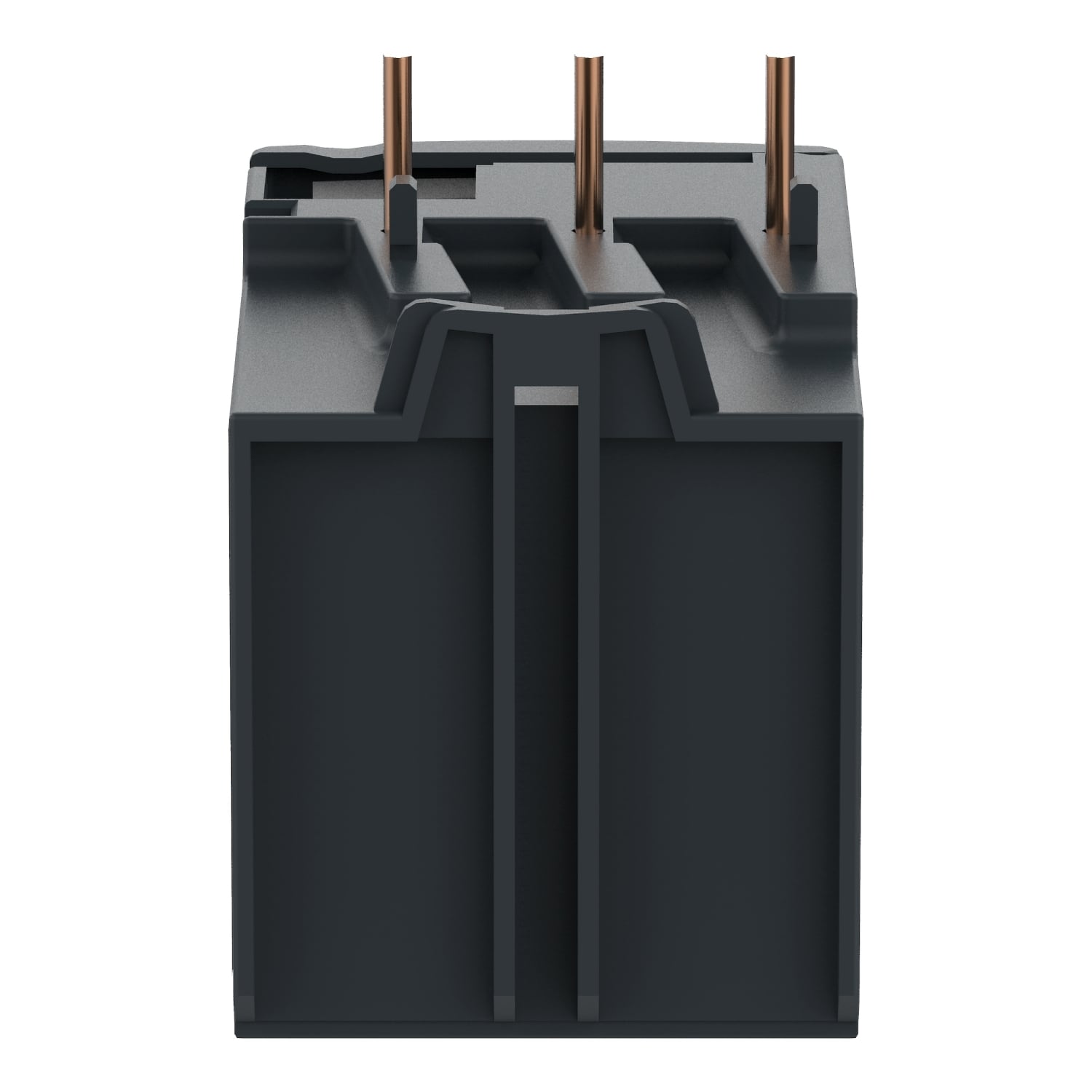

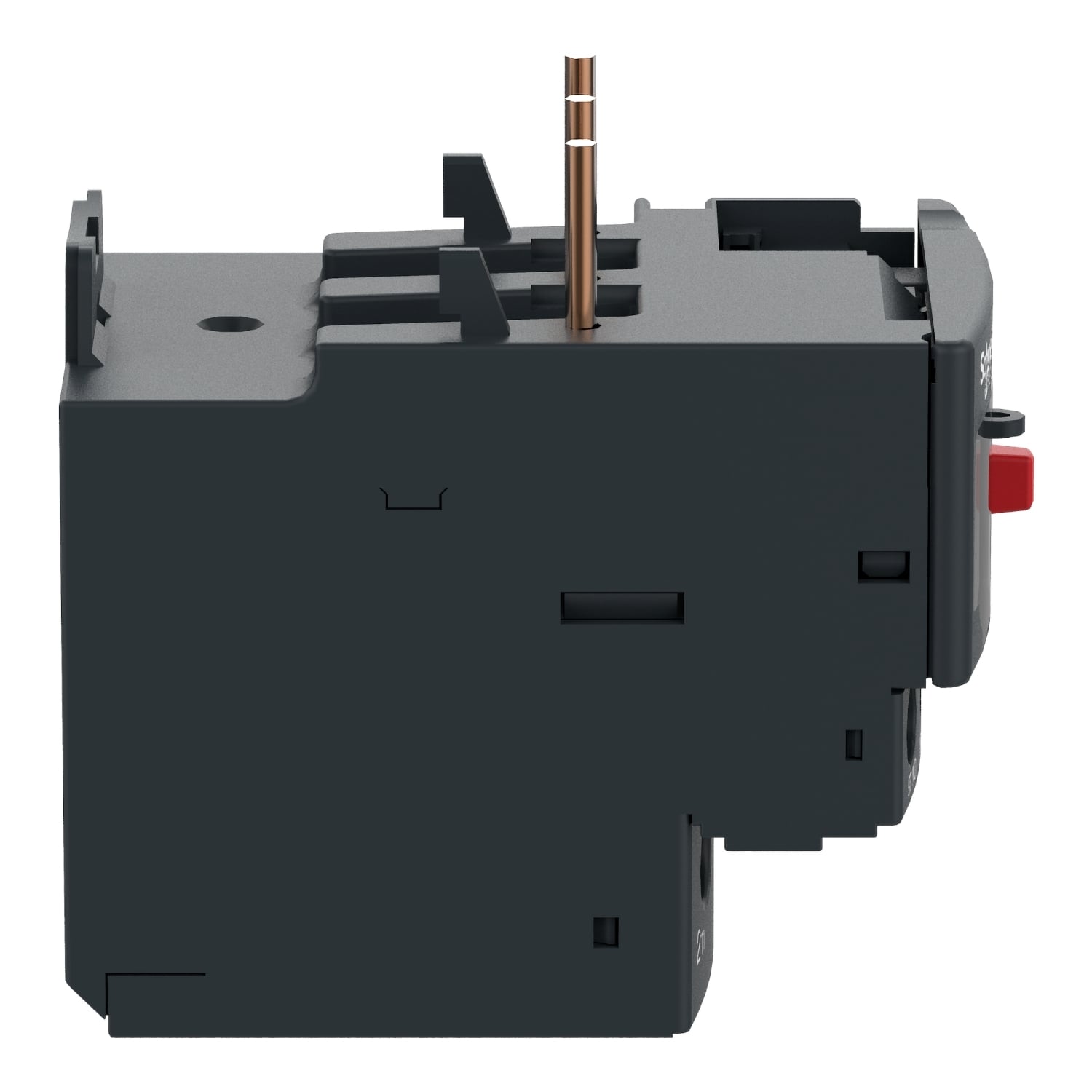

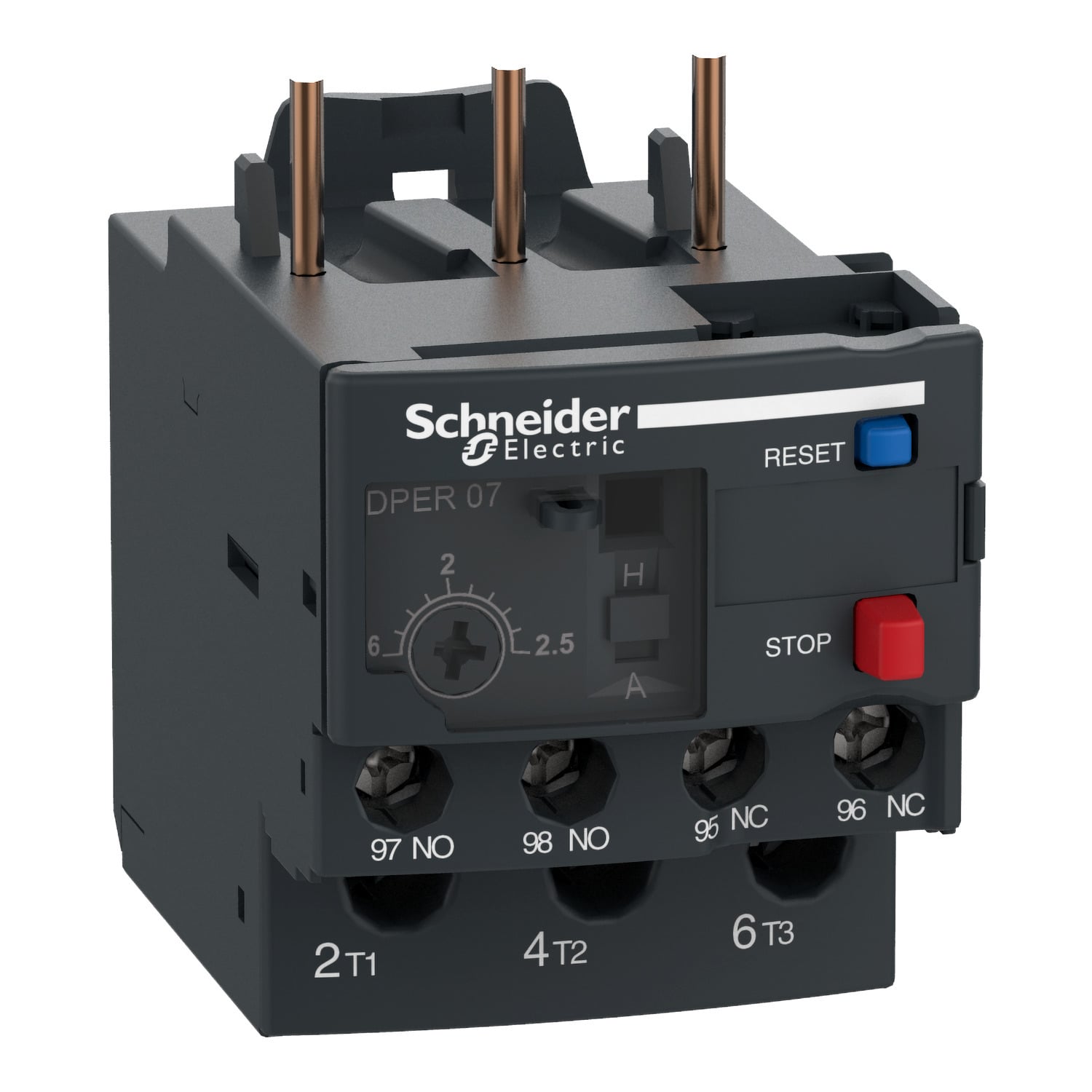

Easy TeSys DPER thermal overload relay, 2.5A/690V, thermal setting range 1.6-2.5A, tripping class 10, for protection of 3-phase motors 0.75kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors DPE09-D38. Mounting on DIN rail or screw fixing, separated from the contactor. Multi standards certified (CSA, UL).
Manuals and Documentation
| Catalog Number | DPER07 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=605086&lang=en-us |
| GTIN | 03606485332505 |
| Width | 1.77170 |
| Width UOM | Inch |
| Height | 2.59840 |
| Height UOM | Inch |
| Depth | 2.75590 IN |
