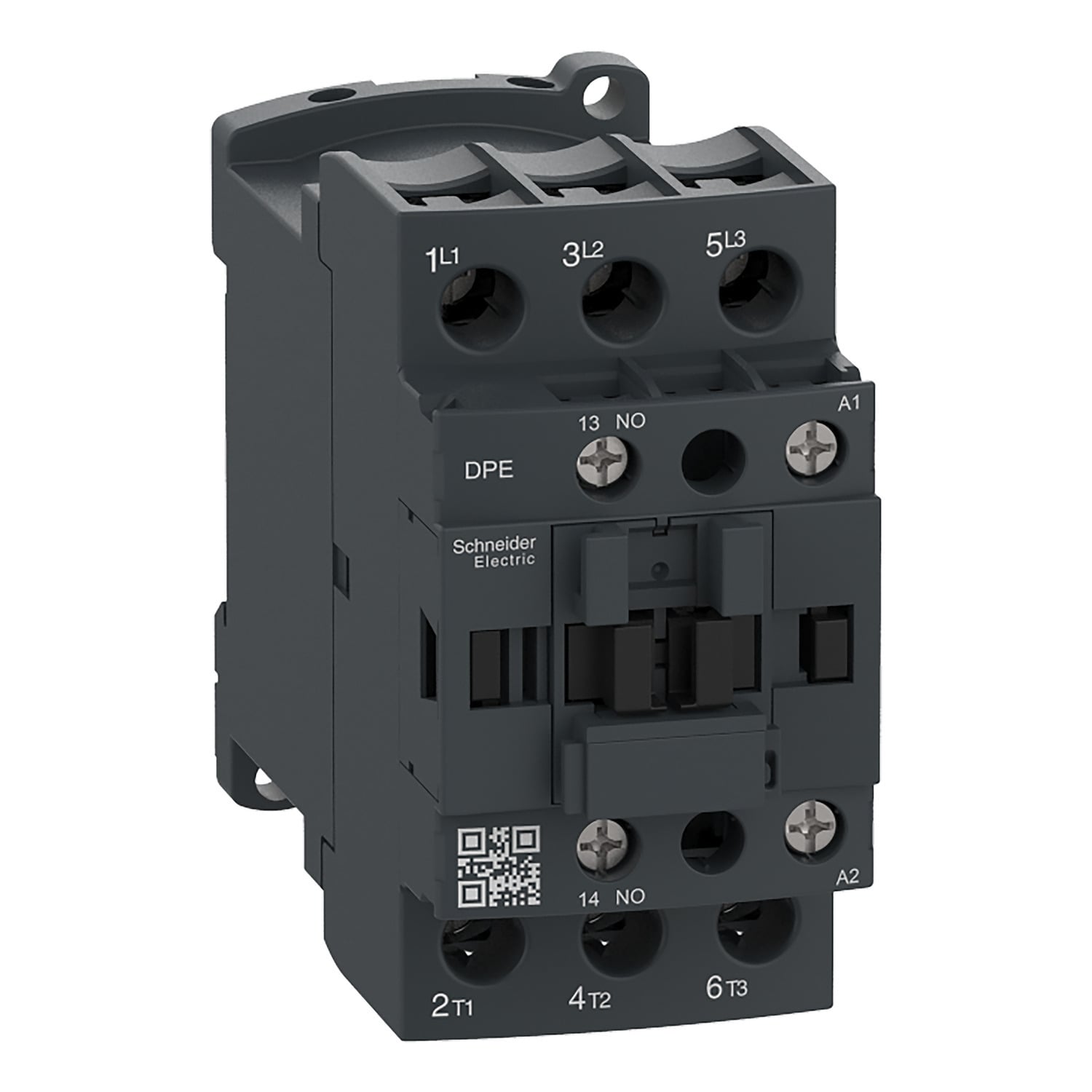

DPE38BL DPE Easy TeSys High Power Contactors, 24 V AC at 50/60 Hz V Coil, 38 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- DPE38BL
- Item #:
- 1296623
DPE38BL DPE Easy TeSys High Power Contactors, 24 V AC at 50/60 Hz V Coil, 38 A, 3NO Contact, 3 Poles
- MFR #:
- DPE38BL
- Item #:
- 1296623
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$81.78
each
Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 38A/690V AC-3 (20 HP@480V). It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA).
Manuals and Documentation
| Catalog Number | DPE38BL |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | Resistive load;motor control |
| Coil Voltage | 24 V DC |
| Connection | Power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control |
| Contact Configuration | 1 NO;3 NO;Mechanically linked 1 NO IEC 60947-5-1 |
| Mounting | Rail Plate |
| Special Features | Without built-in suppressor module |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=526122547&lang=en-us |
| GTIN | 03606481064301 |
| Item Type | Contactor |
