Product Details

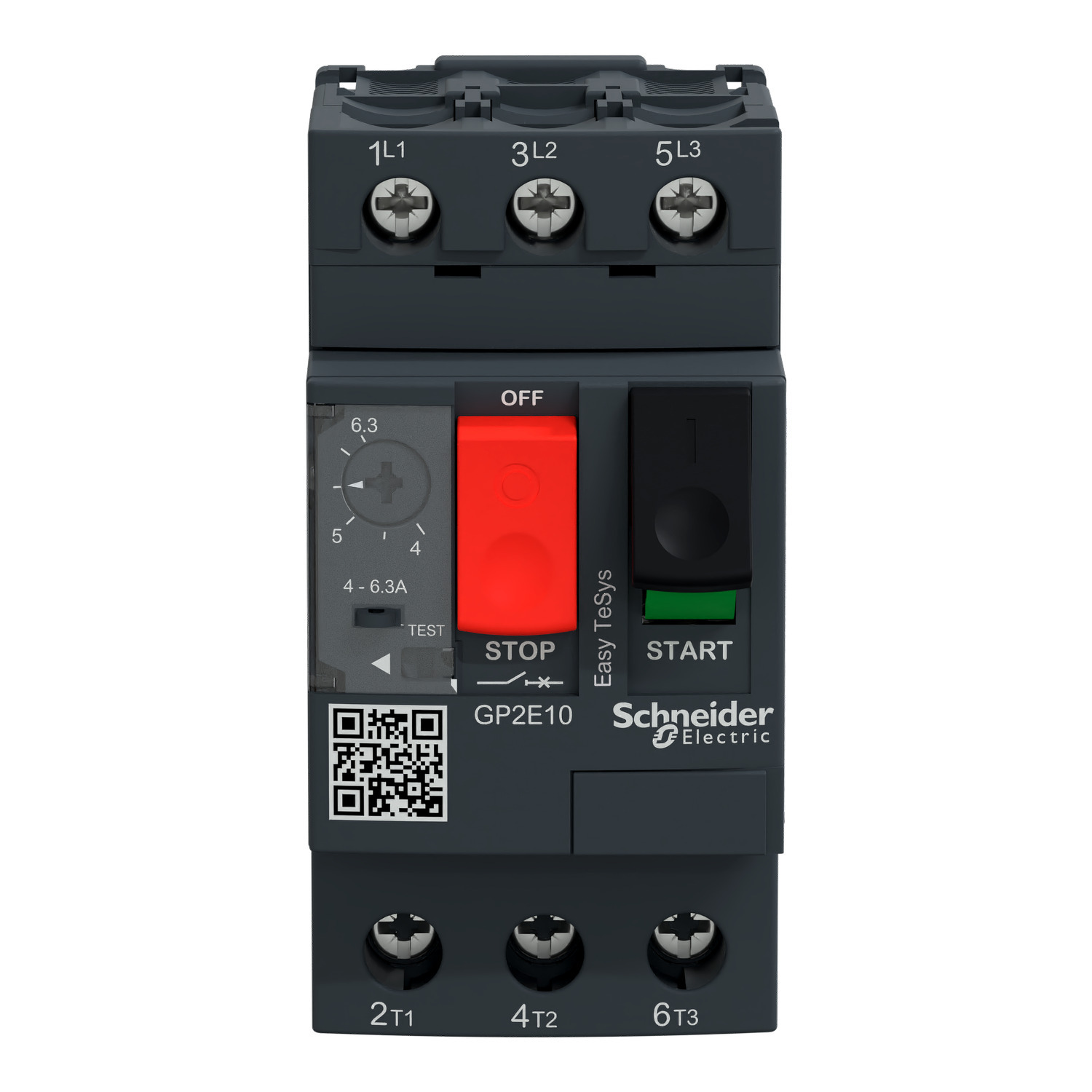

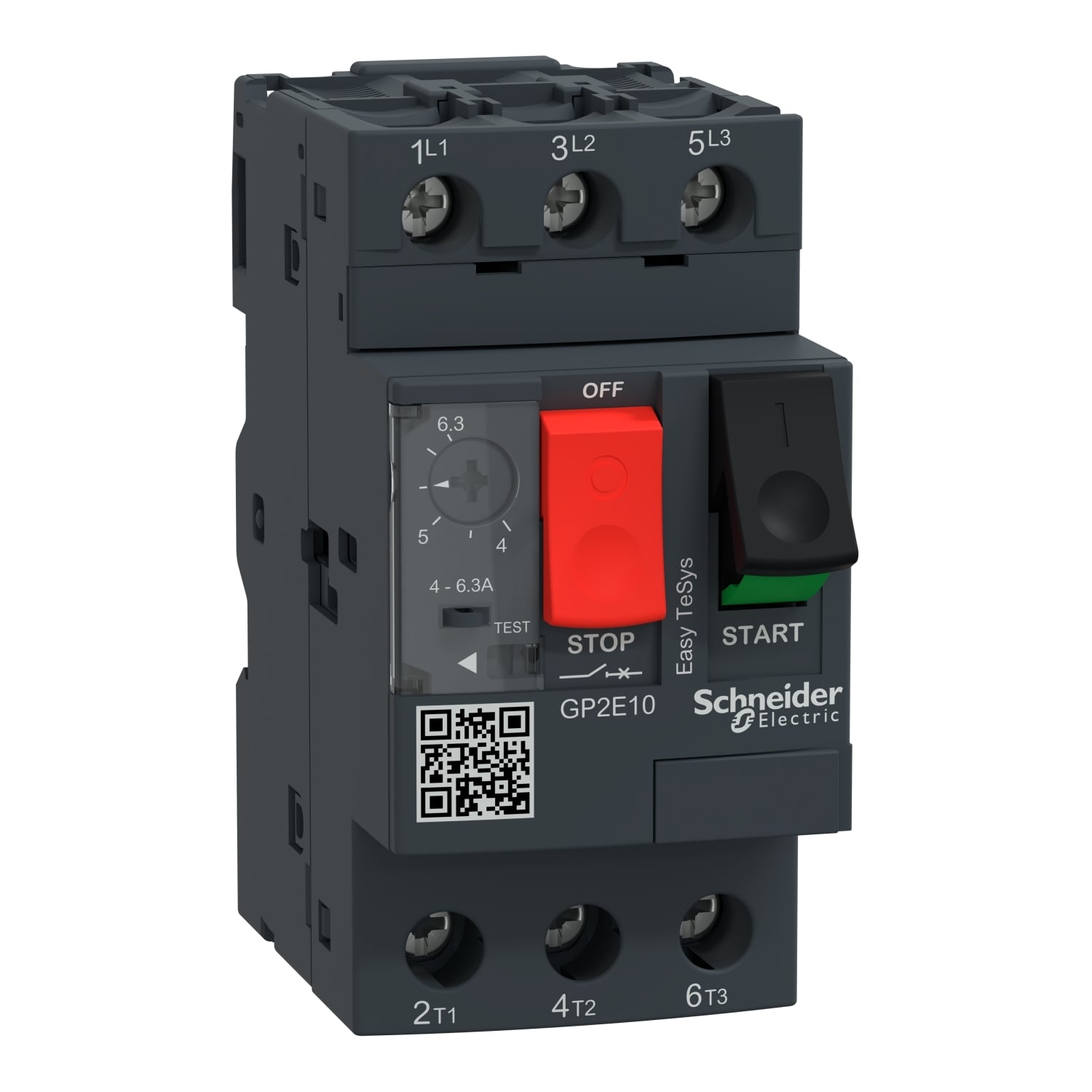

Easy TeSys manual motor controller, 3 poles (3P), 6.3A/690V, for 3-phase motor applications 2.2kW@400V. It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, cUL).

Manuals and Documentation

Features

  • Easy TeSys DPE provides you Essential control and protection for your applications
  • Simple to select and install at optimized budget
  • Reduced installation time

Specifications

Identifiers

Identifiers
Manufacturer Part Number
GP2E10
GTIN
03606481063427
Identifiers
EAN
3606481063427

General Information

General Information
Manufacturer
Schneider Electric
Brand
Schneider Electric
Country Of Origin
TH
General Information
Standards Approvals
REACH Compliant | EN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CUL | PROP65: This product can expose you to chemicals including: Antimony oxide & | Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65 Warnings.ca.gov | CUL
Application
Motor

Dimensions

Dimensions
Dimensions
3.5 in H x 1.77 in W x 3.09 in D x 3.09 in L

Technical Information

Technical Information
Series
GP2E
Technical Information
Type
Motor Controller
