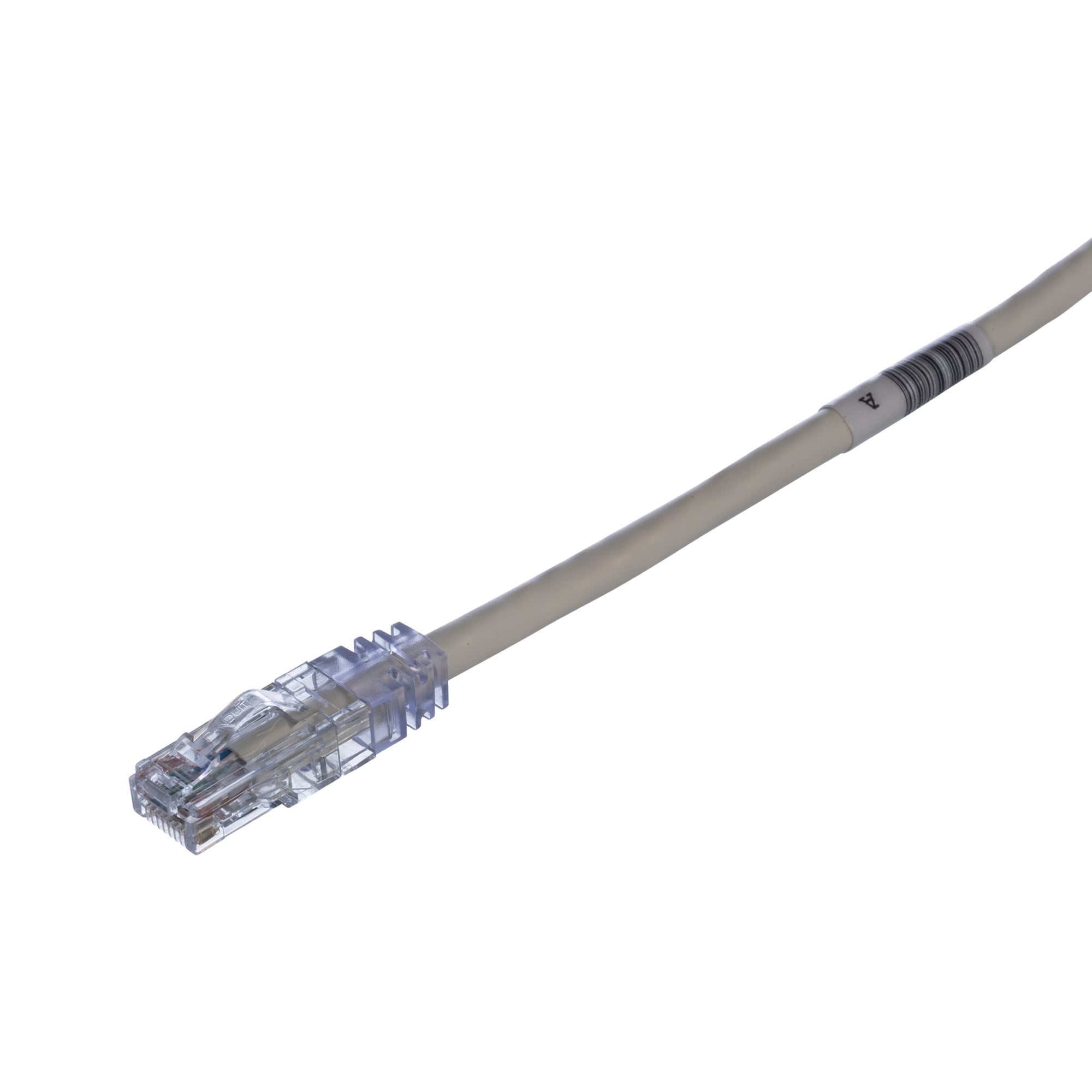

UTPSP3Y PanNet TX6 Plus Class E Patch Cord, Cat 6, 24 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 3 ft L Cord, Off-White
- MFR:
- Panduit
- MFR #:
- UTPSP3Y
- UPC:
- 074983170432
- Item #:
- 129632
UTPSP3Y PanNet TX6 Plus Class E Patch Cord, Cat 6, 24 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 3 ft L Cord, Off-White
- MFR #:
- UTPSP3Y
- UPC:
- 074983170432
- Item #:
- 129632
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$19.39
each
The TX6 PLUS Cat 6 UTP Patch Cord is a 3-Foot, Off-White cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
| Catalog Number | UTPSP3Y |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Token ring 4/16(4) Digit |
| Color | Off;White |
| Conductor Material | Copper |
| Jacket Material | Polyvinyl Chloride |
| Plug Type | Modular Plug |
| Special Features | NULL |
| Standard | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all channel and component frequencies up to 500 MHz; Meets ANSI/TIA-1096-A requirements; Meets IEC 60603-7; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 |
| UPC | 074983170432 |
| GTIN | 00074983170432 |
| Item Type | Patch Cord |
| Length | 3.00 |
| Outside Diameter | 0.27 IN |
| Temperature Rating | 140 °F |
| Wire Size | 24 |
