A51 Fixture 150W UnitPack
- MFR:
- Appleton Electric
- MFR #:
- AC1575
- UPC:
- 781381153195
- Item #:
- 129490
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

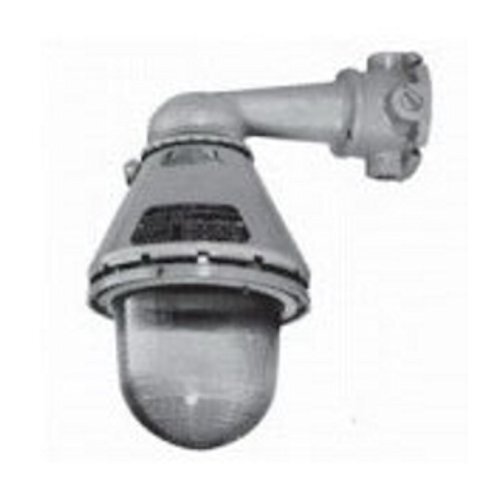

Appleton UNILETS A-51 Series Incandescent Factory Sealed Luminaire Without Guard, Fixture Type: Ceiling Mount, Lamp Type: 150 - 300 WTT A23/PS25 Medium Incandescent, Lamp Wattage: 150 - 300 WTT, Number Of Lamps: 1, Material: Malleable Iron Mounting Hood With Aluminum Adapter, Fixture Wattage: 150 - 300 WTT, Length: 7.06 IN, Width: 7.06 IN, Height: 13-3/4 IN, Housing Finish: Epoxy-Clad And Powder Coat Fixture, Guard And Mounting Hood, Housing Material: Malleable Iron, Ambient Temperature Range: 40 DEG C, Temperature Range: 125 DEG C Supply Wire, Lens Material: Explosionproof And Heat And Impact-Resistant Glass Globe, Hub Size: 3/4 IN, Number Of Hubs: 4, Standard: Group A And B: Class I, Division 1 And 2, Groups A , B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, Group C And D: Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428, Ideal For Use In ChemicalAnd Petrochemical Plants And In Other Heavy Process Areas Where Ignitable Vapors, Dust, Moisture And Corrosive Atmospheres May Be Present, Suitable For Use In Wet Locations, Use With Threaded Metal Conduit
Manuals and Documentation
| Catalog Number | AC1575 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Ideal For Use In Chemical And Petrochemical Plants And In Other Heavy Process Areas Where Ignitable Vapors, Dust, Moisture And Corrosive Atmospheres May Be Present; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit |
| Lamp Type | 150 - 300 WTT A23/PS25 Medium Incandescent |
| Material | Malleable Iron Mounting Hood With Aluminum Adapter |
| Special Features | All A-51 fixtures are factory-sealed, no external sealing fittings required; New high temperature phenolic connection block in mounting hood has rugged leaf spring contacts - loosen two screws, rotate and remove for quick wiring; Safe, easy servicing or relamping without disconnecting any wiring; Wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate exchange with stand-by unit; All joints are flame-tight; Specially formulated two-coat baked epoxy enamel provides superior protective finish to resist corrosion; New high temperature glass-reinforced phenolic socket block in fixture unit has collector ring and pin that automatically make electrical contact as fixture unit is threaded onto mounting hood; |
| Standard | Group A And B: Class I, Division 1 And 2, Groups A , B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III; Group C And D: Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428 |
| UPC | 781381153195 |
| GTIN | 00781381153195 |
| Item Type | A-51 Series Incandescent Factory Sealed Luminaire Without Guard |
| Length | 7.06 |
| Length UOM | Inch |
| Width | 7.06 |
| Width UOM | Inch |
| Height | 13-3/4 |
| Height UOM | Inch |
