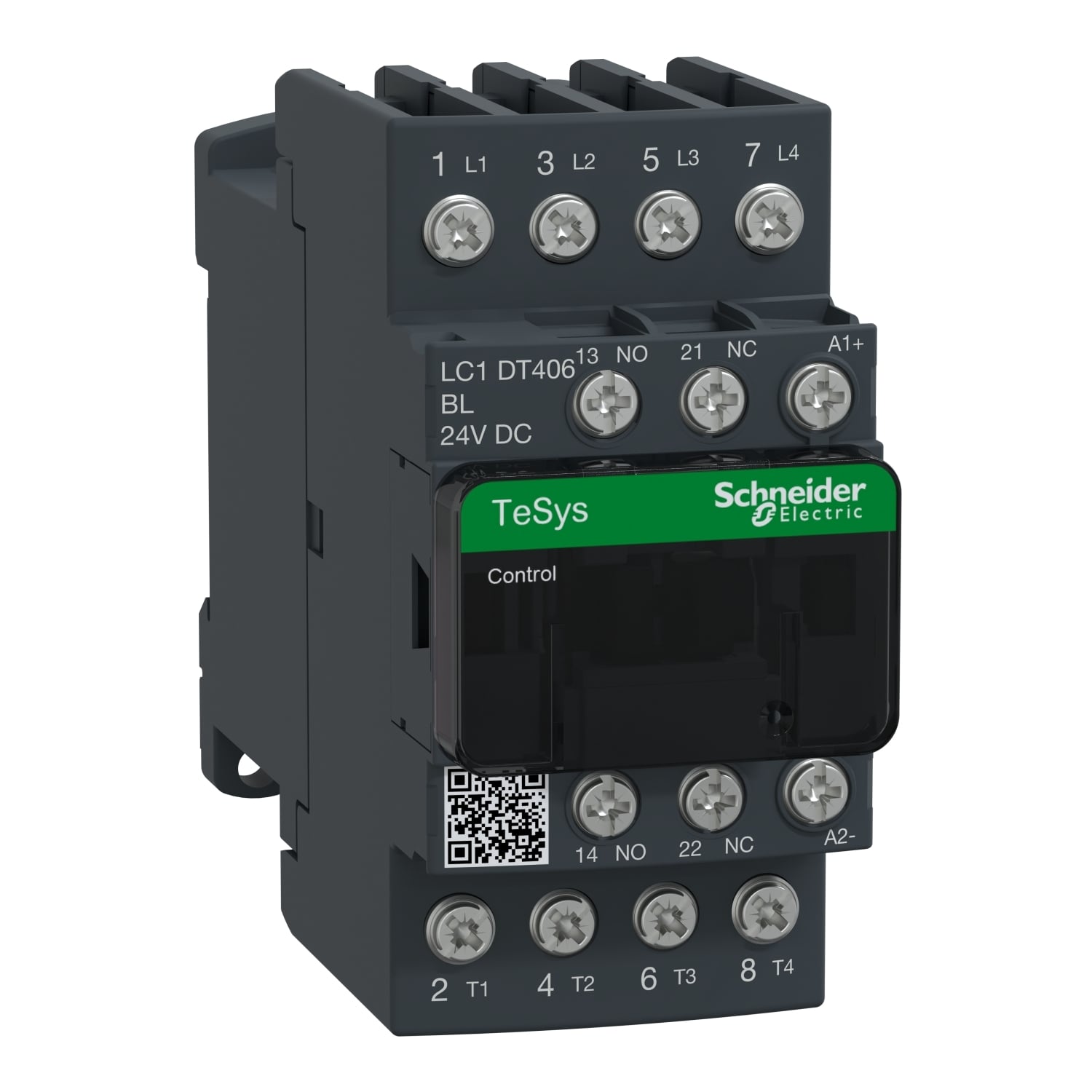

LC1DT406BL TeSys D Contactor With Front Cover, 24 V DC V Coil, 40 A, 1NO-1NC/4NO Contact, 4 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1DT406BL
- Item #:
- 1294648
LC1DT406BL TeSys D Contactor With Front Cover, 24 V DC V Coil, 40 A, 1NO-1NC/4NO Contact, 4 Poles
- MFR #:
- LC1DT406BL
- Item #:
- 1294648
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 40A/440V AC-1. They can be used to create motor starters for almost any type of application. It provides a low consumption 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by ring-lugs screw terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Power contacts have a 40A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 4.21 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1DT406BL |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=620680&lang=en-us |
| GTIN | 03389110735468 |
