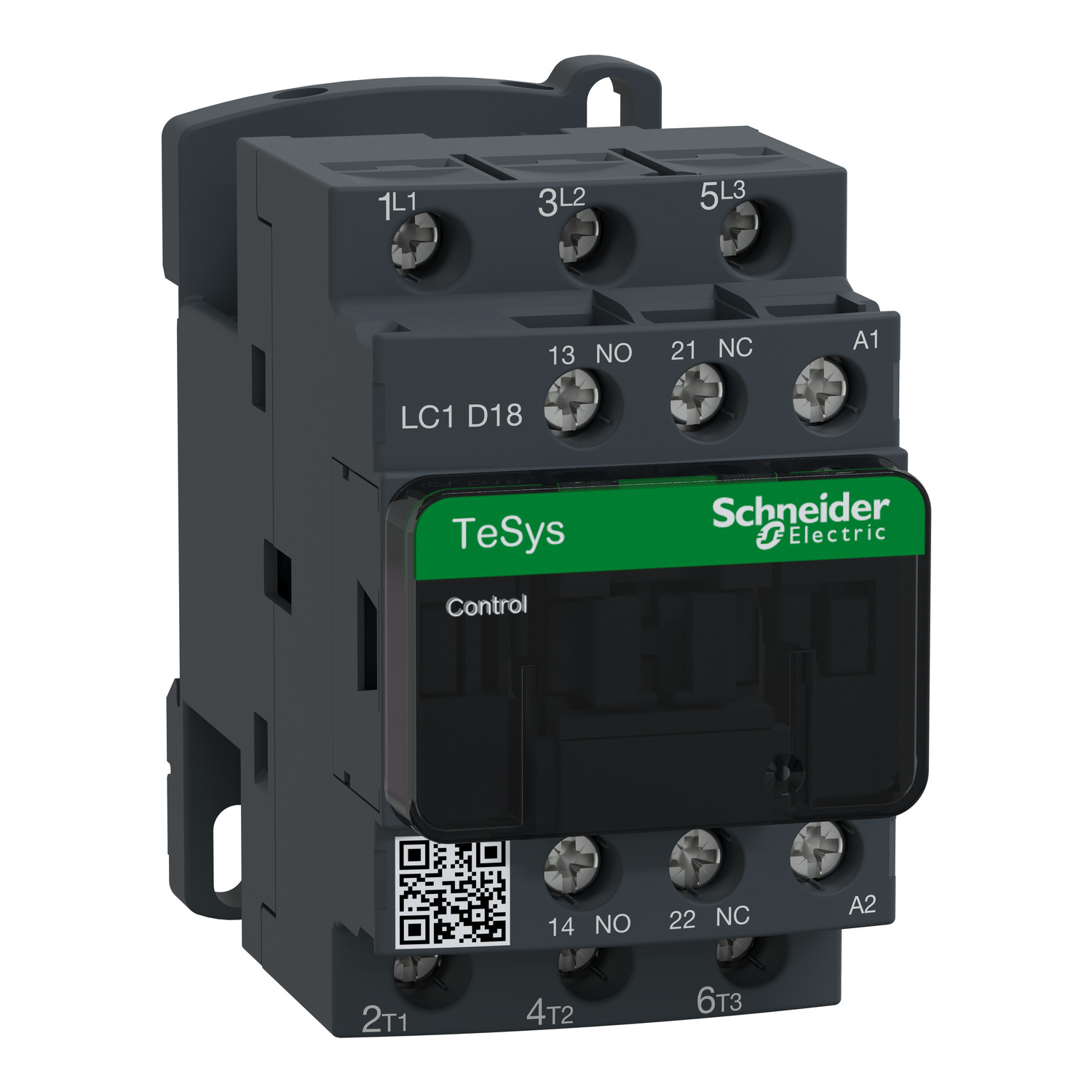

LC1D18F7TQ TeSys D Contactor With Protective Cover, 110 V AC V Coil, 32 A at 1 ph/18 A at 3 ph, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D18F7TQ
- Item #:
- 1294544
LC1D18F7TQ TeSys D Contactor With Protective Cover, 110 V AC V Coil, 32 A at 1 ph/18 A at 3 ph, 3NO Contact, 3 Poles
- MFR #:
- LC1D18F7TQ
- Item #:
- 1294544
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Pack of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 40A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 110 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.73 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1D18F7TQ |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Resistive load;motor control |
| Coil Voltage | 110 V AC 50/60 Hz |
| Connection | Control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminal 2 1-2.5 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminal 1 1.5-6 mm² - cable stiffness: solid without cable end;power circuit: screw clamp terminal 2 1.5-6 mm² - cable stiffness: solid without cable end;power circuit: screw clamp terminal 1 1-6 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminal 1 1.5-6 mm² - cable stiffness: flexible without cable end;power circuit: s |
| Contact Configuration | 1 NO + 1 NC;3 NO |
| Mounting | Rail Plate |
| Special Features | Without built-in bidirectional peak limiting diode suppressor |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=614854&lang=en-us |
| GTIN | 03389110123814 |
| Item Type | Contactor |
