LC1D1156BD TeSys D Contactor With Safety Cover, 24 V DC V Coil, 200 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D1156BD
- Item #:
- 1294513
LC1D1156BD TeSys D Contactor With Safety Cover, 24 V DC V Coil, 200 A, 3NO Contact, 3 Poles
- MFR #:
- LC1D1156BD
- Item #:
- 1294513
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

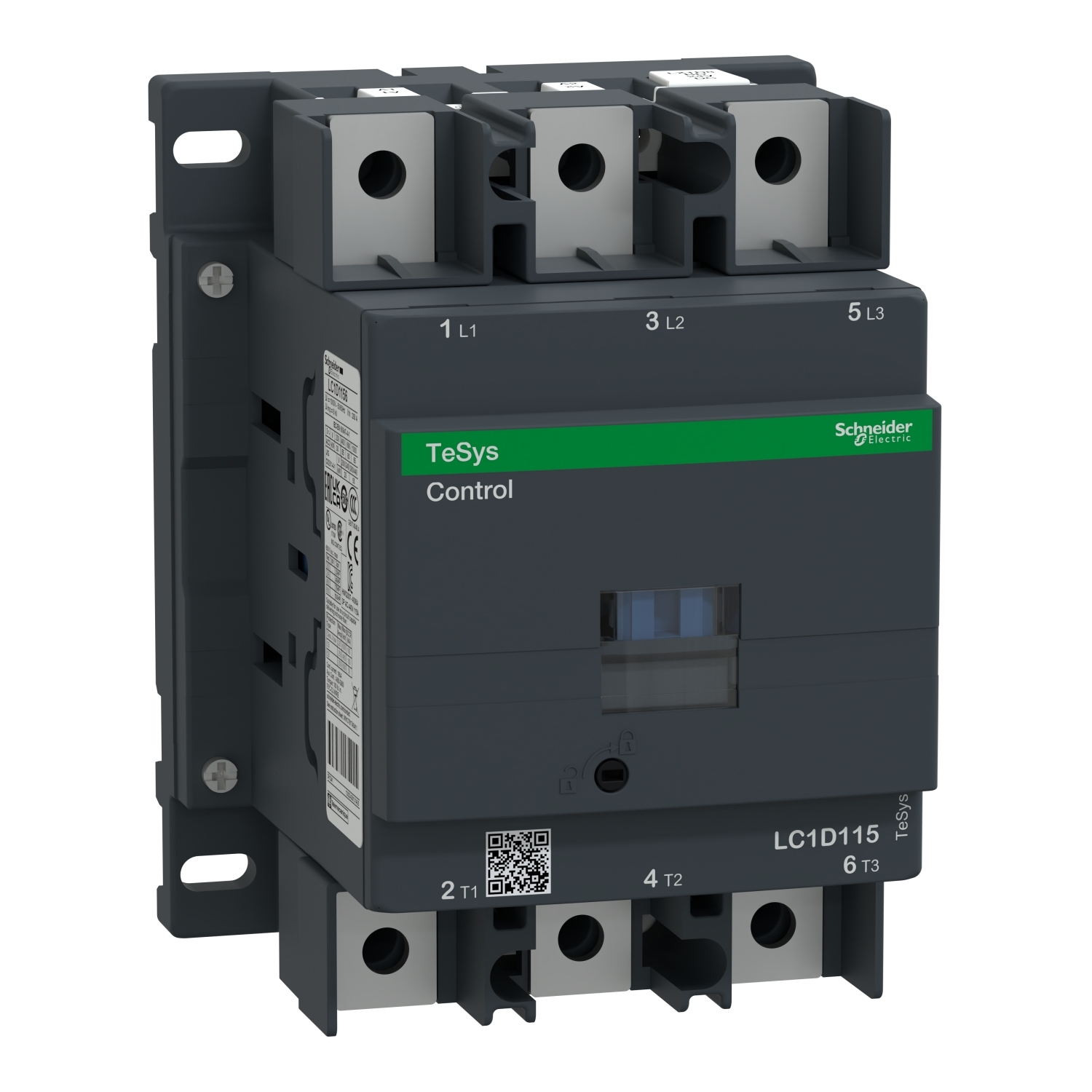

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror contact), power connection for bars or lugs, control connection for lugs. For operating rates until 1200 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Contactor is rated for 30HP at 200 to 208VAC, 40HP at 240VAC, 75HP at 480VAC and 100HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as stanard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 4.72 inches wide and 5.35 inches deep. It weighs 5.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1D1156BD |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Motor control;resistive load |
| Coil Voltage | 24 V DC |
| Connection | Control circuit: lugs-ring terminals - external diameter: 8 mm;power circuit: lugs-ring terminals - external diameter: 25 mm;power circuit: bars 1 - busbar cross section: 5 x 25 mm |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | With integral suppression device |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=612556&lang=en-us |
| GTIN | 03389110380293 |
| Item Type | Contactor |
