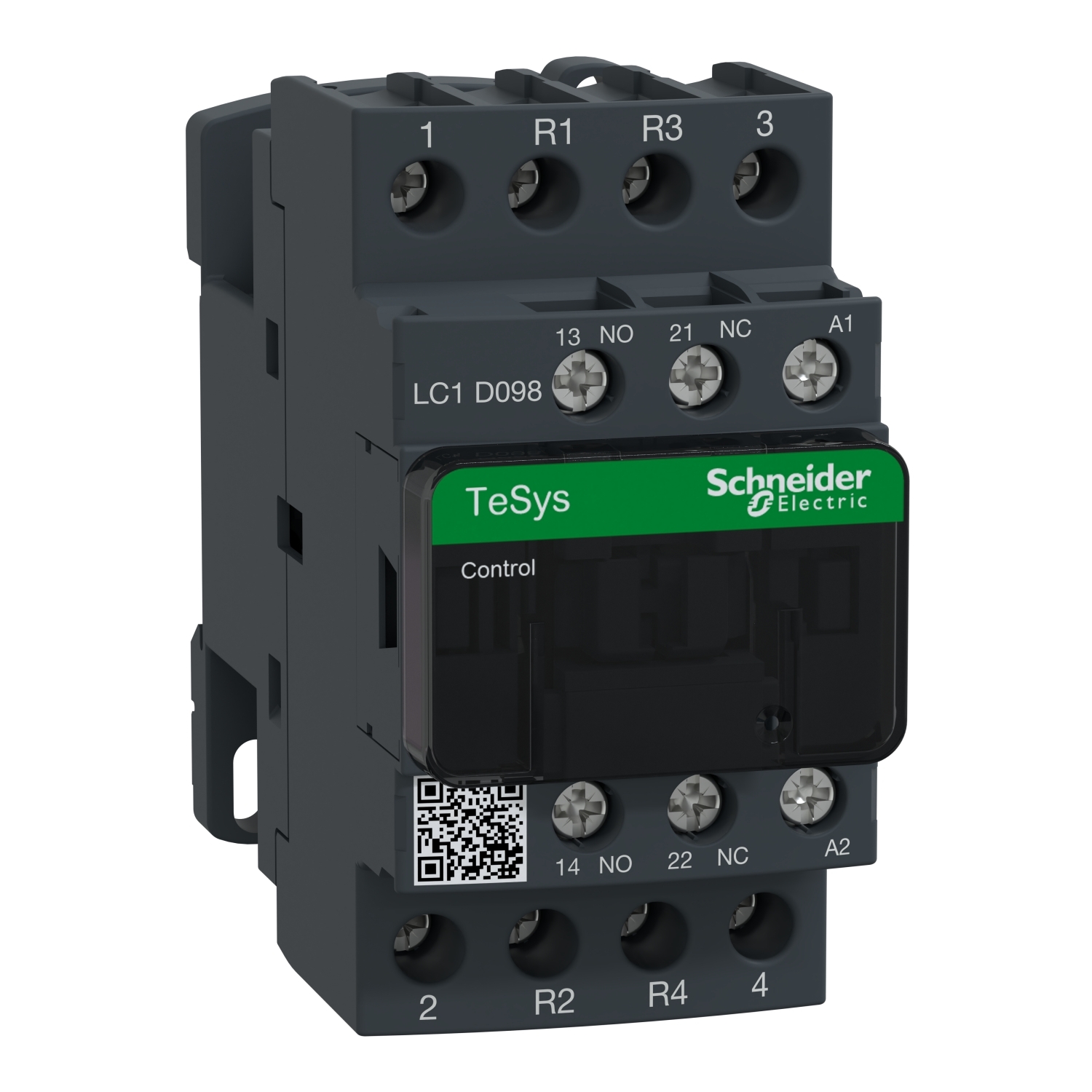

LC1D098M7 TeSys D Contactor With Front Cover, 220 V AC V Coil, 25 A, 1NO-1NC/2NO-2NC Contact, 4 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D098M7
- Item #:
- 1294506
LC1D098M7 TeSys D Contactor With Front Cover, 220 V AC V Coil, 25 A, 1NO-1NC/2NO-2NC Contact, 4 Poles
- MFR #:
- LC1D098M7
- Item #:
- 1294506
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 20A/690V AC-1. They can be used to create motor starters for almost any type of application. It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Power contacts have a 20A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Pressure wire connectors are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.80 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1D098M7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | Resistive load |
| Coil Voltage | 220 V AC 50/60 Hz |
| Connection | Power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control |
| Contact Configuration | 1 NO + 1 NC;2 NO + 2 NC;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | Without built-in suppressor module |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=611842&lang=en-us |
| GTIN | 03389110276176 |
| Item Type | Contactor |
