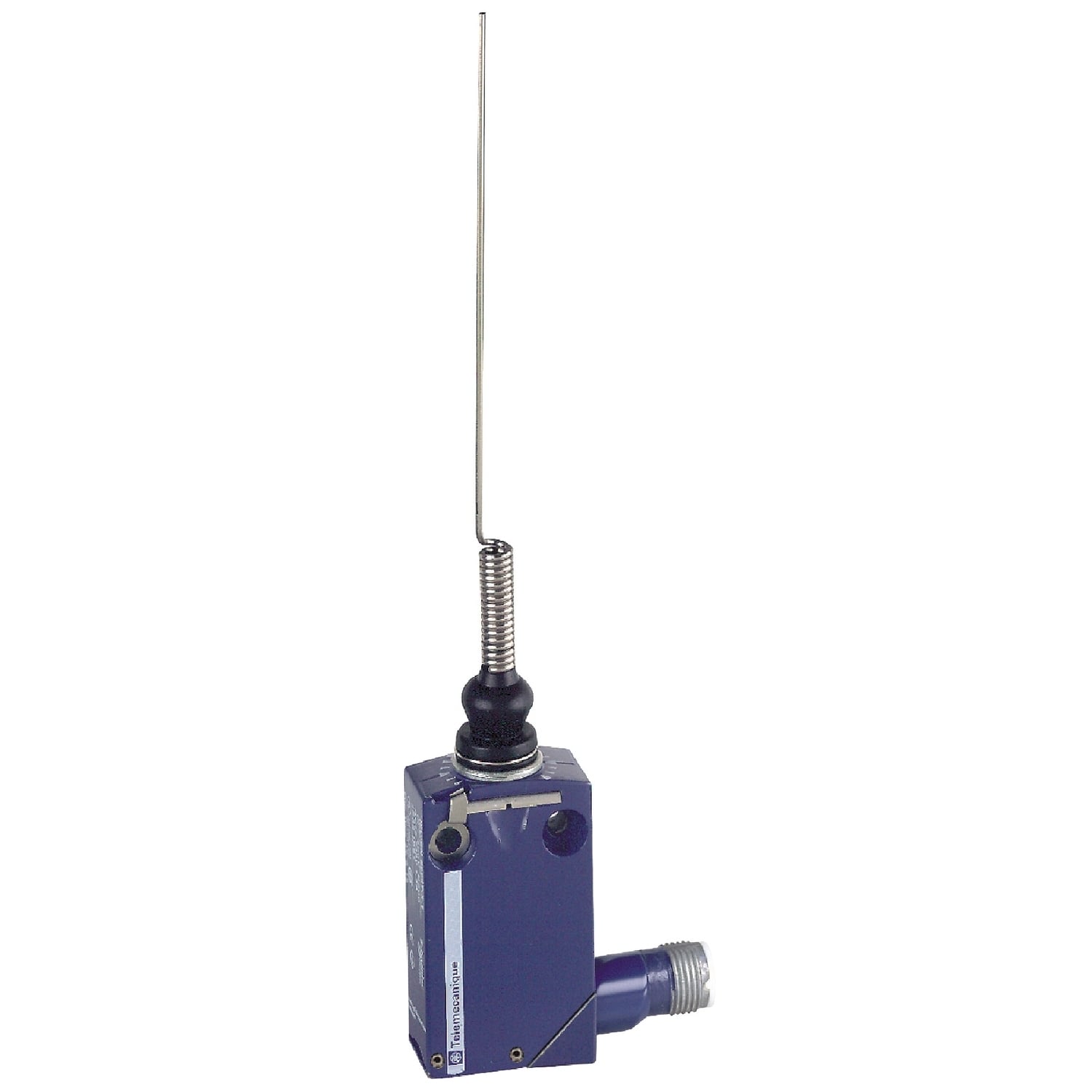

XCMD2106C12 OsiSense XC Miniature Plug-In Body Standard Format Limit Switch, 240 V AC, 4 A, Cats Whisker Spring Return Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCMD2106C12
- Item #:
- 1292598
XCMD2106C12 OsiSense XC Miniature Plug-In Body Standard Format Limit Switch, 240 V AC, 4 A, Cats Whisker Spring Return Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCMD2106C12
- Item #:
- 1292598
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$126.76
each
limit switch XCMD - cat's whisker - 1NC+1NO - snap - M12
Manuals and Documentation
| Catalog Number | XCMD2106C12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Action | Multi-directional approach;Snap action;By any moving part |
| Actuator | Spring return cat''s whisker |
| Amperage Rating | 4 |
| Application | MINIATURE VARIABLE |
| Connection | Male connector M12, 5 pins |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | METAL,PLUG-IN BODY |
| Standard | 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA-UL-CCC,EN/IEC 60204-1-EN/IEC 60947-5-1-CSA C22.2 NO 14-UL 508,IK06 EN 62262,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529,CLASS I IEC 61140-CLASS I NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857670&lang=en-us |
| GTIN | 03389110221428 |
| Item Type | Limit switch |
| Size | 16 MM,30 MM,50-50 MM |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 0.22 A 50 V, DC-13 EN/IEC 60947-5-1 APPENDIX A-3 A 50 V, AC-15 EN/IEC 60947-5-1 APPENDIX A |
