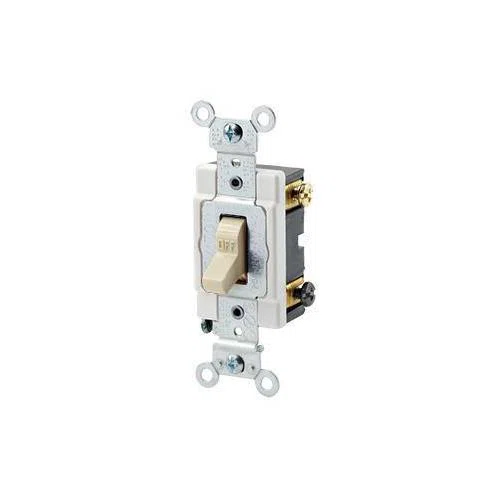

1222-SI Grounding Toggle Switch, 120/277 V AC, 20 A, 800 W, 1000 VA Power Rating
- MFR:
- Leviton
- MFR #:
- 1222-SI
- UPC:
- 078477240977
- Item #:
- 129256
1222-SI Grounding Toggle Switch, 120/277 V AC, 20 A, 800 W, 1000 VA Power Rating
- MFR #:
- 1222-SI
- UPC:
- 078477240977
- Item #:
- 129256
Availability
| Location | Available Qty |
|---|---|
| Available | 4 ea |
$43.70
each
Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top-of-the-line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Manuals and Documentation
Features
- Heavy gauge copper alloy brush arm for superior performance
- Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
- Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
- Self-grounding clip (self grounding when used with a grounded metal wallbox)
- 1 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
| Manufacturer Part Number | 1222-SI |
| Brand | Leviton® |
| Manufacturer | Leviton |
| UPC | 078477240977 |
| Country Of Origin | MX |
| Amperage Rating | 20 A |
| Color | Ivory |
| Dimensions | 46 in H x 1.31 in W x 13 in D |
| Enclosure | NEMA WD-1/WD-6 |
| Material | Thermoplastic |
| Type | Grounding |
| Voltage Rating | 120/277 V AC |
| Alternative Part Number | 9530716 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 2 years Limited |
| Standards Approvals | ANSI C73 | CSA C22.2 No. 111 File No. 152105 | NOM 057 | Federal Specification WS896E File No. E7458 | UL 20 | UL94 V-2 Flammability Rating |
| Application | Commercial Applications |
| Actuator | Toggle |
| Contact Rating | 1 hp at 120 V AC, 2 hp at 240 to 277 V AC |
| Environmental Conditions | -40 to 65 deg C Operating Temperature |
| Mounting | Surface |
| Number Of Poles | 2 |
| Power Rating | 800 W, 1000 VA |
| Terminal Type | Back/Side Wire |
