Telemecanique

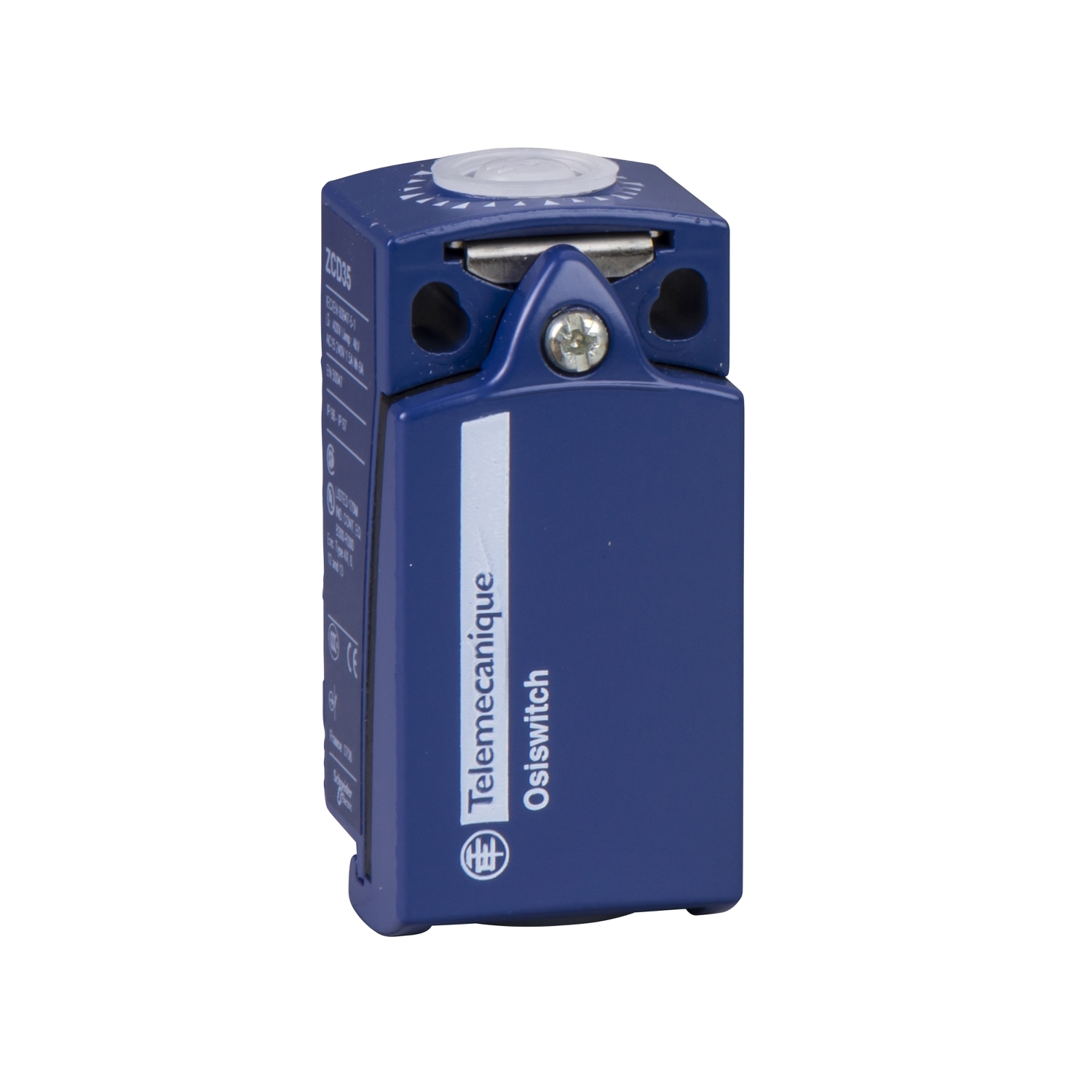

ZCD39 OsiSense XC ZCD Series Fixed Limit Switch Body, 1NO-2NC Contact, For Use With XCKD, ZCD and ZCD Series Standard Format Compact Limit Switch, 5 A at 240 V AC Contact

MFR:
Telemecanique Sensors
MFR #:
ZCD39
UPC:
785901669647
Item #:
1290597

Availability

Location Available Qty
Available Available to Order
$99.11 each

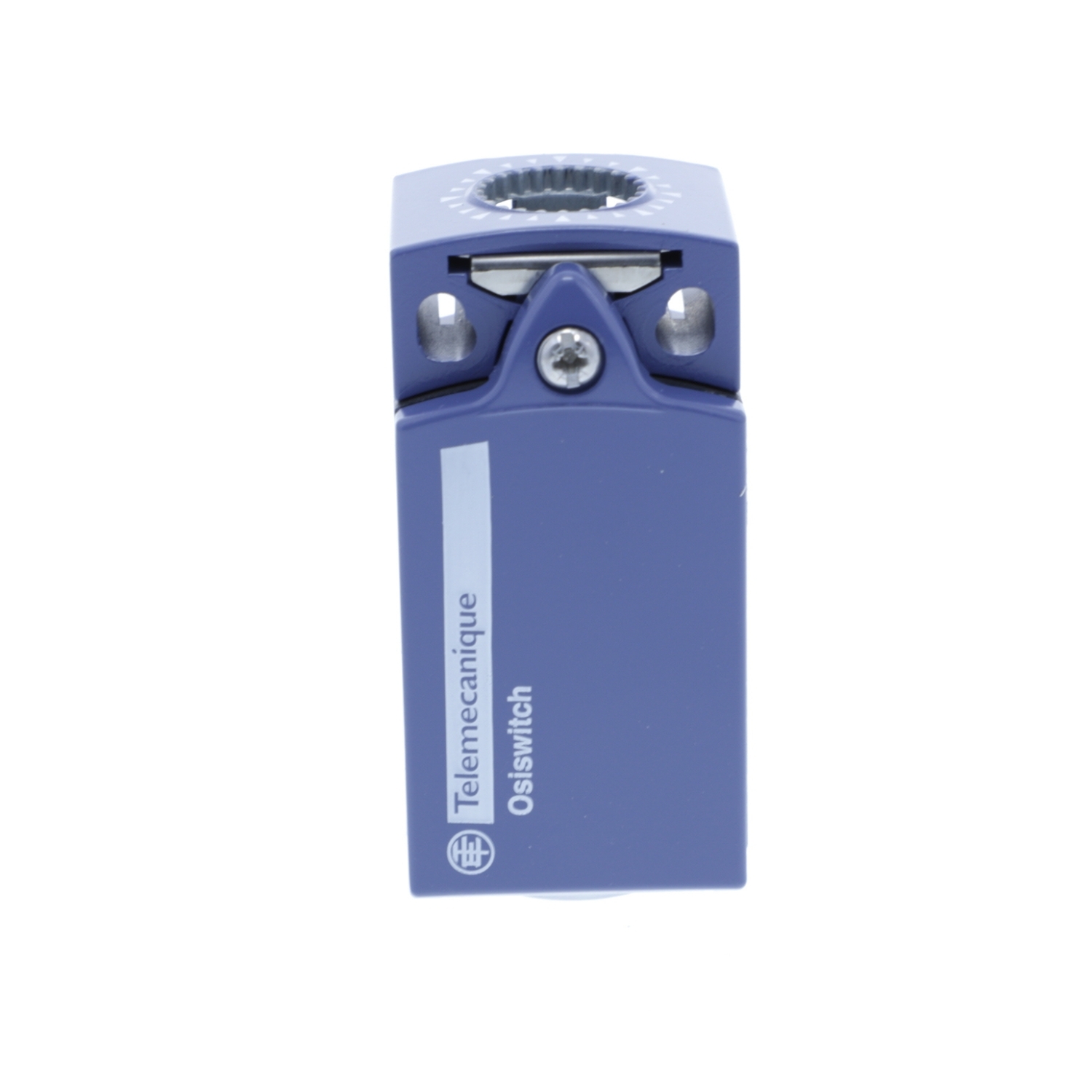

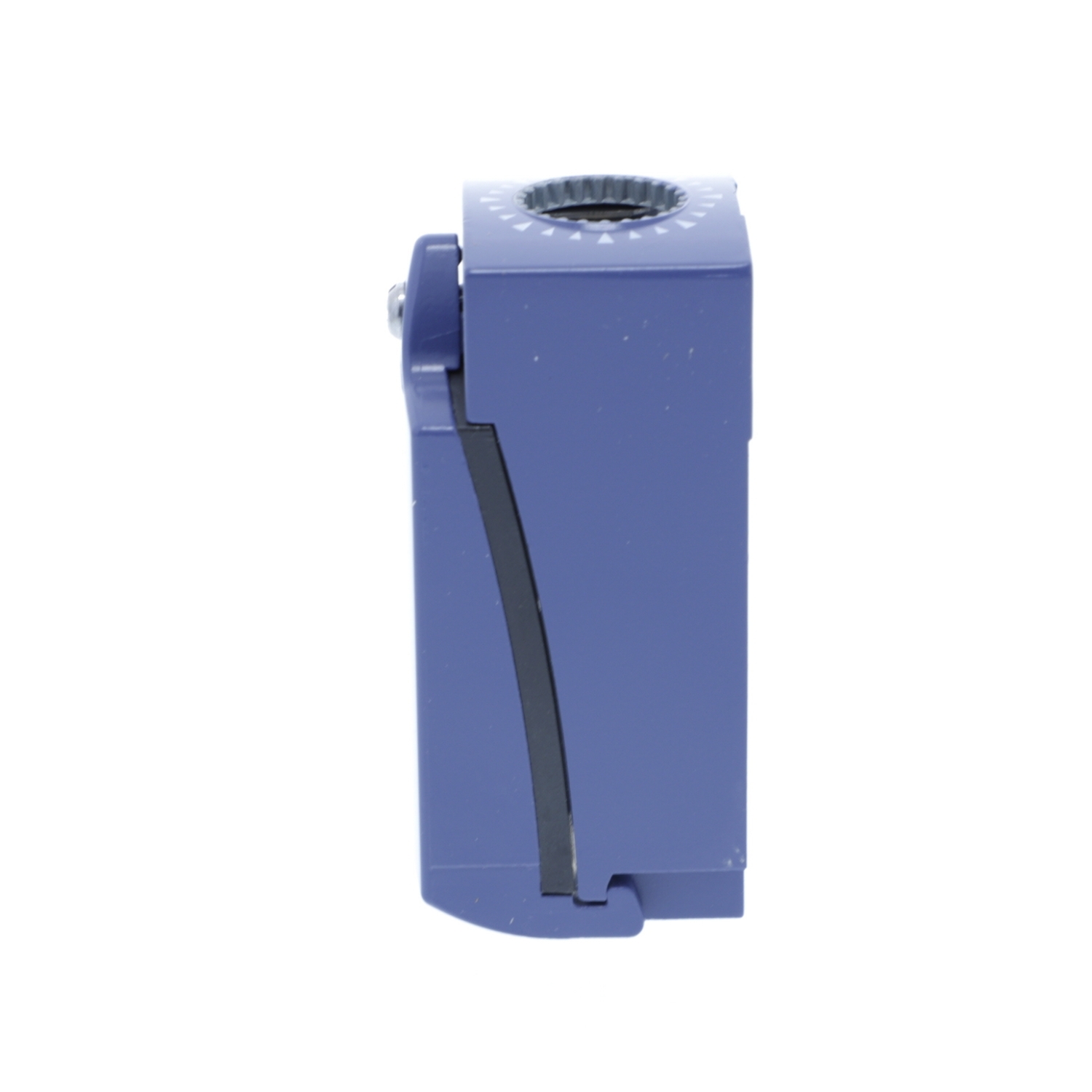

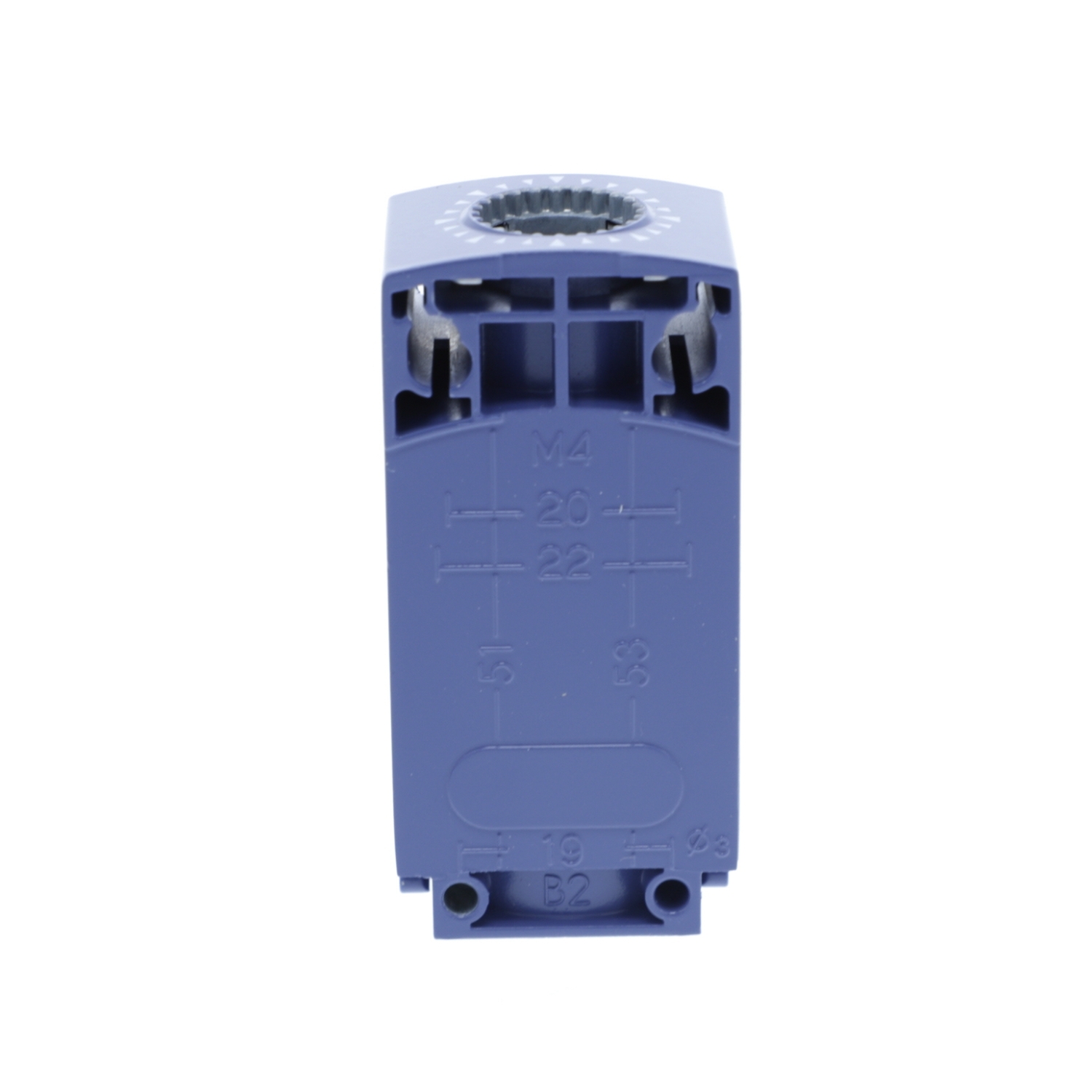

This ZCD body/contact assembly has standard contacts and a Zamak body. It has 1 x NO + 2 x NC snap action contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCD39
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Snap action
Application XCKD
Connection Screw-clamp terminals 1 x 0.34...2 x 0.75 mm²
Contact Configuration 2 NC + 1 NO
Number of Poles 3
Operating Cycles 5000000 CYCLES, DC-13 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IEC, UL LISTED, CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879110&lang=en-us
UPC 785901669647
GTIN 03389110185461
Item Type Limit switch body
Size 1.18
Operating Temperature -25-70 A Degrees C
Voltage Rating 300 V (CSA, UL) 400 V (IEC)
