Telemecanique

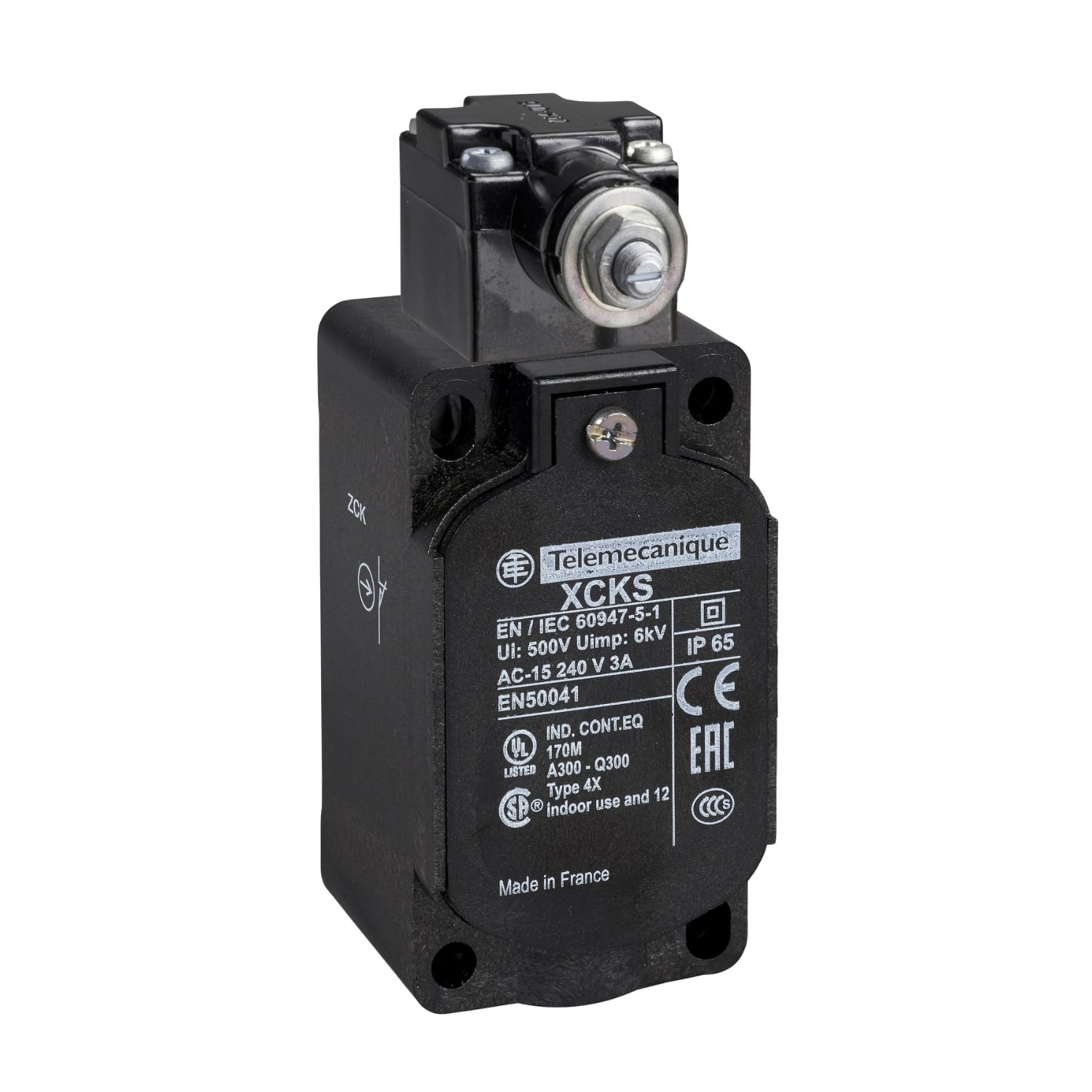

ZCKS404 OsiSense XC Fixed Limit Switch Body With Spring Return Rotary Head, 2CO Contact, For Use With XCKS, ZCKS and ZCKS Series Standard Format Compact Limit Switch, 3 A at 240 V AC Contact, IP65 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCKS404
UPC:
785901702719
Item #:
1290516

Availability

Location Available Qty
Available Available to Order
$198.90 each

Limit switch body with spring return rotary head, Limit switches XC Standard, ZCKS, w/o op. lever, 2C/O, snap action, Pg13.5

Manuals and Documentation
Catalog Number ZCKS404
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Snap action;From left and right
Amperage Rating 10
Application XCKS
Connection Screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
Contact Configuration 2 C/O
Enclosure IP65
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 13 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 9 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IK03,IP65
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879990&lang=en-us
UPC 785901702719
GTIN 03389110599688
Item Type Limit switch body with spring return rotary head
Size 1.42
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -25-70 A Degrees C STANDARD ENVIRONMENT
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
