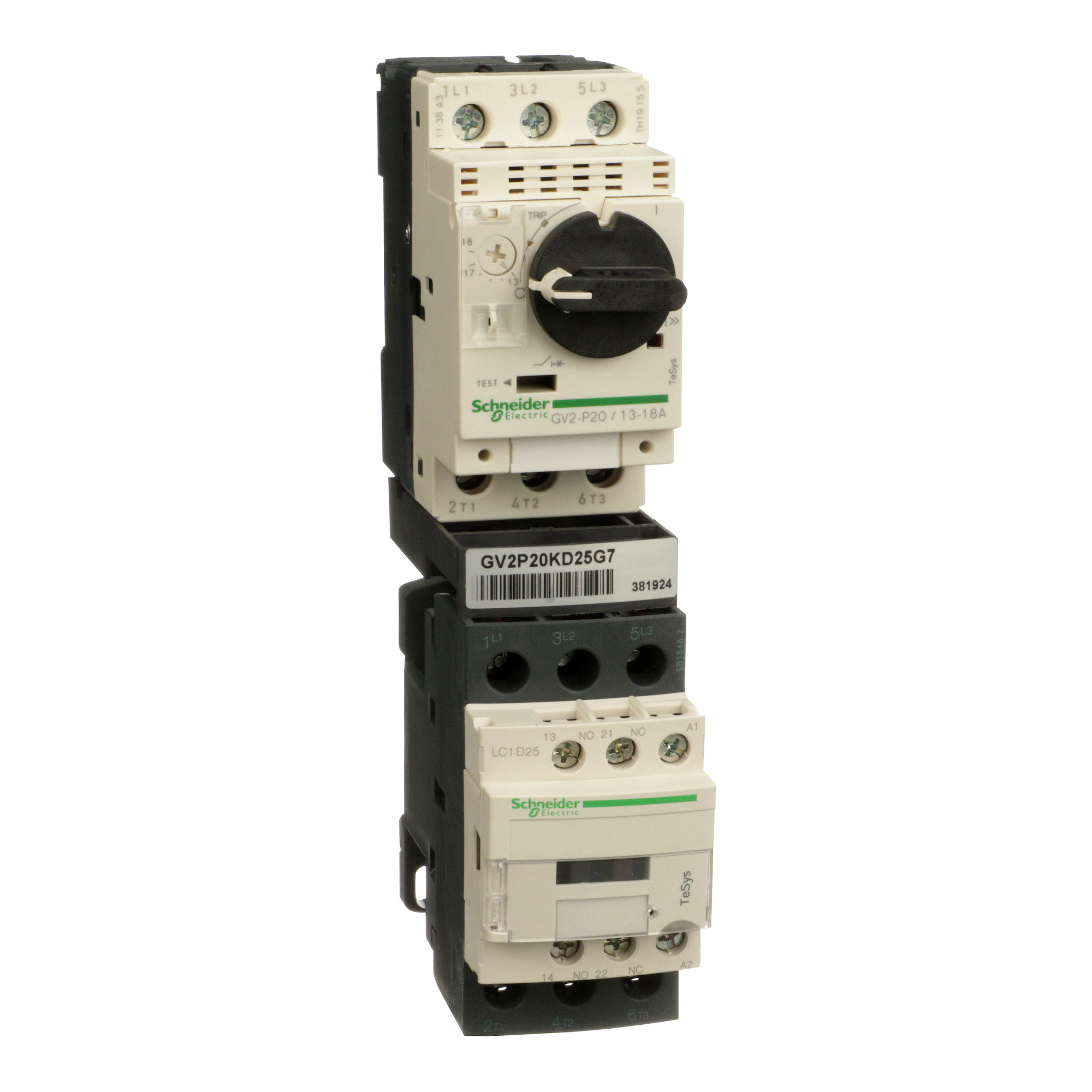

GV2P20KD25G7 TeSys Motor Starter With Safety Cover, 120 VAC V Coil, Direct On-Line Contactor Action, 3 Poles, IP20 Enclosure

MFR:
Schneider Electric
MFR #:
GV2P20KD25G7
Item #:
1290055

Availability

Location Available Qty
Available Available to Order

TeSys GV manual self protected combination starters meet the requirements of UL 508 Type F, see UL File E164871. Manual motor starter consists of a GV2P20 motor starter protector and a LC1D25G7 IEC contactor assembled together into one device. The GV2P20 high performance manual starter with a rotary handle offers a high withstand rating and visible trip indication. The GV2P20 provides trip on overload, short circuit, undervoltage, or shunt trip. It has a 13.0 to 18.0 A thermal setting. The LC1D09B7 IEC contactor is rated 9 amperes and has a 24 VAC 50/60 Hz coil.

Manuals and Documentation
Catalog Number GV2P20KD25G7
Manufacturer Schneider Electric
Brand Square D
Country of Origin Unknown
Made in USA No
Application Motor control;resistive load
Coil Voltage 120 V AC 50/60 Hz
Connection Control circuit screw clamp terminals 1 1-4 mm²flexible without cable end;control circuit screw clamp terminals 2 1-4 mm²flexible without cable end;control circuit screw clamp terminals 1 1-4 mm²flexible with cable end;control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end;control circuit screw clamp terminals 1 1-4 mm²solid without cable end;control circuit screw clamp terminals 2 1-4 mm²solid without cable end;power circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end;power circuit screw clamp terminals 2 2.5-10 mm²flexible without cable end;power circuit screw clamp terminals 1 1-10 mm²flexible with cable end;power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end;power circuit screw clamp terminals 1 1.5-10 mm²solid without cable end;power circuit screw clamp terminals 2 2.5-10 mm²solid without cable end; screw clamp terminals 2 1-6 mm² solid; screw clamp terminals 2 1.5-6 mm² flexible without cable end; screw clamp terminals 2 1-4 mm² flexible with cable end
Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
Mounting Din Rail
Operating Cycles 25...400 Hz
Special Features Without built-in suppressor module
Standard UL;BV;RINA;GOST;DNV;LROS (Lloyds register of shipping);CCC;GL;CSA;CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=467172370&lang=en-us
GTIN 03606486287989
Item Type Motor starter;Direct on-line contactor
