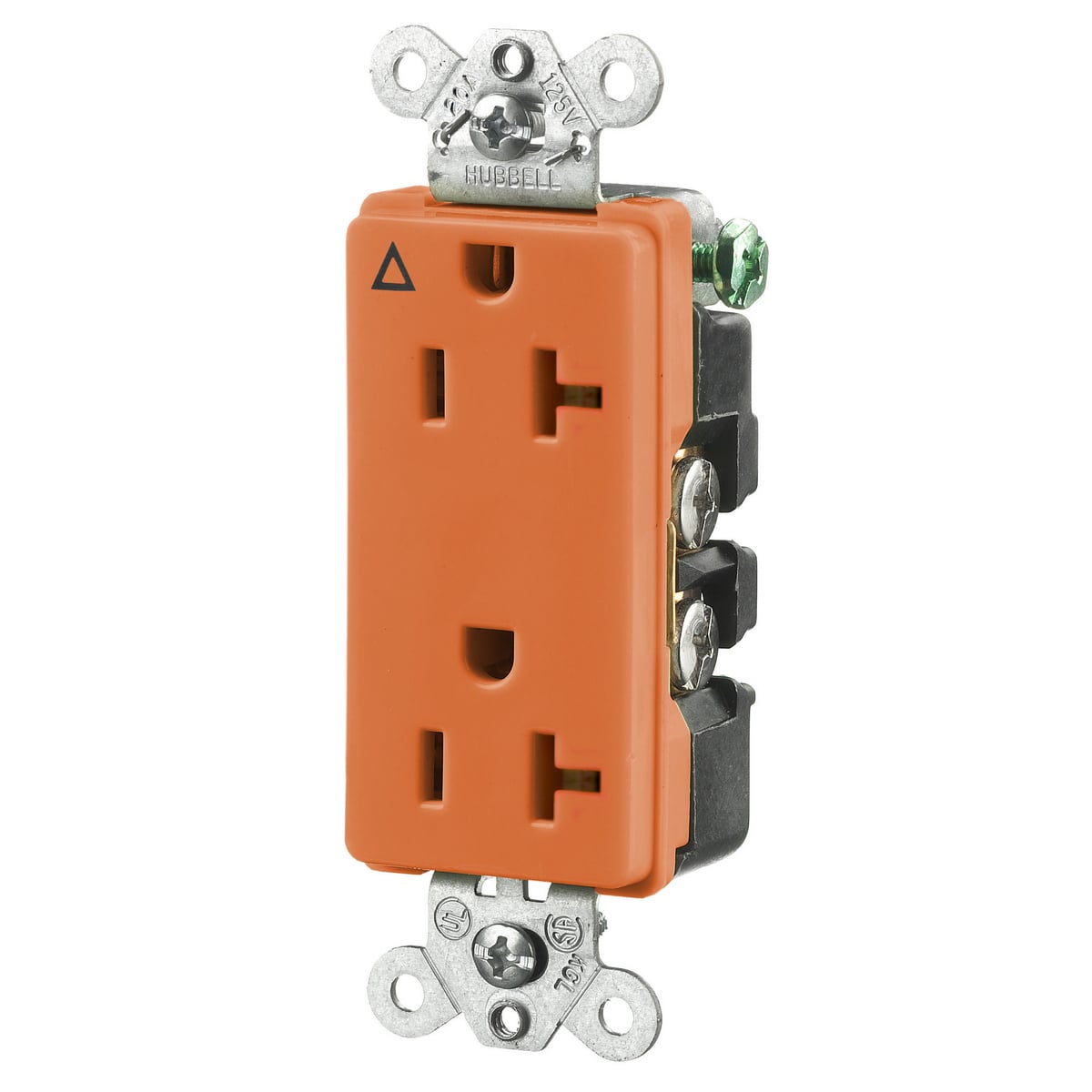

IG2162 1-Phase Decorator Duplex Heavy Duty Isolated Ground Standard Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Orange
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- IG2162
- UPC:
- 783585845135
- Item #:
- 128988
IG2162 1-Phase Decorator Duplex Heavy Duty Isolated Ground Standard Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Orange
- MFR #:
- IG2162
- UPC:
- 783585845135
- Item #:
- 128988
In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than everHubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
Manuals and Documentation
| Catalog Number | IG2162 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 20 |
| Application | Heavy Duty Style Line Decorator Duplex |
| Color | Orange |
| Connection | Back and Side Wired Screw Terminals |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Isolated Ground |
| Standard | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| UPC | 783585845135 |
| GTIN | 00783585845135 |
| Item Type | Standard Duplex |
| Size | 3.28 in x 1.36 in x 1.03 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 125 |
| Wattage | 2,500 W |
| Wire Size | #12 AWG to #10 AWG |
