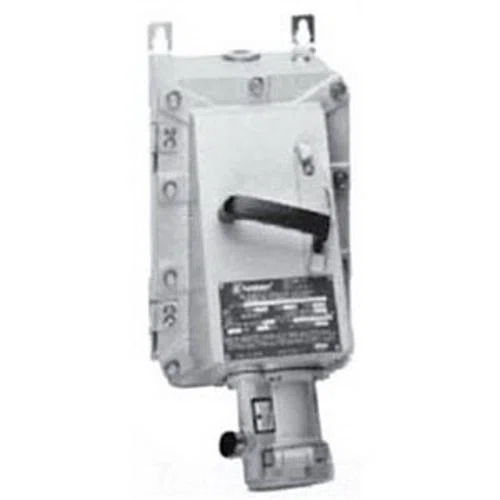

EBRH1034DS EBRH 3-Phase Dust-Ignitionproof Explosionproof Grounding Style 2 Explosionproof Receptacle With Disconnect Switch and Mounting Box, 600 V AC, 100 A, 4 Poles, 3 Wires
- MFR:
- Emerson Electric
- MFR #:
- EBRH1034DS
- UPC:
- 781381513340
- Item #:
- 128966
EBRH1034DS EBRH 3-Phase Dust-Ignitionproof Explosionproof Grounding Style 2 Explosionproof Receptacle With Disconnect Switch and Mounting Box, 600 V AC, 100 A, 4 Poles, 3 Wires
- MFR #:
- EBRH1034DS
- UPC:
- 781381513340
- Item #:
- 128966
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$10,714.15
each
EBR 30, 60, 100 and 150 A Series Receptacles incorporate your choice of an interlocked circuit breaker or disconnect switch along with explosionproof and dust-ignitionproof protection. The interlocked circuit breaker provides connect and disconnect operating functions as well as short circuit and thermal time delay overload protection, safeguarding valuable equipment against expensive damage. The interlocked disconnect switch provides safe connection and disconnection.
Manuals and Documentation
Features
- Shell and extra pole grounding style 2
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied
- Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Contacts have beryllium copper wire springs, plug mechanical cable clamps prevent strain on cables they meet or exceed UL strain relief pull out requirements
- Neoprene bushing compressed by cable collar prevents entrance of water
- 1-1/2 NPT tapped conduit openings one top to bottom
- Interlocked disconnect switch provides safe connect and disconnect operation
- Fiberglass reinforced polyester insulating blocks
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
| Manufacturer Part Number | EBRH1034DS |
| Brand | Appleton® |
| Manufacturer | Emerson Electric |
| UPC | 781381513340 |
| Country Of Origin | MX |
| Amperage Rating | 100 A |
| Horsepower | 75 hp |
| Material | Copper-Free Aluminum |
| Series | EBRH |
| Type | 3-Phase Dust-Ignitionproof Explosionproof Grounding Style 2 |
| Voltage Rating | 600 V AC |
| Alternative Part Number | 8176945 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | Limited |
| Standards Approvals | Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E79132, E10784, E313360 |
| Application | ACP Plugs, Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps Applications |
| Nema Rating | NEMA 3/3R/4/4X/7CD/9FG |
| Number Of Poles | 4 |
| Number Of Wires | 3 |
| Terminal Type | Pressure Wire |
